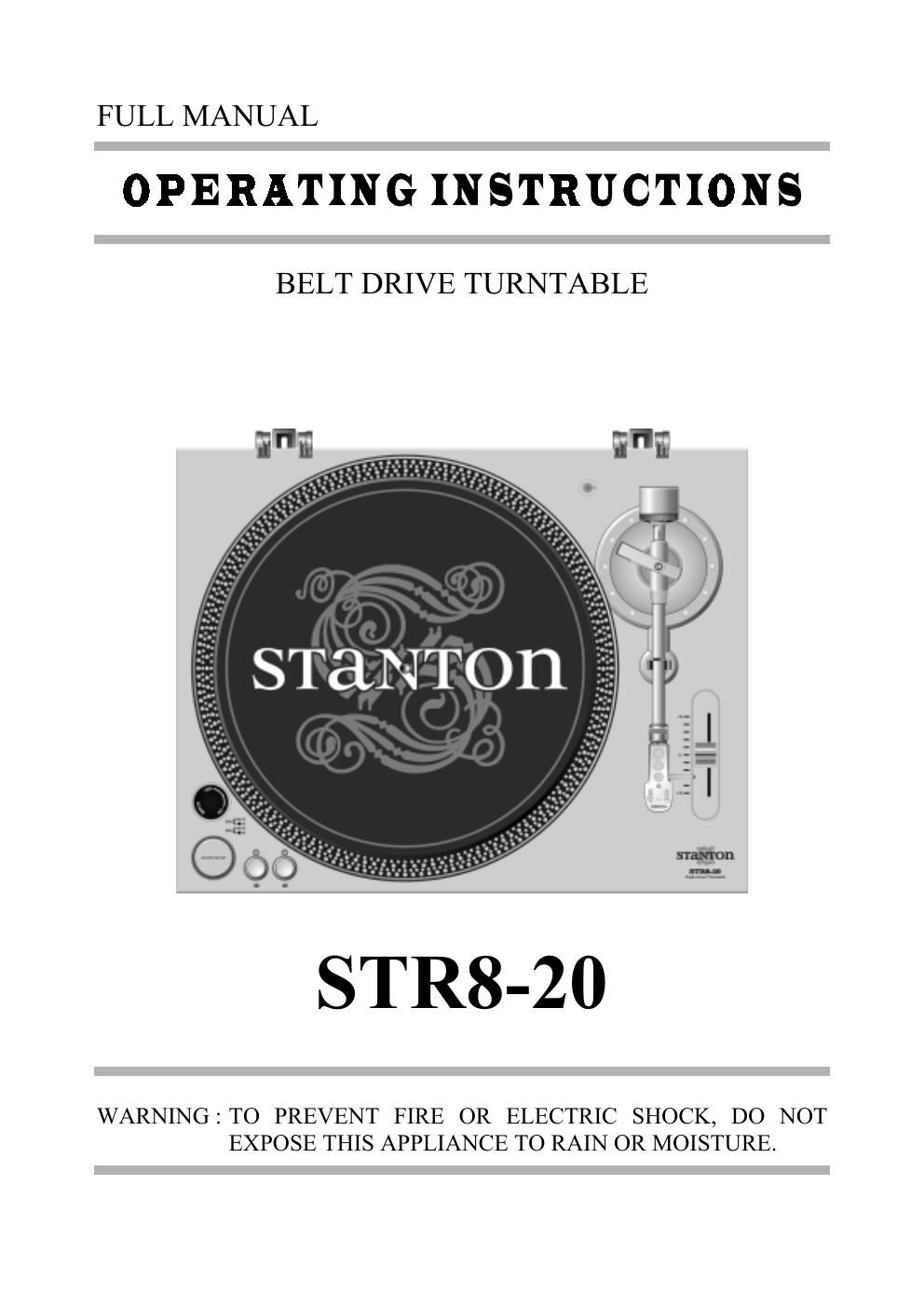

stanton str 820 owners manual

Extracted text from stanton str 820 owners manual (Ocr-read)


Page 1

N AM E OF PARTS 1) Strobe Dots 2) Slip Mat 3) Center Spindle 4) Power Switch 5) Start/Stop Button 6) 33 Button 7) 45 Button 8) Headshell 9) Pitch Control Slider 10) Tonearm 11) Arm Rest 12) Counterweight 13) Position For Preparing Cartridge B EFORE USE *Check following parts included in the package with the main unit: 1) Turntable platter 2) Slip mat 3) 45-rpm adaptor 4) Counterweight 5) Headshell 6) Operating instructions 7) RCA Cables with ground wire 8) Cartridge *Notes: 1) Do not connect the AC power plug before assembly has been completed. 2) Before you turn on the power, verify the voltage setting is correct for your country. 3) Read this manual carefully before using the unit and be sure to store the manual in a safe place for future reference.

Page 2

ASSEMBLY 1. Remove the main unit with the packing from the box and take off the packing. 2. Insert the turntable platter onto the center spindle. 3. Set the slip mat on the platter. 4. Hold the ribbon tape which is attached to the belt and loop the belt over the motor pulley. Be sure it does not twist. Ribbon tapeDriving roller Drive belt 5. Insert the headshell into the front end of the tonearm, then turn the lock nut clockwise with the headshell firmly held horizontally. 6. Slide counterweight onto tonearm. Twist it lightly and it will screw onto the rear shaft of the tonearm. 7. Adjustment of horizontal zero (0) balance and stylus pressure: (a) Remove the stylus protector, do not touch the stylus tip during the adjustment. (d) Release the arm clamp and lift the tonearm from the arm rest to free it. (c) Rotate the counterweight until the tonearm is approximately balanced horizontally (floats freely). (d) Refasten the tonearm with the arm clamp. (e) Hold the counterweight stationary with one hand and rotate only the stylus-pressure ring to bring the number "0" of the ring into alignment with the center line on the tonearm rear shaft. (f) Rotate the counterweight clockwise until the scale shows the value corresponding to the pressure of the used stylus. The average stylus pressure of the cartridge body is 2g . If you use a non-Stanton cartridge, please follow that manufacturers instructions. 8. Install the dust cover to the main unit. PLACEMENT - Do not place the unit in a location where it will be exposed to direct sunlight or near a heating appliance. - Do not place the unit in a location where there is high humidity or a lot of dust. - Cartridge may pick up slight sound pressures or vibrations from the speakers coming along the floor or through the air resulting in feedback. Find a location which is very stable and vibration free. - The legs have functions for adjusting the height of the unit itself. Adjust the legs to stabilize the main body horizontally. CONNECTIONS 1. Connect the power cord to the auxiliary power outlet on the rear panel of your amplifier or receiver or to a household AC outlet. 2. Connect the unit output terminals to the PHONO jack of your amplifier or receiver. Output terminals Amplifier(Receiver) L (White) >> L Channel R (Red) >> R Channel GND (Spade) >> GND NOTE: Be sure to connect the ground terminal firmly to the amplifier or receiver. If this connection is not made or is loose, a power source "HUM" will result.
