stanton sk 6 owners manual

Extracted text from stanton sk 6 owners manual (Ocr-read)

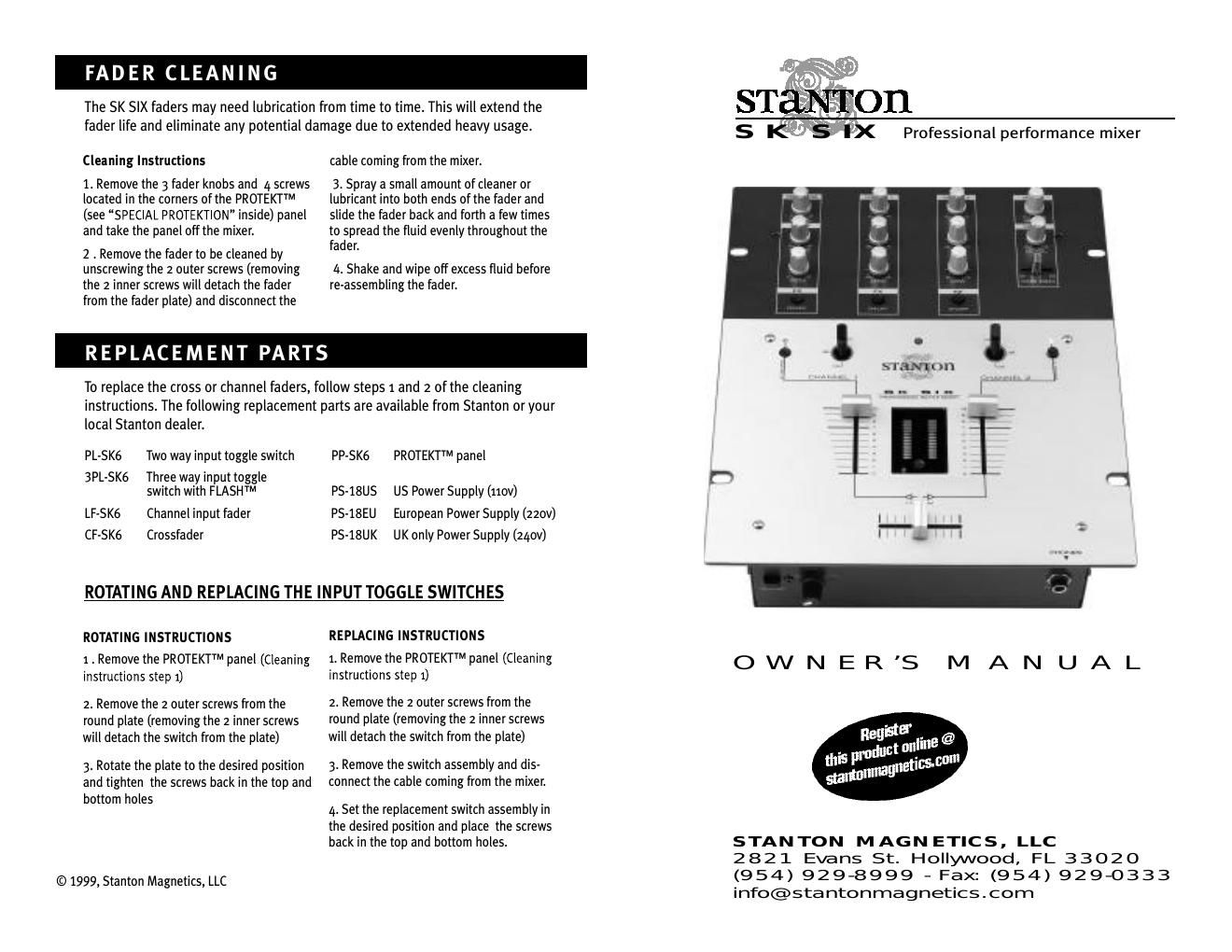

Page 1

PLEASE READ CAREFULLY BEFORE USE OF THIS PRODUCTFA I LU R ETO FO LLOWT H EI NST RU C TI O NSP R I N TE DB E LOWM AY VO I DWA R R A N TY¥ Follow all security advice printed on your mixer ¥When removing the unit's AC plug from the power source, grasp and pull the plug, NEVER the cord itself! ¥ Avoid placing your mixer near heat sources, such as power amplifiers. ¥When in use, place your mixer on a stable surface, away from vibration. Always use care when carrying your mixer. Impact, or heavy vibration may compromise the unit's mechanical integrity.The manufacturer is not responsible for damage resulting from an impact, or misuse. ¥When in use, place your mixer away from sources of hum or noise, such as transformers, or electric motors. ¥ To prevent overheating, always provide your mixer with adequate ventilation air space. ¥ Avoid stepping on your mixer's AC cord. Repeated compression of the cord may lead to electrical shorting. ¥ To avoid damage due to AC voltage peaks, always disconnect your mixer from the power source during electrical storms. ¥ Your mixer contains no user-serviceable parts. The manufacturer is not responsible for any damage or personal injury resulting from unauthorized user-servicing or modifications. In addition, the warranty will be void if any unauthorized service by the user is detected. Always return you mixer to an authorized Stanton dealer for servicing.Thank you for making Stanton your first choice in professional DJ mixers. This new, innovative family of mixers has been developed with input from the profes- sional DJ community, bringing to the marketplace a previously unavailable, afford- able combination of user-friendly, functional design, rugged construction, and pro- fessional quality features. Stanton and your authorized Stanton dealer are dedicated to your complete satisfac- tion by offering benchmark service and support throughout the long life of your Stanton product. Again, we appreciate your patronage, and look forward to many years of making music together. Problem Excessive hum when using phono source. Low frequency hum while operating source unit.Cause Poor ground connection. Loose cartridge/headshell connection. Poor AC source ground. Loose input/output connec- tion. Shorted cable.Solution Properly connect turntable ground wire to mixer ground terminal. Check cartridge connection to headshell. Check head- shell connection to tonearm. Properly ground the AC source. Check all input and output connections for s e c u re fit. Isolate and re p l a c e the damaged cable. Pro g ram volume canÕt be adjusted with master vo l u m e c o n t ro l . No powe r.Amplifier or outboard gear connected to the re c o rd out- put. I m p roperly connected AC cord or power line source not on.Connect amplifier or outboard gear to master output. Properly connect AC cord to AC power source. Turn powe r on. The amplifier is turned up, but there is no signal. No signal in headphones.Faulty output connections Improper level adjustment. Improper connection. Improper level or cue mix settings.Properly connect amplifier, or outboard gear to mixer. Properly set crossfader, channel faders, gain con- trols, and input selector tog- gles. Check headphone connec- tion to mixer. Tighten if nec- essary. Adjust headphone level and cue mix to the proper level and channel settings. T RO U B LE S H O OTI N G

Page 2

1.Mic level control: Controls the overall microphone output level. 2.Send: Controls the level of the effect send output. this is used to set the level of the signal going to the outbpard effects processor or stomp box. 3. Return:Controls the level of the effect return input. This is used to control the level of the processed signal going back into themixer 4. FX: Effect ON/OFF for each channel, MIC, and cue. 5. Gain: Controls the input level of each channel. 6.EQ: Individual controls for low and high frequency equalization with (+9/-26 dB) Any changes made to EQ settings will change the overall output level. 7.Master level control:Controls the overall signal output level. 8.Headphone level control: Controls the overall headphone output level. It is recom- mended headphones with an impedance rating of 200 ohms or less be used for maxi- mum volume. 9. Cue pan: Fades the headphone output between channels 1 and 2, effectively allowing the user to preview a mix. 10.Power indicator: Blue LED indicates whether mixer is ON or OFF. 11.Input selector switches: Selects phono or line inputs. FLASHª position allows users to quickly trigger the phono input. 12.Input Fader Reverse: Reverses the direction of each respective input channel fader. Includes bi-color LED to indicate the status of the reverse function. When LED is green, the fader is normal. When LED is red, the fader direction is reversed. 13. Channel fader: Controls the input channel level. 14.Headphone mute: Mutes the headphones without having to change its level. 15. Input Level Meter:Monitors each channelÕs input level with peak hold function 16. Crossfader Reverse LED:Bi-color LED indicates the status of the crossfader reverse- function. When LED is green, the crossfader is normal. When LED is red, the crossfader direction is reversed. 17. Crossfader:Fades the master output between channels 1 and 2. 18.Headphone output: Connection for 1/4 inch headphone. Recommended headphone impedance is 32-200 ohms for maximum volume. 19.Crossfader Reverse: Reverses the direction of the crossfader. 20. Crossfader Curve adjustment: Adjusts the shape of the crossfader curve from a quick cut for scratching and cutting to a longer fade for mixing. 20. Send & return connections: The send output is used to connect the mixer to the line input of your effects processor or sampler.The return input is used to feed the sgnalD E S C R I P TI O N O F FU N C TI O NSS P E C I A LP RO TE K TI O N Your SK SIX comes with a special PROTEKTª aluminum panel designed to make the surface of the mixer is as smooth as possible while still enablingyou to field-replace key components. The PROTEKTª panel covers all screwsthat may get in the way ofyour performance. You can still easily remove the front panel to replace any of the modular parts whichare subject to wear and tear: crossfader, input faders and input toggle switches. The PROTEKTª panel is also reversible. If you happen to scratch or blemish the front side, just flip-it over since it is screened on both sides!
