stanton sa 12 owners manual

Extracted text from stanton sa 12 owners manual (Ocr-read)

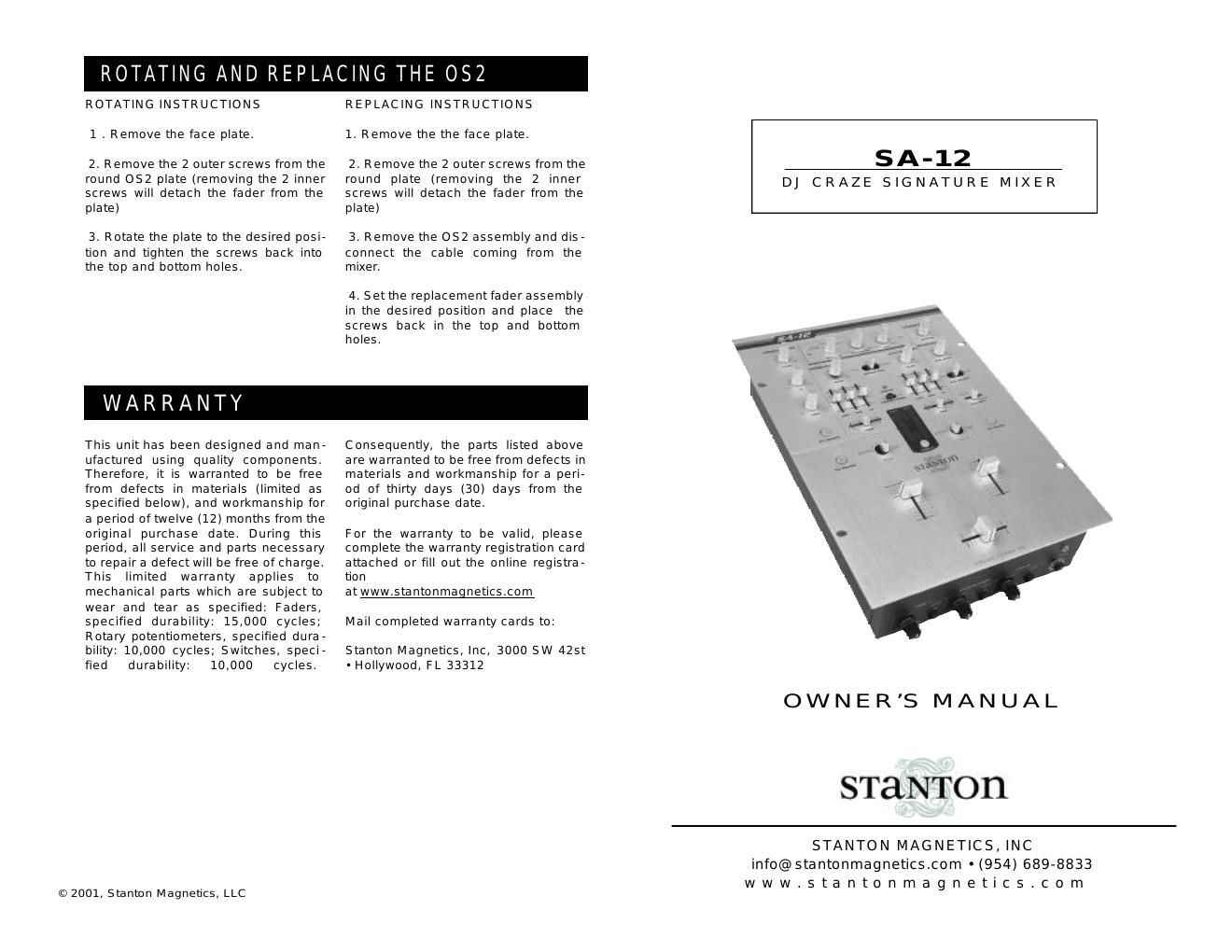

Page 1

PLEASE READ CAREFULLY BEFORE USE FAILURE TOFOLLOW THEINSTRUCTIONS PRINTEDBELOWMAYVOID WARRANTY- Follow all security advice printed on your mixer - When removing the unit's AC plug from the power source, grasp and p\ ull the plug, NEVER the cord itself! - Avoid placing your mixer near heat sources, such as power amplifier\ s. - When in use, place your mixer on a stable surface, away from vibrat\ ion. Always use care when carrying your mixer. Impact, or heavy vibration may\ compromise the unit's mechanical integrity. The manufacturer is not responsible for damage resulting from an impact, or misuse. - When in use, place your mixer away from sources of hum or noise, su\ ch as transformers, or electric motors. - To prevent overheating, always provide your mixer with adequate ventilation air space. - Avoid stepping on your mixer's AC cord. Repeated compression of the\ cord may lead to electrical shorting. - To avoid damage due to AC voltage peaks, always disconnect your mix\ er from the power source during electrical storms. If possible connect mixe\ r to a surge protector. - Your mixer contains no user-serviceable parts. The manufacturer is \ not responsible for any damage or personal injury resulting from unauthorize\ d user-servicing or modifications. In addition, the warranty will be void \ if any unauthorized service by the user is detected. Always return your mixer t\ o an authorized Stanton dealer for servicing. Thank you for making Stanton your first choice in professional DJ mixers\ . This innovative family of mixers has been developed with input from the\ professional DJ community, bringing to the marketplace a previously unavailable, affordable combination of user-friendly, functional design,\ rugged construction, and professional quality features. Stanton and your authorized Stanton dealer are dedicated to your complet\ e satisfaction by offering benchmark service and support throughout the lo\ ng life of your Stanton product. Again, we appreciate your patronage, and look forward to many years of making music together. TECHNICAL SPECIFICATIONS Line inputs: 2 (RCA), -10dBV @ <10Kohm Phono inputs: 2 (RCA), -50dBV @ <10Kohm DJ mic input: 1 (1/4 inch), 2.45 mV / 3K ohm Master output: 2 (1/4 TRS Balanced/RCA unbalanced), Balanced 4dBu into 10Kohm Unbalanced: -10dBV into 10Kohm; Headphone output:1 (1/4 inch), 1 Minijack (1/8 inch) 32 - 200 ohms recommended Frequency Response: 20 Hz - 20 kHz, +0 dB Tone Control : + 9 / Kill dB (Hi, Mid, Low) Mic Tone: Hi/Lo +/-10 dB Dynamic Range: line 90dB, phono 85dB S/N Ratio: 75dB Phono EIN: 105 dB Dimension (LxWxD): 14.9" x 10.5" x 4.3" 379mm x 266.5mm x 109mm Weight: 8 lbs (3.6 Kg) REPLACEMENT PARTS To replace the cross or channel faders, follow steps 1 and 2 of the cleaning instructions. The following replacement parts are available from Stanton or your local Stanton dealer. LF-SK2 Channel input fader CF-PG110 Penny & Giles CF-F2 Focus Fader V2 OS2 Optical Scratch switch phono/line selector SHP0531 (top) SHP0532 (btm) PROTEKT-„˘ panel PS-SA12US US Power Supply (110v) PS-SA12EU European Power Supply (220v) PS-SA12UK UK only Power Supply (240v)

Page 2

SA-12 FUNCTIONS & FEATURES - Focus Fader V2 Digital Optical Crossfader (Patent Pending) with curve adjustment and reverse switch. - OS2 (Patent Pending) Optical Scratch switches with lock feature - Removable effects module (Patent Pending) . SA-12 includes MOD1: Pitch Shifter, Flanger, and Delay; with Parameter and Mix controls. - Effects fully assignable - Foot pedal output to control effects. - 3 position cue select (Patent Pending) Pre CF Cue / Post CF Cue / Master. - 2 line, 2 phono, and 1 mic/line (switch- able) inputs. - Program Reverse.- 3 band EQ with complete kill, Gain, and Pan control per channel. - Program Faders reverse switches & curve adjustments. - Headphone mute. - Cue Pan Fader - Dual headphone inputs (1/4 and 1/8 mini-jack). - TRS balanced Master output. - Mono-Stereo Switch. - Output Trim control. - Quiet-Start feature to avoid pops / noise when mixer is powered on.Removable Effects Module The MOD1 removable effects module includes 3 effects: Pitch Shifter, Flanger, and Delay. All effects have adjustable parameters and levels, can be assigned (turned on / off) to all channels or master output, and can be turned ON/OFF using any standard footswitch via the remote Start output. OS2 Optical Scratch Switch These ultra quiet, non friction phono/line switches allow you to trans- form without the clicking or static noise found in other line switches. Now including a special feature that locks the last position of the switch.3 position Cue Select This switch allows you to set your cue source to PFL/Pre -crossfader, PFL/Post-crossfader, or Master. This unique PFL/Post-crossfader features allows you to practice and cue your scratches using the crossfader (instead of the cue pan fader) during a live show. Mic/Line Channel The SA-12s Mic/Line channel features an input selector switch activating a 3rd line input (RCA) or a standard micro- phone input, both controlled by a 2- band EQ with gain adjustment. This can also be used as a "session in" with volume control for linking additional mixers. Its only the 3x champion, DJ Craze signature mixer! This battle mixer has the all the quality of a club mixer and meets all the requirements of today's Turntablist. After years in the making the ultimate Scratch DJ mixer is here and ready for bat- tle. FEATURES: remove the slider assembly (C), ensuring that the wiper contacts (D) are not damaged as this will affect the operation of the fader. Clean the slid- er assembly by gently wiping the wiper contacts and slider bearings (E) using a tissue or cotton bud. If slider bearing are exessively worn, as indi- cated by exessive slider rocking then contact Stanton for replacement. 3. Remove the single upper screw on the opposite end block to remove the guide rail. Clean the guide rail (F) with a tissue or cloth, removing all traces of dirt and conta- mination. 4. Remove the fader track (G) by slowly with- drawing from the unit. Place fader track on desk or working surface with black contacts facing upwards. If necessary, the track can be washed in warm water, wiped gently then dried thoroughly using a dry cloth. Use a lint free cloth or swab to wipe the tracks and check for marks along the track. (Note: Lint free cloth should be used to avoid dust/fibres being deposited on the track). If the track appears exessively worn, or if cleaning does not improve operation, replacement may be necessary. 5.Examine the center channel of the fader body and if dirty, clean using cot- ton buds. 6. Re-assemble and lubricate the fader as follows: 6.1 ) Secure the end block and guide rail onto the fader body. 6.2 ) Insert track into the fader body. 6.3 ) Insert slider assembly onto guide rail and into the fader body. Move slider from end to end to disperse the oil evenly. Carefully wipe away any excess oil using a tissue or cloth. 6.4 ) Lubricate the guide rail by placing one drop of silicon liquid oil onto the guide rail (F). 6.5 ) Insert dust cover. 6.6 ) Insert fader track back into fader body with wires coming out open end of fader body. 6.7 ) Secure the remaining end block ensuring that the track wires (I) are not pinched between the endblock and fader casing. 7. Once assembled, move the slider from end to end to ensure operation is smooth. 8. Attach fader to fader plate. (NOTE: As noted earlier if you do not want to change positioning of fader, keep the 2 fader plate screws loose and shift the fader until it is aligned with the marks you created in step 1, then tight- en fader plate screws.) FADER CLEANING AND REPLACEMENTGI
