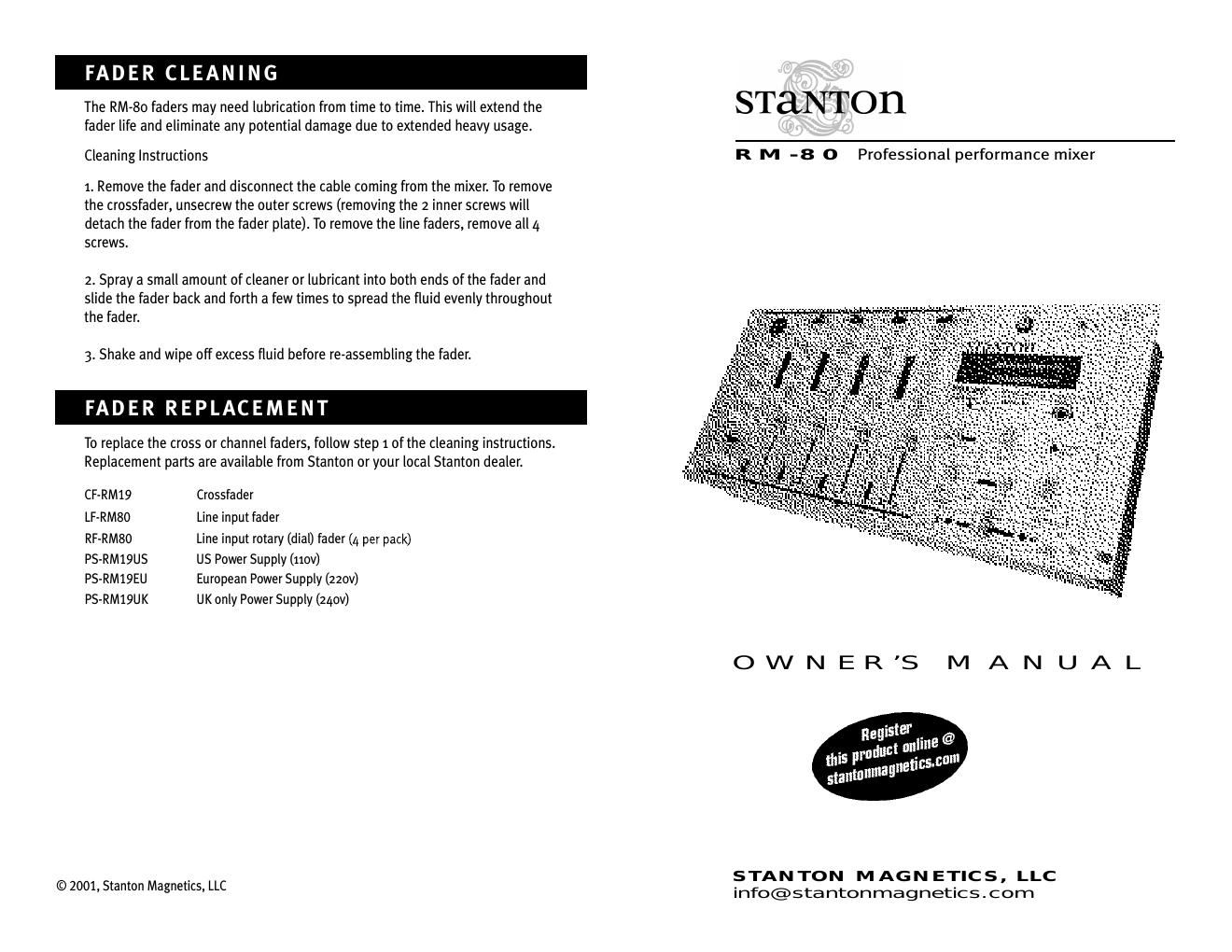

PLEASE READ CAREFULLY BEFORE USE OF THIS PRODUCTFA I LU R ETO FO LLOWT H EI NST RU C TI O NSP R I N TE DB E LOWM AY VO I DWA R R A N TY¥ Follow all security advice printed on your mixer
¥When removing the unit's AC plug from the power source, grasp and pull the
plug, NEVER the cord itself!
¥ Avoid placing your mixer near heat sources, such as power amplifiers.
¥When in use, place your mixer on a stable surface, away from vibration. Always
use care when carrying your mixer. Impact, or heavy vibration may compromise
the unit's mechanical integrity.The manufacturer is not responsible for damage
resulting from an impact, or misuse.
¥When in use, place your mixer away from sources of hum or noise, such as
transformers, or electric motors.
¥ To prevent overheating, always provide your mixer with adequate ventilation
air space.
¥ Avoid stepping on your mixer's AC cord. Repeated compression of the cord
may lead to electrical shorting.
¥ To avoid damage due to AC voltage peaks, always disconnect your mixer from
the power source during electrical storms.
¥ Your mixer contains no user-serviceable parts. The manufacturer is not
responsible for any damage or personal injury resulting from unauthorized
user-servicing or modifications. In addition, the warranty will be void if any
unauthorized service by the user is detected. Always return you mixer to an
authorized Stanton dealer for servicing.Thank you for making Stanton your first choice in professional DJ mixers.
This new, innovative family of mixers has been developed with input from the profes-
sional DJ community, bringing to the marketplace a previously unavailable, afford-
able combination of user-friendly, functional design, rugged construction, and pro-
fessional quality features.
Stanton and your authorized Stanton dealer are dedicated to your complete satisfac-
tion by offering benchmark service and support throughout the long life of your
Stanton product.
Again, we appreciate your patronage, and look forward to many years of making
music together.
Problem
Excessive hum when using
phono source.
Low frequency hum while
operating source unit.Cause
Poor ground connection.
Loose cartridge/headshell
connection.
Poor AC source ground.
Loose input/output connec-
tion. Shorted cable.Solution
Properly connect turntable
ground wire to mixer ground
terminal.
Check cartridge connection
to headshell. Check head-
shell connection to tonearm.
Properly ground the AC
source. Check all input and
output connections for
s e c u re fit. Isolate and re p l a c e
the damaged cable.
Pro g ram volume canÕt be
adjusted with master vo l u m e
c o n t ro l .
No powe r.Amplifier or outboard gear
connected to the re c o rd out-
put.
I m p roperly connected AC cord
or power line source not on.
B l own fuse.Connect amplifier or outboard
gear to master output.
Properly connect AC cord to
AC power source. Turn powe r
o n .
Re m ove the fuse cover with a
flat-bladed scre wd r i ve r.
Replace fuse with a new
500mA fuse.
The amplifier is turned up,
but there is no signal.
No signal in headphones.Faulty output connections
Improper level adjustment.
Improper connection.
Improper level or cue mix
settings.Properly connect amplifier, or
outboard gear to mixer.
Properly set crossfader,
channel faders, gain con-
trols, and input selector tog-
gles.
Check headphone connec-
tion to mixer. Tighten if nec-
essary.
Adjust headphone level and
cue mix to the proper level
and channel settings. T RO U B LE S H O OTI N G
Page 2
D E S C R I P TI O N O F FU N C TI O NS9. Headphone output: Connection for 1/4 inch headphone. Recommended headphone
impedance is 32-200 ohms for maximum volume.
10. Cue pan: Fades the headphone output between the channel(s) selected by the cue
assign switches (15) and the master one output, effectively allowing the user to pre-
view a mix.
11. Crossfader source selectors:When set to A, the selecte channel will be assigned to
the left side of the crossfader. when set to B, the selected channel will be assigned to
the right side of the crossfader.When set to BYPASS, the crossfder will be bypassed
alltoghter.
12. Crossfader: Fades the master output between the channels selected by the
Crossfader source selectors (13).
13. Beat indicators: Illuminate according to the beat of the program music. The replace-
ment of illumination varies depending on the style of music selected. This features
offers a helpful visual indicator of beat alignment.
14. Channel fader: Controls the input channel level.
15. Cue assign switch: Selects the channel to be monitored.
16. Fader Start: Turns the fader start function ON or OFF.The fader start will work with CD
players (such as StantonÕs S-Series) to start the audio from teh CD playerÕs cue point.
17. Talkover attenuation control: Sets the amount of attenuation applied to the music
output signal when switch (20) is applied and the mic is spoken into.The attenuation
is adjustable from zero to twenty six decibels.
18. Mic selector: Turns the mic on or off and activates the automatic talkover circuit.
When activated, the automatic talkover circuit reduces the music output based on the
setting of the talkover attenuation control (19).
19. Equalizer: Individual controls for low frequency, midrange, and high frequency
equalization with (+10/-10 dB) Note: Any changes made to EQ settings will change the
overall output level.
20. Microphone volume: Controls the output levels of mics 1 and 2
21. Input channel controls: Controls the input sensitivity of each channel and Hi, Mid, and
Low frequency equalization (+9/-26dB) of each channel.
22. Microphone 1 input: Combo XLR / 1/4Ó connector
23. Input selector switches: Selects phono or line input.
24. Output Level meter: Displays the overall signal level of the master output.
25. Input Level meter: Displays the input level. The input level is determined by the input
channel controls (21).
26. Audio signal inputs: Line inputs are used to connect to line level sources such as CD
players, samplers, tape players, etc. Phono inputs are used to connect to turntables.
Mic inputs connect directly to microphones. To prevent potential circuit damage, never
connect line level source to phono inputs. 1. Power switch: Selects power "ON" or "OFF".
2. BNC jack: 12V gooseneck light input
3. Mono/stereo switch: Controls mono/stereo signal output of Master 1
4. Master balance control: Controls left/right signal balance of the master output.
5. Master level control: Controls the overall signal output level of the master output.
6. Cue stereo/split switch: In "stereo" position, the pre-selected signal of switches (15)
and controls (9) and (10) will be monitored as a stereo signal in the headphones. In
"split" position, the pre-selected signal of switches (13) and controls (23) and (24)
will be monitored on one side of the headphones, and the master 1 output signal on
the other side.
7. Booth level control: Controls the signal level of the booth output.
8. Headphone level control: Controls the overall headphone output level. It is recom-
mended headphones with an impedance rating of 200 ohms or less be used for maxi-
mum volume.
