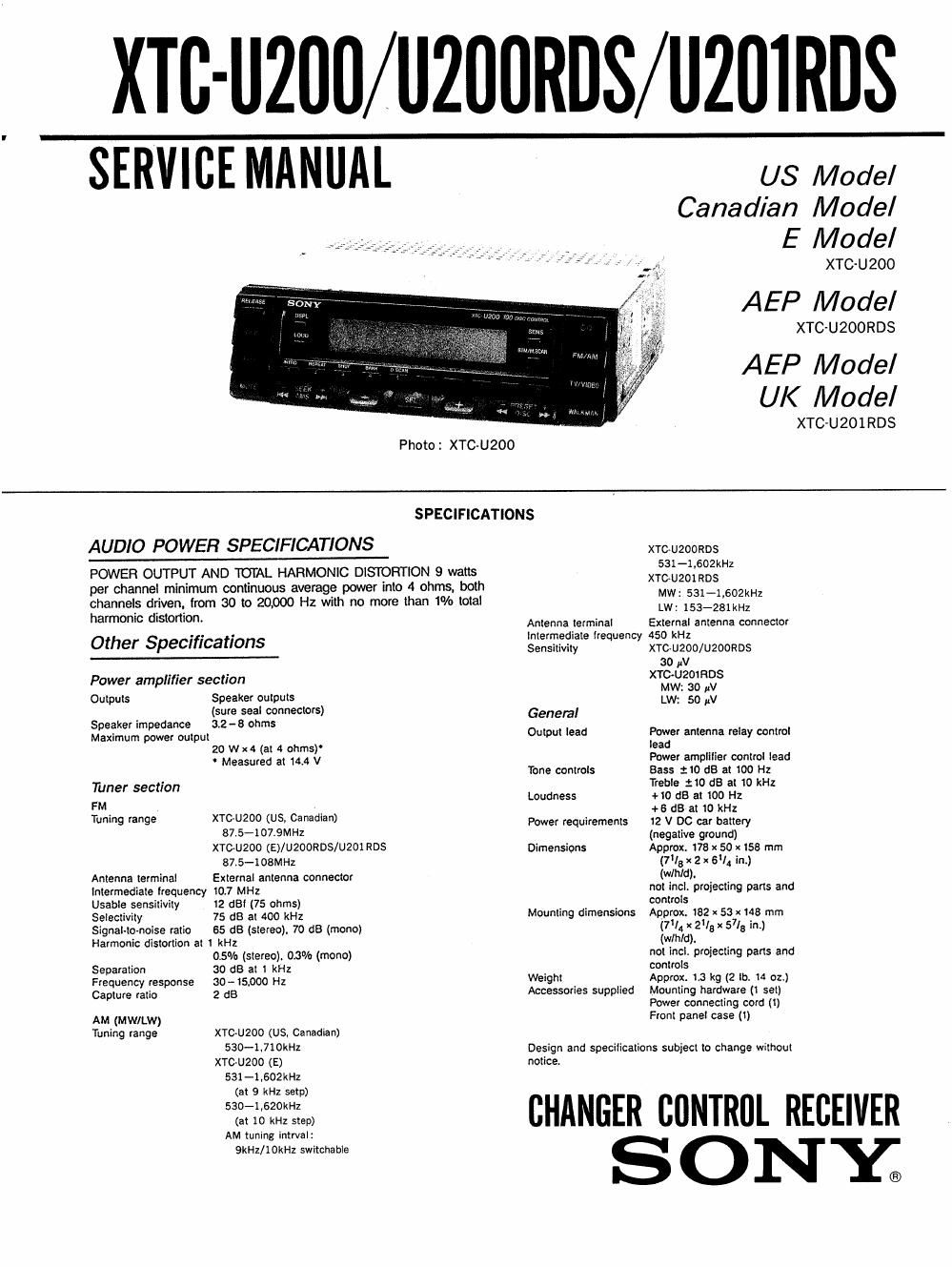

Sony xtc u 201 rds service manual

Page 2

XTC-UZOO/UZOORDS/UZOIRDS

TABLE OF CONTENTS

Section Ltle m

1. GENERAL
Conections ........................................ 3
Location and Function of Controls .................... 4
Selecting the Desired Band ............................ 5
Detaching and Attaching the Front Panel .. . . . .5
Setting the Clock .................................... 5
Searching for the Stations Automatically .............. 6
Tuning in by Adjusting the Frequency ................ 6
Memorizing the Stations Automatically ................ 7
Memorizing Only the Desired Stations ................ 7
Receiving Station Stored in the Memory .............. 7
Displaying the Name of Each Station. I ................ 8
Editing the Registered station Names .................. 8
Overview of the RDS Function ........................ 9
Station Name Display ................................ 9
Automatic Re-tuning .................................. 9
Receiving Traffic Announcement .................... 10
Listening to the CD Play ............................ 11
Locating a Desired Disc, Track or Part of a Track . . . .11
Playing in Other Modes .............................. 12
Displaying the Title of Each Disc .................... 12
Playing Selected Tracks on a Disc .................. 13
Editing a Custom File .............................. 14
Listening to Audio Equipment Connected to the
WALKMAN Jack .................................. 14
Watching TV ...................................... 15

Section M jgggg
Memorizing TV Stations Automatically .............. 15
Memorizing Only the Desired TV Stations ............ 15
Displaying the Contents of the Preset Memory
on TV Monitor ...................................... 16
Watching Video .................................... 16

Watching TV or Video While Listening to CD or
Audio Equipment Connected to WALKMAN Jack . i . .16

2. ELECTRICAL ADJUSTMENTS .................... 17

3. DIAGRAMS

3-1. Pin Descriptions .................................. 20
3-2. Block Diagram .................................. 23
3-3. Semiconductor Lead Layouts ...................... 27
3-4. Printed Wiring Boards~Main Section- iiiiiiiiii 28
3-5. Schematic Diagram-Main Section- .............. 31
3~6. Printed Wiring Boards-Front Panel Sectioni . l . .36
3-7. Schematic DiagramiFront Panel Section- ........ 38

4. EXPLODED VIEWS
4-11 Front Panel/Case ................................ 42
4-2. Main Chassis .................................... 44

5. ELECTRICAL PART LIST l. ,
Hardware List ...................................... 53
Mounting Hardware ................................ 53
