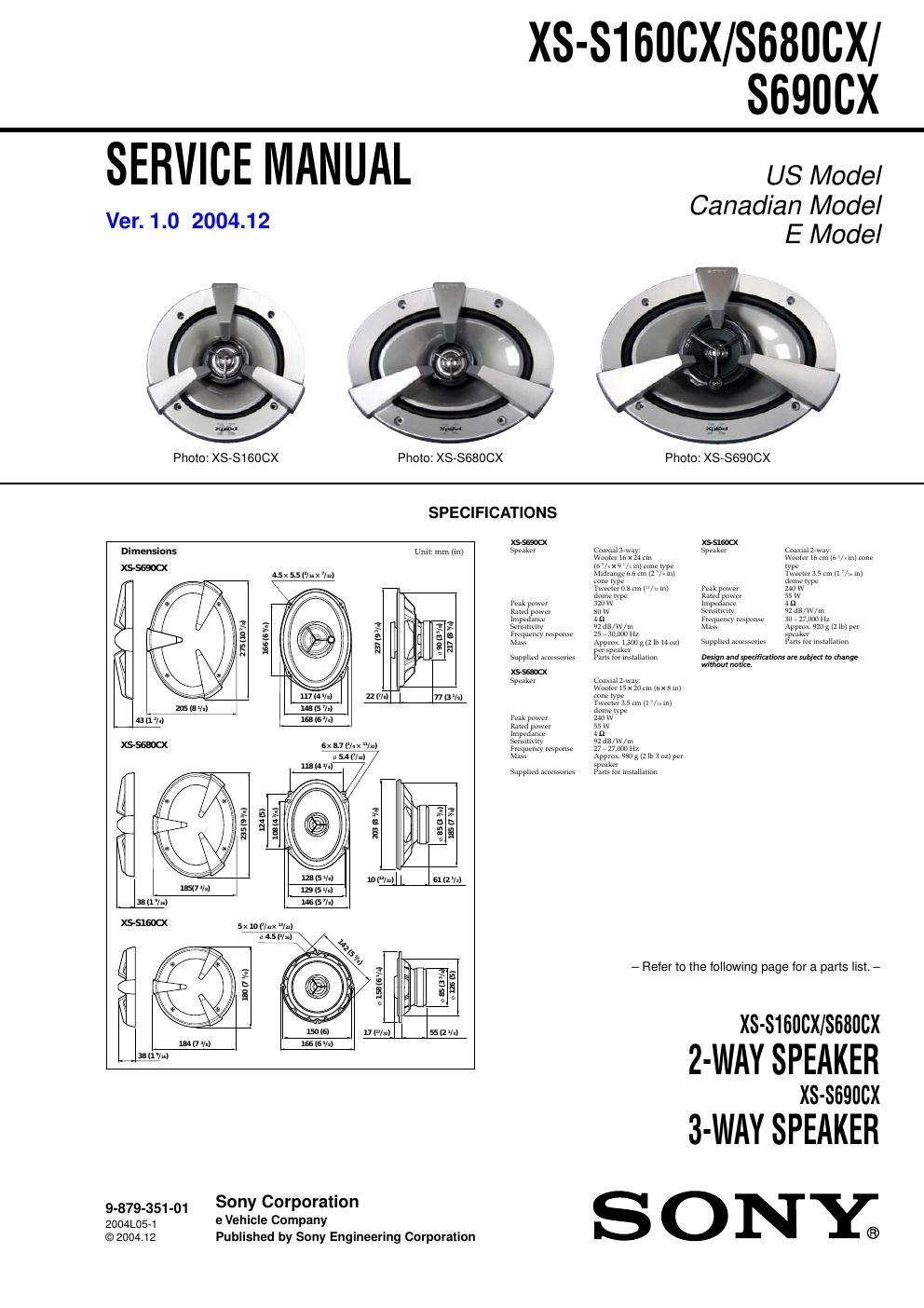

Sony xs s 680 cx service manual

Page 1

2 XS-S160CX/S680CX/S690CX PARTS LIST Ref. No. Part No. Description Remark 1-826-045-11 SPEAKER (6inchx9inch) (XS-S690CX) 1-826-046-11 SPEAKER (6inchx8inch) (XS-S680CX) 1-826-047-11 SPEAKER (16cm) (XS-S160CX) 2-548-466-11 MANUAL, INSTRUCTION (ENGLISH, FRENCH, SPANISH, TRADITIONAL CHINESE) 12-549-507-01 PAPER PATTERN (XS-S690CX) 12-549-508-01 PAPER PATTERN (XS-S680CX) 12-549-509-01 PAPER PATTERN (XS-S160CX) 22-549-512-01 GRILLE (XS-S690CX) 22-549-513-01 GRILLE (XS-S680CX) 22-549-514-01 GRILLE (XS-S160CX) 31-824-847-11 CORD, SPEAKER CONNECTION 43-240-189-21 SCREW, SPECIAL 53-392-841-02 NUT, SPEED (XS-S160CX) 11 3 45 PAPER PATTERN (XS-S690CX) × 1 SPEAKER CONNECTION CORD × 2SPECIAL SCREW × 8SPEED NUT (XS-S160CX only) × 8 1 222 PAPER PATTERN (XS-S680CX) × 1PAPER PATTERN (XS-S160CX) × 1 GRILLE (XS-S690CX) × 2GRILLE (XS-S680CX) × 2GRILLE (XS-S160CX) × 2

Page 2

3 XS-S160CX/S680CX/S690CX MEMO
