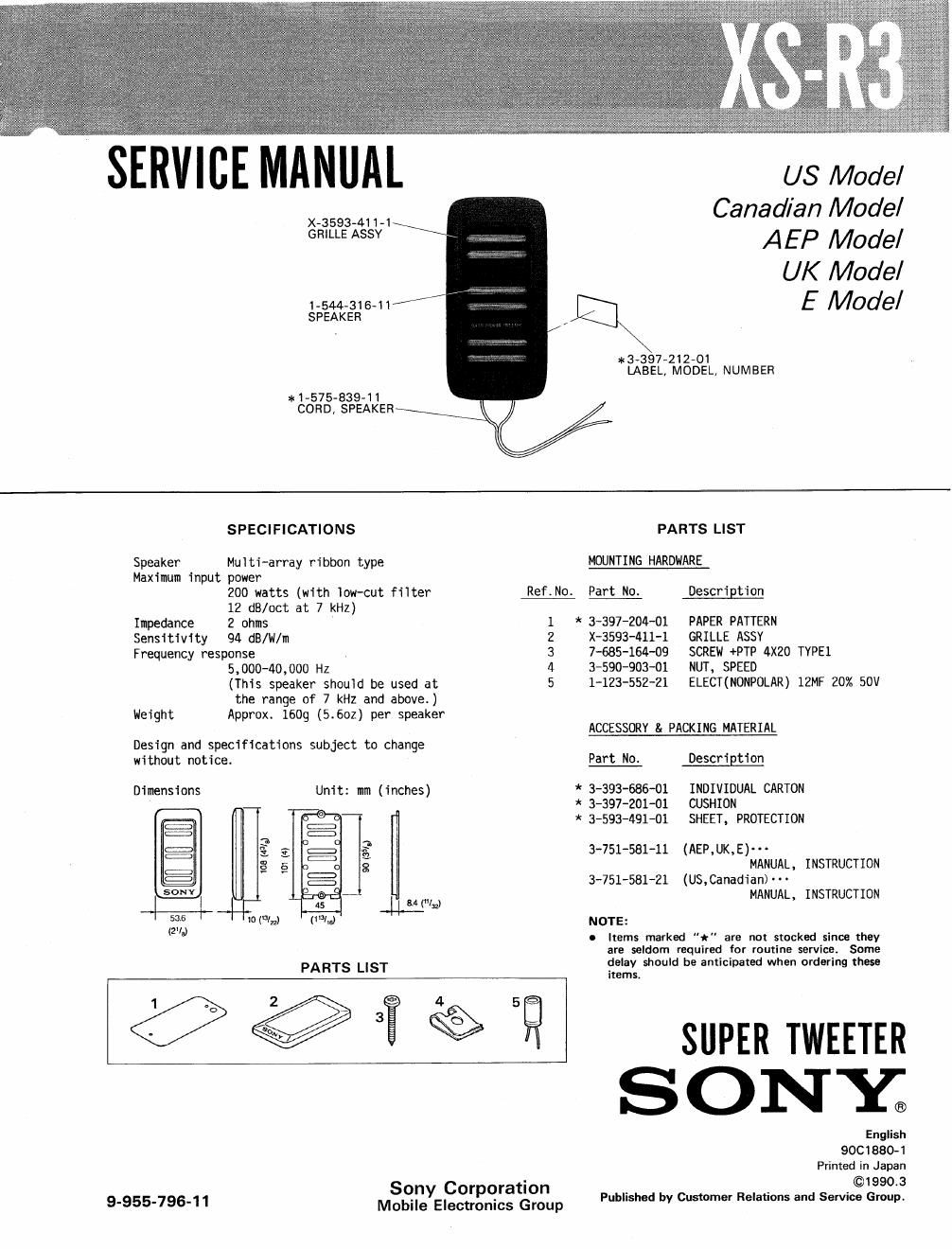

SERVIBEMANUAL USMode,

x.3593_411_1 Canadian Model
GRILLE ASSY 7 AEP Model
UK Model

E Model

1-544-316~11
SPEAKER

* 3-397-212»01
LABEL, MODEL, NUMBER

*1~575-339-11
CORD, SPEAKER

SPECIFICATIONS PARTS LIST
Speaker Multisarray ribbon type MOUNTING HARDWARE
Maximum input power

200 watts (with low-cut filter Ref.No. Part No. Description

12 dB/oct at 7 kHz)

Impedance 2 ohms 1 * 3-397-204-01 PAPER PATTERN
Sensitivity 94 dB/W/m 2 X-3593-411-1 GRILLE ASSY
Frequency response 3 7-655-164-09 SCREW +PTP 4X20 TYPEl
5,000-40,000 HZ 4 3-590-903-01 NUT, SPEED
(This speaker should be used at 5 1-123-552-21 ELECT(NONPOLAR) 12MF 20% 50V
the range of 7 kHz and above.)
Weight Approx. 1609 (5.602) per speaker
ACCESSORY & PACKING MATERIAL
Design and specifications subject to change
without notice. Part No. Description
Dimensions Unit: mm (inches) * 3-393-686-01 INDIVIDUAL CARTON
* 3-397-201-01 CUSHION
,2 * 3-593-491-01 SHEET, PROTECTION
c: 1
2-3 3 5: 3-751-581-11 (AEP, UK, E) - - -
t: 2 s MANUAL, INSTRUCTION
= 3-751-581-21 (US,Canadian) - -
5° u MANUAL. INSTRUCTION
( In»
5? 0 (22) NOTE:
(20) . Items marked "k" are not stacked since they

are seldom required for routine service. Some
delay should be anticipated when ordering these
items.

PARTS LIST

"3

SUPER TWEETER

SONY;

English

9OC1880-1

Printed in Japan

©1990.3

Published by Customer Relations and Service Group.

Sony Corporation
9-955-796-11 Mobile Electronics Group
