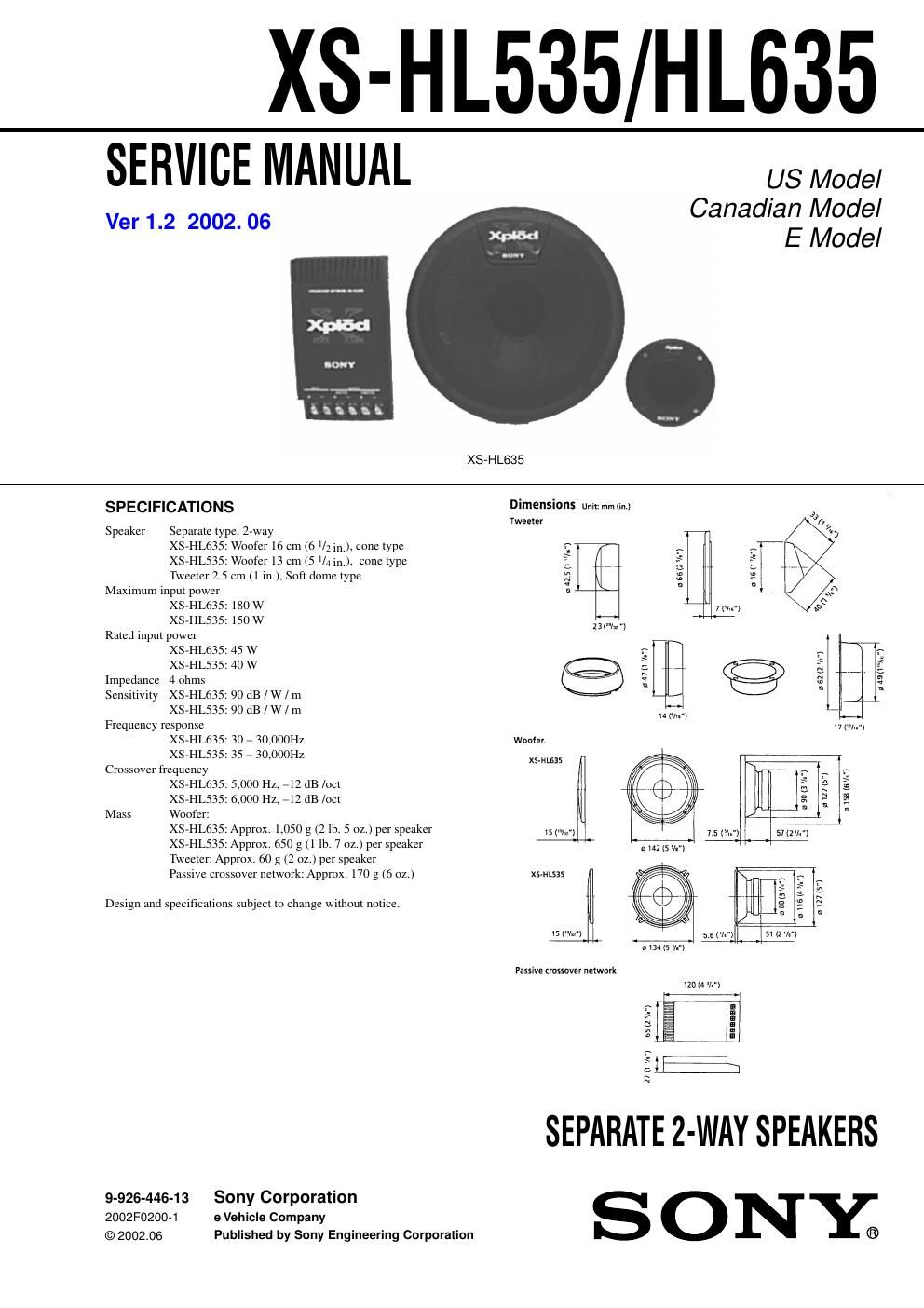

XS-HL535/HL635
PARTS LIST
Ref. No. Part No. Description Remark
1-529-311-11 SPEAKER (13cm) (XS-HL535)
1-529-312-11 SPEAKER (16cm) (XS-HL635)
1-529-313-11 SPEAKER (2.5cm)
1-781-371-11 FILTER (PASSIVE NETWORK) (XS-HL635)
1-781-371-21 FILTER (PASSIVE NETWORK) (XS-HL535)
3-865-942-11 MANUAL, INSTRUCTION (ENGLISH/FRENCH/ SPANISH/CHINESE)
1 A-3301-811-A CORD ASSY
2 X-3377-243-1 SHEET ASSY, ADHESIVE
3 7-621-849-10 SCREW +P 3X14 TYPE4
4 X-3377-244-1 BRACKET ASSY
5 3-034-930-01 PAPER PATTERN (XS-HL635)
5 3-034-931-01 PAPER PATTERN (XS-HL535)
6 3-023-591-11 GASKET (XS-HL635)
6 3-030-291-11 GASKET (XS-HL535)
7 X-3377-242-1 NET ASSY, GRILLE
8 A-3254-779-A SCREW ASSY
1
5
2
4 3
6 7
\b
Ver 1.2 2002.06
