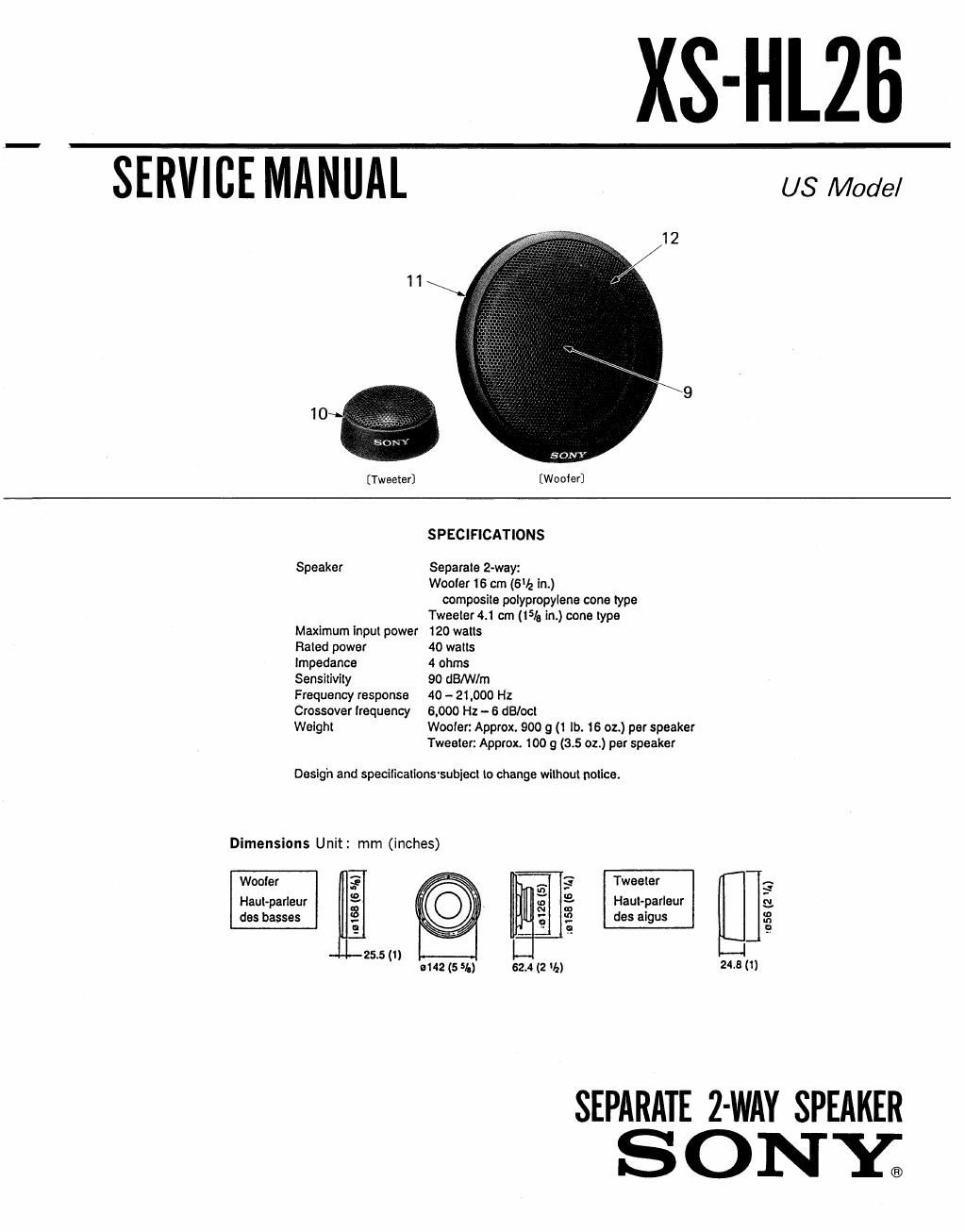

Page 1

XS-HLZB

* SERVICE MANUAL us Mode/

[Tweeter] [Wooier]

SPECIFICATIONS

Speaker Separate 2-way:
Woofer 16 cm (6% in.)
composite polypropylene cone type
Tweeter 4.1 cm (15/. in.) coma lypa
Maximum Input power 120 walls

Raled power 40 walks
Impedance 4 ohms
Sensilivlly 90 dB/W/m

Frequency response 40 - 21,000 Hz

Crossover lrequency 6.000 H1 - 6 dB/ocl

Weight Woolen Approx. 900 g (1 lb. 16 oz.) per speaker
Twealer: Approx. 100 g (3.5 oz.) per speaker

Design and specificafionssubiecl lo change wilhoul nolIce.

Dimensions Unit: mm (inches)

Wooler ,3 a? 5; Tweeter 3
Haul-padeur 3 g 7: Ham-parlour «:3
des basses {3 ; '2 des aigus :9,
9 9 9
25.5 (1)
9142 (5 5/.) 62.4 (2 '12) 24.8 (1)

SEPARATE 2-WAY SPEAKER
S 0N Y;

Page 2

XS-HL26

PARTS LIST
Ref.No Part No. Descrigiion Remark NOTE:
. I Items marked *" are not stocked since they
1.4 Prlnted 0" the 03 non flap are seldom required for routine service Some
13 X3354'857'1 ASSY- SCREW/NUT delay should be anticipated when ordering
5 1-559-640-11 CORD, SPEAKER (WHT) these items.
5 1-559640-21 CORD, SPEAKER (GRY)
6,7 X-3363-1304 ASSY, SCREW
8 X-3363-118-l CEMENT ASSY, CONTACT
9 1-544-67111 SPEAKER, WOOFER
10 1-544-673-11 SPEAKER, TWEETER
11 3-368-85501 GRILLE
12 3-368-860-01 NET
*3376-228-01 INDIVIDUAL, CARTON
*3-376-230-01 CUSHION A
*3-376-230~11 CUSHION B
Printed on the Carton flap MANUAL, INSTRUCTION
® ® @ ® (3 © ®
xi x2 x2 x1 )Q x6 x8 x1
CONNECTIONS
Fewer amplifier ale.
Amplliicaleur de pulssance alc.
Right Leil
Droit Gauche Tweeter
Ham-parlour
das aigus
9 G 0 6
Left
6 0 G Gauche
Write Black shined, 0
G Blane Rayé nolr 9 WWW
6:), Black slrlpad (9 Haul-parieur
Rayé Mir 0 des basses
to
. e Woaier
g; Haul-parlour
do: bass
item the lwaaler °
del I l .
, , a as Flight
Droil
Twealar
Haul-parleur
des algus
English
' 92A0425>1
Suny Corporatlon Primed in Japan
9-956-858-11 Mobile Electronics Group © 1992. 1

Published by Customer Relations and Service Group
