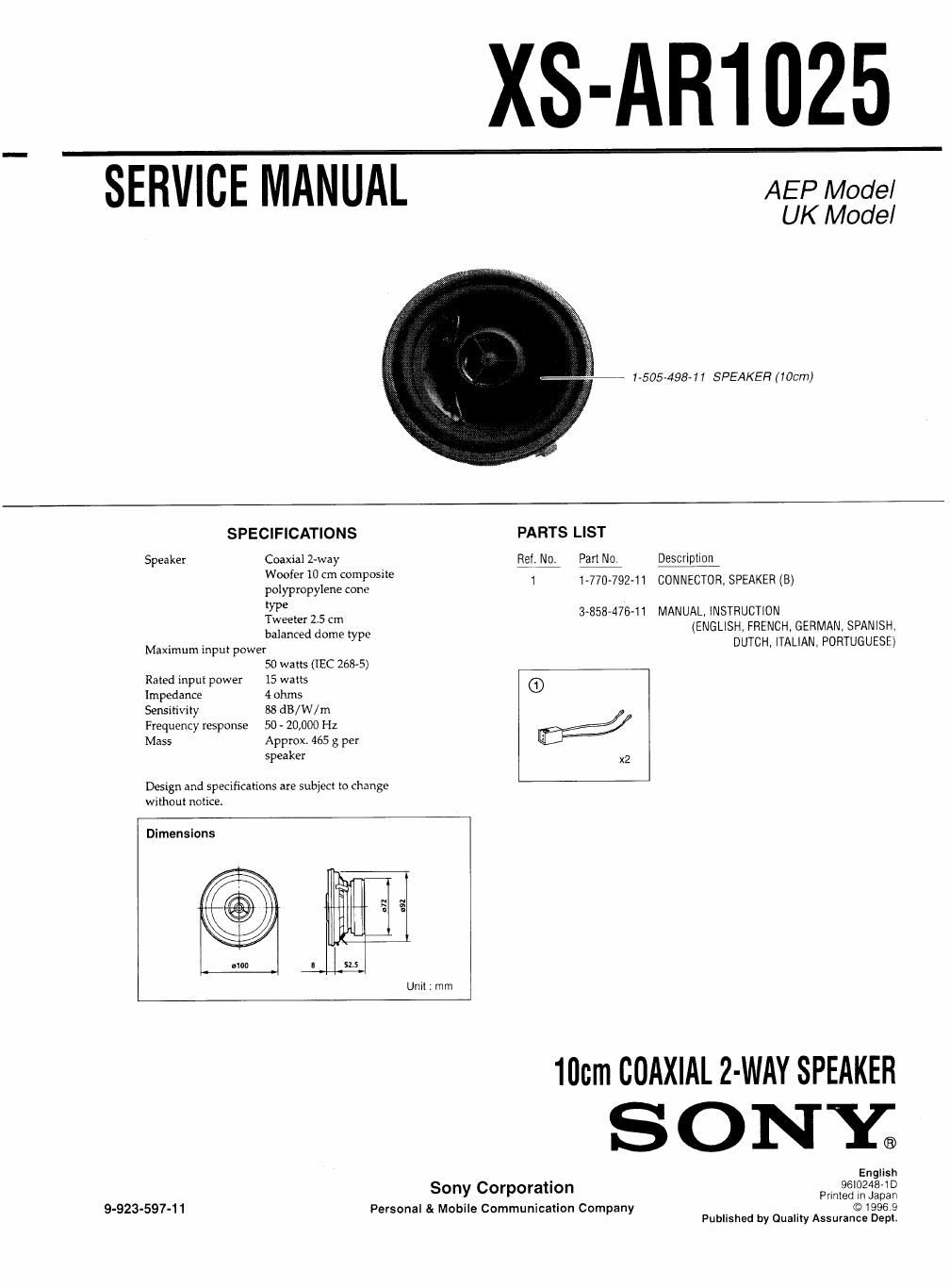

XS-AR1025

SERVICE MANUAL AEP Model

UK Model

7605419841 SPEAKER (IOCm)

SPECIFICATIONS PARTS LIST
Speaker Coaxial 2-way EMA M Description
wmfewcmwmpmm 1 1-770-792-11 CONNECTOR, SPEAKERIB)
polypropylene cone
type 3-858~476-11 MANUAL, INSTRUCTION

Tweeier 25 cm

balanced dome type
Maximum input power

50 watts (IEC 268-5)

(ENGLISH, FRENCH, GERMAN, SPANISH.
DUTCH. ITALIAN, PORTUGUESE)

Rated input power 15 watts (D
Impedance 4 ohms
Sensitivity 88 dB/W/m
Frequency response 50 - 20,000 Hz M
Mass Approx, 465 g per
speaker x2

Design and specificalions are subject to change
without notice.

Dimensions
v @-
I100 . $2.5
Unil : mrn
S O N Y (E
English
' 960248-10
Sony corporatlon Primed In Japan
9-923-597-11 Personal & Mobile Communication Company @1996 9

Published by Oualiiy Assurance Depi.
