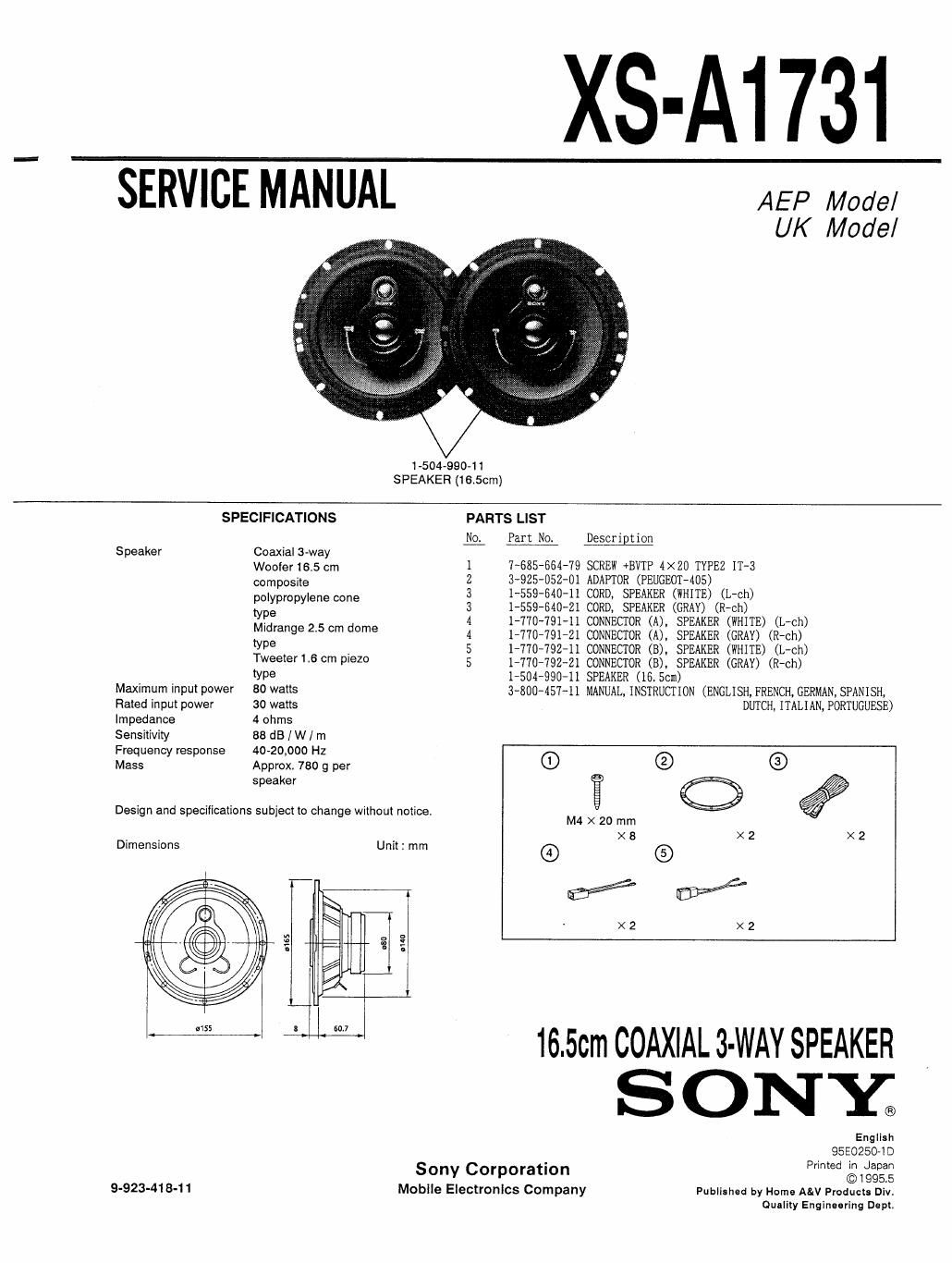

XS-A1731

SERVICE MANUAL

1-504~990-11
SPEAKER (16.50m)

AEP Model
UK Model

SPECIFICATIONS

S peaker

Maximum input power
Rated input power
Impedance
Sensitivity

Frequency response
Mass

Design and specifications subject to change without notice.

Dimensions

Coaxial 3-way
Woofer 165 cm
composite
polypropylene cone
M79

Midrange 2.5 cm dome
type

Tweeter 1.6 cm piezo
tWe

80 watts

30 watts

4 ohms

38 :18 I W / rn
40~20.000 Hz
Approx, 780 g per
speaker

Unit: mm

alSS

was
I
an
.140

9-923-418-11

Sony Corporation
Mobile Electronics Company

PARTS LIST

&

mm-brmeNH

Part No.

Description

74585766449 SCREW +BVTP 4X20 TYPEZ IT-B

3-925-052-01 ADAPTOR (PEUGEOT-405)

1-559-640-11 CORD, SPEAKER (WHITE) (L-ch)

1-559-640-21 CORD, SPEAKER (GRAY) (R-ch)

1-770-791-11 CONNECTOR (A), SPEAKER (WHITE) (Inch)

1470-791-21 CONNECTOR (A), SPEAKER (GRAY) (R-ch)

1-770-792-11 CONNECTOR (B), SPEAKER (WRITE) (Irch)

1-770-792-21 CONNECTOR (E), SPEAKER (GRAY) (R-ch)

1-504-990-11 SPEAKER (16.50111)

3-8007457-11 MANUAL, INSTRUCTION (ENGLISH, FRENCH. GERMAN, SPANISH,
DUTCH, I TALIAN, PORTUGUESE)

(D

M4><20mm
X8

6) (5)
MM

X2 X2

©©
§©%

16.5cm COAXIAL 3-WAY SPEAKER
S 0 NY;

English

95E0250-ID

Printed in Japan

©1995.5

Published by Home A&V Products Div.
Quality Engineering Dept.
