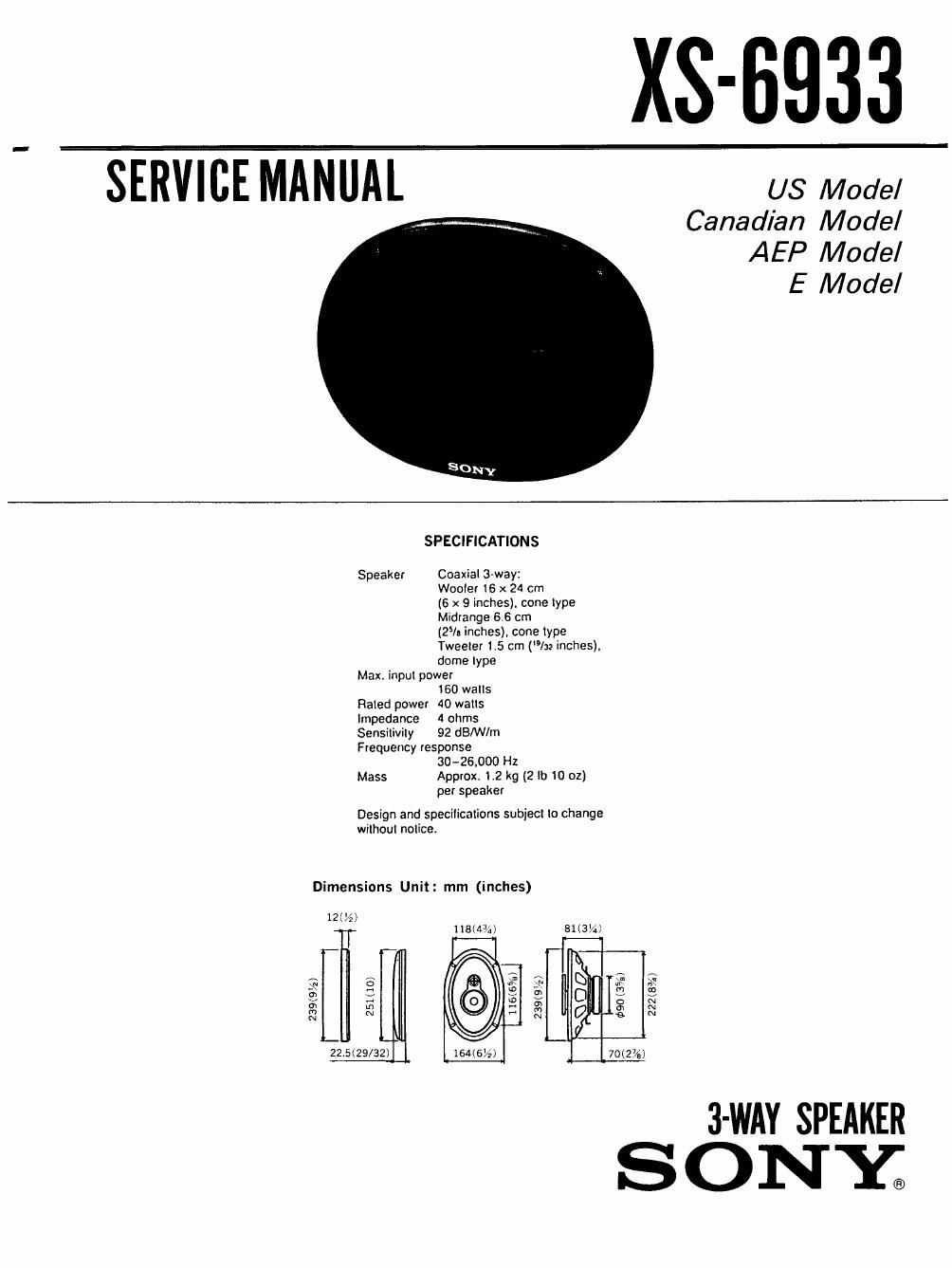

Sony xs 6933 service manual

Page 2

PARTS LIST

0 [tells marked "t" are not stocked since (D Q
they are seldom required for routine service.

Soile delay should be anticipated 9
when ordering these item. \v!

RefiNoI Part No, Description
- ®
1 PRINTED ON CARTON © n°t SUPPI'ed @
2 17559764011 CORD, SPEAKER (WHITE) (Canadian. AEP, E)
2 1*55964021 CORD, SPEAKER (CRY) (Canadian. AEP, E) ©@ @
2 1*57431831 CORD (WITH TERMINAL) (WHITE) (US)
2 1*574'31841 CORD (WITH TERMINAL) (CRY) (US)
3 3-591>125-00 SCREW
4 3-392-870-01 NUT, SPEED
5 3~592»847-01 SCREW (0 (B4), SPECIAL
b 7*68402404 N 4, TYPE 2
* B 3-368-864*01 SPACER
9 3'35885701 GRILLE
10 1*50419711 SPEAKER
I] 3*38519801 NET
" 3-368-835-01 CUSHION (A)
» 3-358887-01 CUSHION (B)
* 3*38591201 INDIVIDUAL CARTON
3*75638811 MANUAL. INSTRUCTION (SWEDISII,SPANISH,
DUTCH, ITALIAN, PORTUGUESE, CHINESE) (AEP, E)
PRINTED 0N CARTON MANUAL, INSTRUCTION
(ENGLISH, FRENCH) (US, Canadian)
Connections
Righi speaker ---~ Len speaker
k /0 k /0
Gray cord. black Whiia cord. black siriped
swiped
Power amplifier eic.
English
Sony Corporation , 9404734
. . Printed in Japan
9-957-515-11 Mobile Electronics Group © 1992. 12

_2 , Filblislied by Audio Corporate Planning Group
