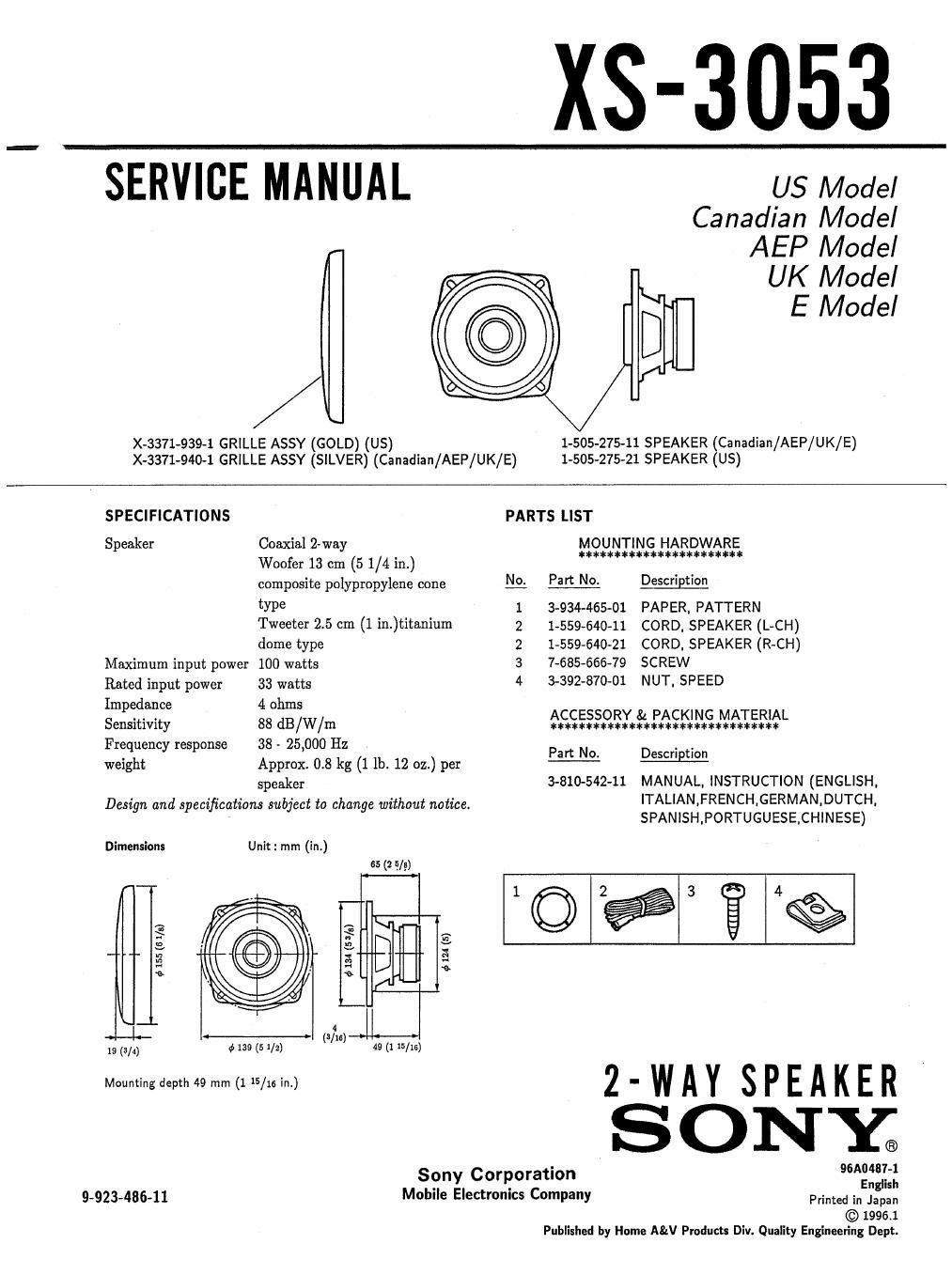

XS-3053
SERVICE MANUAL US Model
Canadian Model
AEP Model
UK Model
E Model
x-3371-939-1 GRILLE ASSY (GOLD) (US) 1-505-275-11 SPEAKER (Canadian/AEP/UK/E)
x-3371-94o-1 GRILLE ASSY (SILVER) (Canadian/AEP/UK/E) mos-275-21 SPEAKER (US)
SPECIFICATIONS PARTS LIST
Speaker Coaxial 2-way MOUNTING HARDWARE
Woofer 13 cm (5 1/4 in.) ********************$**
composite polypropylene cone N& M M
type 1 3-934-465-01 PAPER. PATTERN
Tweeter 2.5 cm (1 in.)titanium 2 1-559-640-11 CORD, SPEAKER (L-CH)
dome type 2 1-559-640-21 CORD, SPEAKER (R~CH)
Maximum input power 100 watts 3 7-685-666-79 SCREW
Rated input power 33 watts 4 3-392-870-01 NUT. SPEED
ImPEdance 4 ohms ACCESSORY & PACKING MATERIAL
Sensitivity 88 dB/W/m nunuuuuuuuuwuu
Frequency response 38 - 25 000 Hz , ,
P rt N r
weight Approx. 0.8 kg (1 lb. 12 oz.) per _a_°_ W
speaker 3810-54241 MANUAL. INSTRUCTION (ENGLISH,
|TALIAN,FRENCH.GERMAN,DUTCH,
SPANISH.PORTUGUESE.CHINESE)
1©2%3 E \9
Design and specifications subject to change without notice.
Dimension: Unit: mm (In.)
55 (2 5/9)
¢ 155 (6 1/»)
\"
n
3
v
m
.1
e
¢ 124 (s)
4
(5/10)
(3/4) «$139 (5 1/2) 49 (1 15/15)
Mounting depth 49mm (1 15/16 In.) 2 ' W A Y S P E A K E R
S O N Y;
Sony Corporation 23::
9-923-485-11 Mobile EleCtmnics Company Printed In Japan
© 1996.1
Published by Home A&V Product: Div. Quality Englneering Dept.
