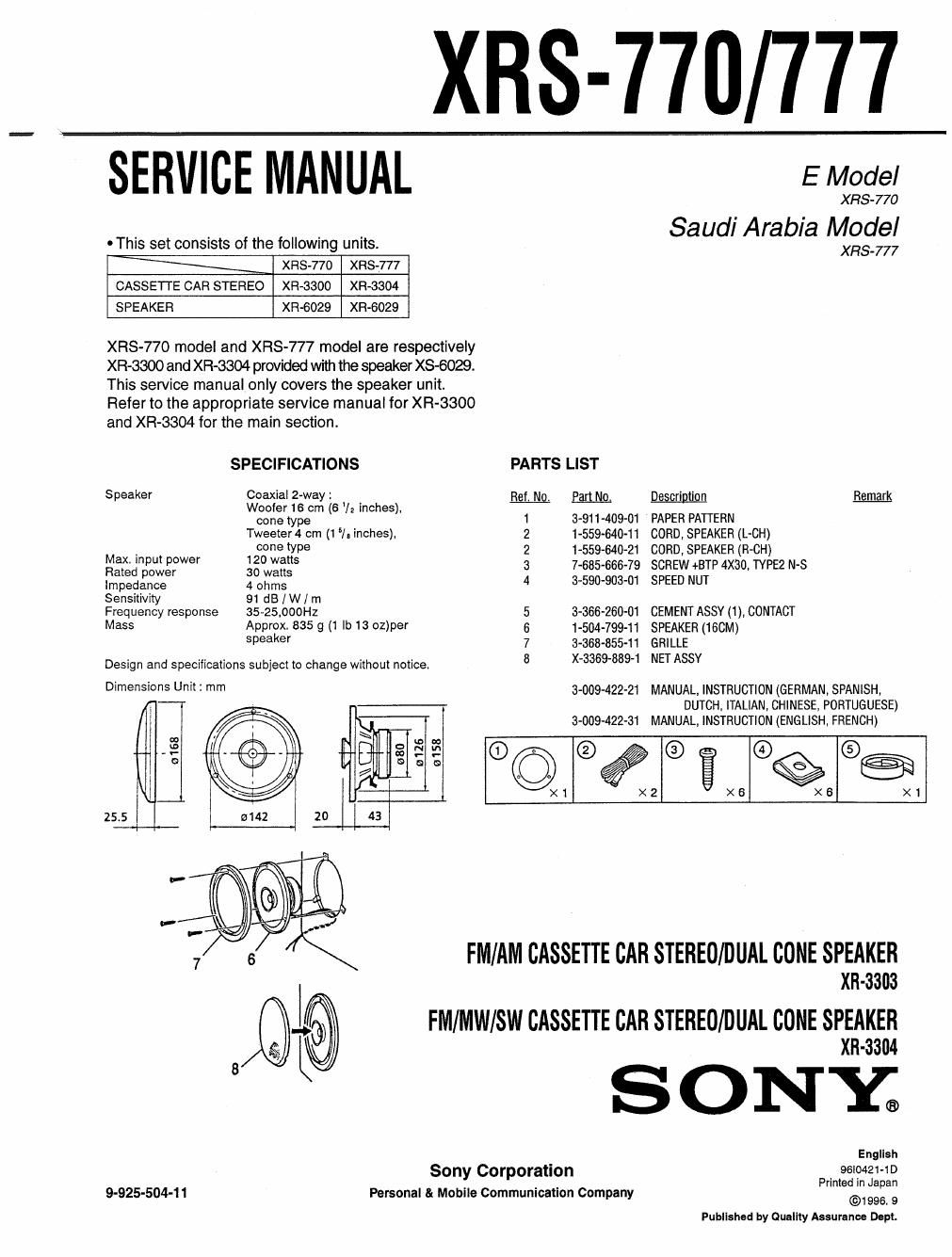

XRS-770/7 77
SERVICE MANUAL
-This set consists of the following units.
XRS-770 XRS-777
CASSETTE CAR STEREO XR-3300 XR-3304
SPEAKER XR6029 XR-6029
XFtS-770 model and XRS-777 model are respectively
XR-3300 and XR-3304 provided with the speaker X86029.
This service manual only covers the speaker unit.
Refer to the appropriate service manual for XFt-3300
and XR-3304 for the main section.
Speaker
Max. input power
Rated power
Impedance
Sensitivity
Frequency response
Mass
SPECIFICATIONS
Coaxial 2vway :
Woofer 16 cm (6 l: inches)v
cone type
TweeteM cm (1 5/. inches),
cone type
120 watts
30 watts
4 ohms
91 dB / W I m
35~25,000HZ
Approx. 835 g (1 lb 13 oz)per
speaker
Design and specifications subject to change without notice.
Dimensions Unit: mm
I
25.5 I
080
6126
0158
9-925-504-1 1
E Model
XRS-770
Sa ud/ Arab/a Model
XRS-777
PARTS LIST
Ref. N9. PJILNLL Winn Remark
1 3-911-409~01 PAPER PATTERN
2 1-559-640-11 CORD, SPEAKER (L-CH)
2 1-559-640-21 CORD, SPEAKER (R-CH)
3 7-685-666-79 SCREW +BTP 4X30, TYPE2 NS
4 3-590-903-01 SPEED NUT
5 3-366-26001 CEMENT ASSY (1 ), CONTACT
6 1-504-799-11 SPEAKER (160M)
7 3-368-855-11 GRILLE
8 X-3369-889-1 NET ASSY
3-009422-21 MANUAL, INSTRUCTION (GERMAN, SPANISH,
DUTCH, ITALIAN, CHINESE, PORTUGUESE)
3-009-422-31 MANUAL, INSTRUCTION (ENGLISH, FRENCH)
@%©§ @e@
X6 X6
X1
