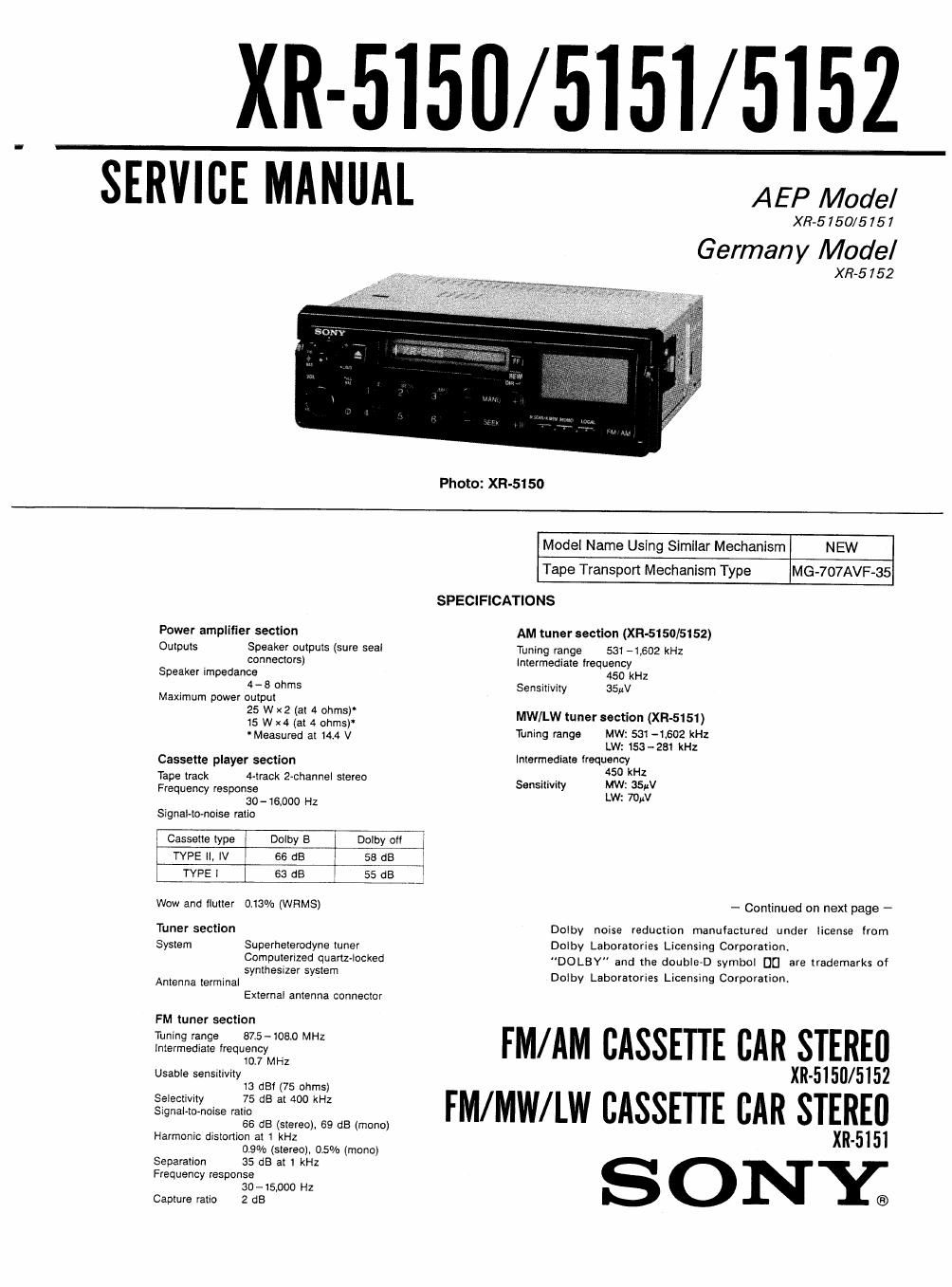

XR-5150/ 5151/ 5152
SERVICE MANUAL
AEP Model
XR-5I50/5757
Germany Model
XR-5 752
Photo: XII-5150
Power amplifier section
Outputs Speaker outputs (sure seal
connectors)
Speaker impedance
4 ~ 8 ohms
Maximum power output
25 W xa (at 4 ohms)
15 W x4 (at 4 ohms)
' Measured at 144 V
Cassette player section
Tape track 4-track 2-channel stereo
Frequency response
Bil-16,000 Hz
Signal-tonoise ratio
Cassette type Dolby B Dolby oit
TYPE II, IV 66 dB 58 dB
TYPE I 63 dB 55 dB
Wow and flutter 0.13% (WFiMS)
Tuner section
System Superneterodyne tuner
Computerized quartz»locked
synthesizer system
Antenna terminal
External antenna connector
FM tuner section
Tuning range 875-1080 MHz
intermediate frequency
10.7 MHZ
Usable sensitivity
13 def (75 ohms)
66 dB (stereo), 69 dB (mono)
0.9% (stereo). 05% (mono)
Separation 35 dB at 1 kHz
Capture ratio 2 dB
Model Name Using Similar Mechanism NEW
SPECIFICATIONS
AM tuner section (XE-51505152)
Tuning range 531 -1,602 kHz
450 kHz
MW/LW tuner section (XE-5151)
Tuning range MW: 531-1502 kHz
- Continued on next page -
Dolby noise reduction manufactured under license from
EM/AM CASSETTE CAR STEREII
XR-515ll/5152
FM/MW/LW CASSETTE CAR STEREII
XR-5ISI
SONY;
Selectivity 75 dB at 400 kHz
Signal
Harmonic distortion at 1 kHz
Frequency response
30- l5,000 Hz
Tape Transport Mechanism Type MG-7o7AVF-35
Intermediate lrequency
Sensitivity SSW
LW: 153 - 281 kHz
Intermediate frequency
450 kHz
Sensitivity MW: 35pV
LW: 70W
Doiby Laboratories Licensing Corporation.
"DOLBY" and the double-D symbol DC] are trademarks of
Dolby Laboratories Licensing Corporation
