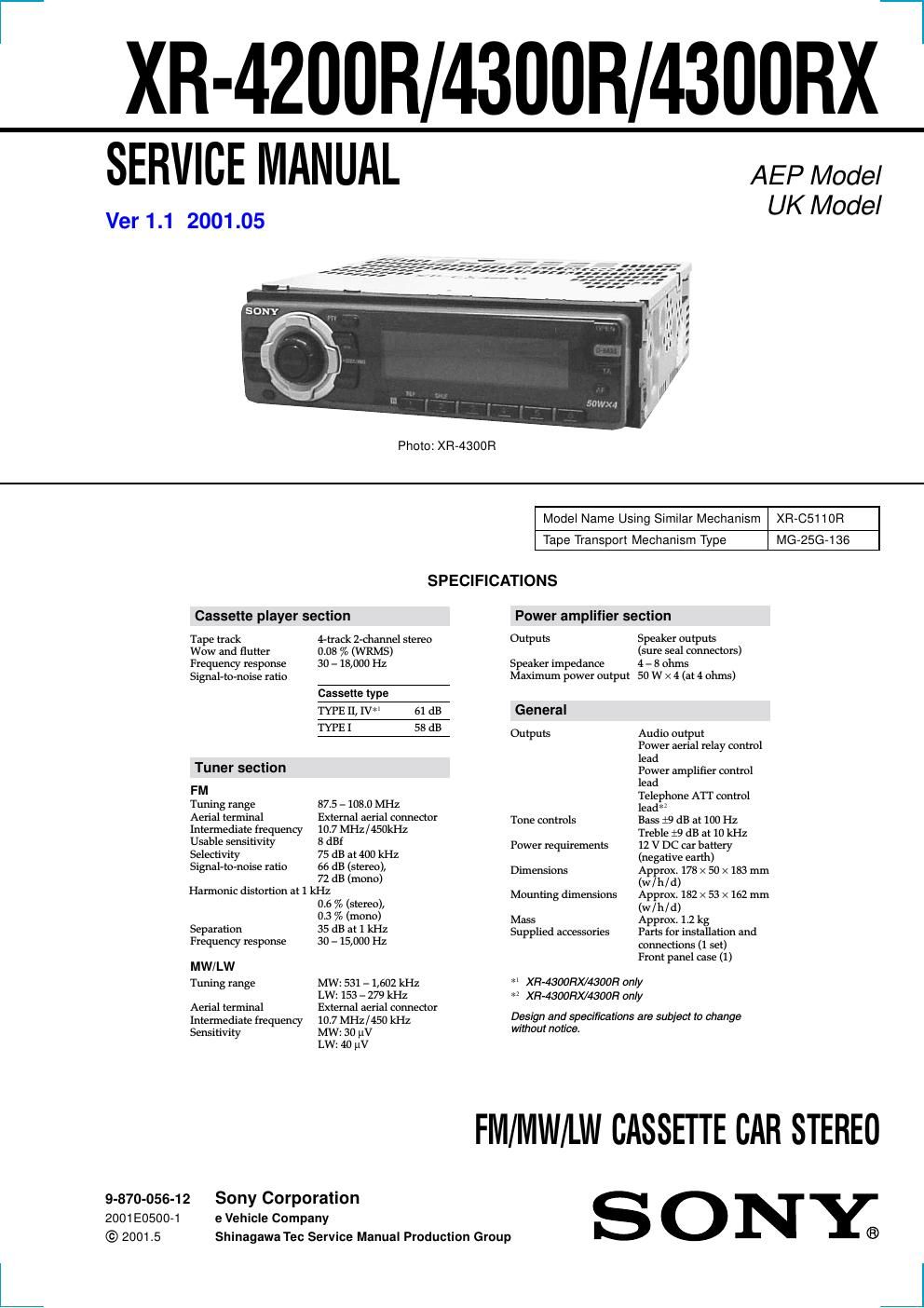

Extracted text from sony xr 4200 r service manual (Ocr-read)
Page 1
2
Flexible Circuit Board Repairing
- Keep the temperature of the soldering iron around 270 ΛC dur-
ing repairing.
- Do not touch the soldering iron on the same conductor of the
circuit board (within 3 times).
- Be careful not to apply force on the conductor when soldering
or unsoldering.
Notes on chip component replacement
- Never reuse a disconnected chip component.
- Notice that the minus side of a tantalum capacitor may be dam-
aged by heat.
TABLE OF CONTENTS
1. GENERAL
Location of controls ........................................................ 3
Resetting the unit ............................................................ 3
Detaching the front panel ................................................ 3
Setting the clock .............................................................. 3
Installation ....................................................................... 4
Connections ..................................................................... 5
2. DISASSEMBLY ......................................................... 8
3. ASSEMBLY OF MECHANISM DECK ........... 10
4. MECHANICAL ADJUSTMENTS ....................... 13
5. ELECTRICAL ADJUSTMENTS ......................... 13
6. DIAGRAMS
6-1. Note for Printed Wiring Boards and
Schematic Diagrams ....................................................... 15
6-2. Printed Wiring Board
- MAIN Board (Component Side) - .............................. 16
6-3. Printed Wiring Board
- MAIN Board (Conductor Side) - ................................ 17
6-4. Schematic Diagram - MAIN Board (1/2) - ................... 18
6-5. Schematic Diagram - MAIN Board (2/2) - ................... 19
6-6. Printed Wiring Board - KEY Board - ........................... 20
6-7. Schematic Diagram - KEY Board - ............................. 21
6-8. Printed Wiring Board - SUB Board - ........................... 22
6-9. Schematic Diagram - SUB Board - .............................. 22
6-10. IC Pin Function Description ........................................... 26
7. EXPLODED VIEWS ................................................ 30
8. ELECTRICAL PARTS LIST ............................... 33
