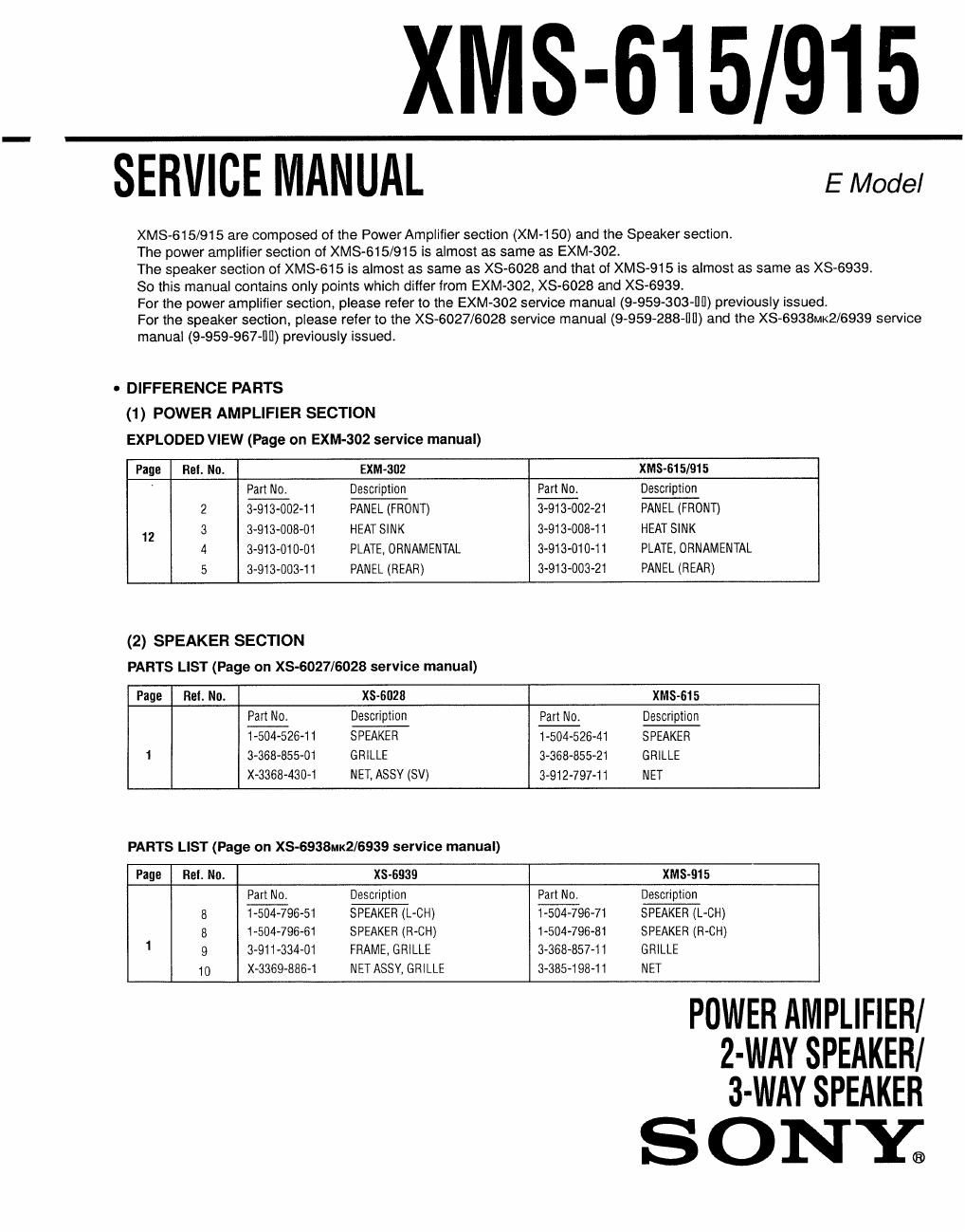

xwis-615/915
3mm MANUAL-
XMS-615/915 are composed of the Power Amplifier section (XMA 50) and the Speaker section
The power amplifier section of XMS-615/915 is almost as same as EXM-302.
The speaker section of XMS-615 is almost as same as X86028 and that of XMS-915 is almost as same as XS-6939.
So this manual contains only points which differ from EXM-302, XS-6028 and XS-6939.
For the power amplifier section, please refer to the EXM-302 service manual (9-959-303-0fl) previously issued.
For the speaker section, please refer to the XS-6027/6028 service manual (9-959-288-llli) and the XS-6938MK2/6939 service
manual (9-959-967-llll) previously issued.
E Model
- DIFFERENCE PARTS
(1) POWER AMPLIFIER SECTION
EXPLODED VIEW (Page on EXM-302 service manual)
Page Ref. No. EXM-3I12 XMS-615/915
' Part No. Description Part No. Description
2 3-913-002-11 PANEL (FRONT) 3-913-002-21 PANEL (FRONT)
12 3 3913-008-01 HEAT SINK 3-913-008-11 HEAT SINK
4 3-913»010-01 PLATE, ORNAMENTAL 3-913-010-11 PLATE, ORNAMENTAL
5 3-913~003-11 PANEL (REAR) 3-913-003-21 PANEL (REAR)
(2) SPEAKER SECTION
PARTS LIST (Page on XS-6027/6028 service manual)
Page Ref. No. X86028 XMS-Gls
Part No. Description Part No. Description
1-504-526-11 SPEAKER 1-504~526-41 SPEAKER
1 3-368-855v01 GRILLE 3-368-855-21 GRILLE
X3368-430-1 NET, ASSY (SV) 3-912-797-11 NET
PARTS LIST (Page on XS-6938MK2/6939 service manual)
Page Ref. No. X84593!) XMS-915
Part No. Description Part No Description
8 1-504-796-51 SPEAKER (L»CH) 1'504-796-71 SPEAKER (L-CH)
8 1-504-796-61 SPEAKER (R-CH) 1-504v796-81 SPEAKER (R-CH)
1 9 3-911-334-01 FRAME, GRILLE 3-368-857-11 GRlLLE
10 X-3369-886-1 NET ASSV, GRILLE 3-385-198-11 NET
POWER AMPLIFIER/
Z-WAY SPEAKER/
3-WAY SPEAKER
SONE
0 ACCESSORIES & PACKING MATERIALS
Ref No. Part No. Description
51 1-557-656-11 CORD (WITH TERMINAL)
52 1~562-594-11 CONNECTOR (CL-1814T)
%= 53 1-575-05541 CORD (WITH TERMINAL) (BACK UP)
* 54 1~575-056-11 CORD (WITH TERMINAL) (G)
* 55 1-575-090-11 CORD (WITH TERMINAL) (REM)
56 3-367-410-11 SCREW (DIA. 5X15). TAPPING
F1 1-532-563-11 FUSE (20A)
3-706-714-00 GROMMET
3-810-476-11 MANUAL FITTING INSTRUCTION
(ENGLISH, FRENCH, SPANISH)
3-810-537-11 MANUAL, INSTRUCTION
(ENGLISH, FRENCH)
3-810-53721 MANUAL, INSTRUCTION
(SPANISH)
* 3-912-859-01 CUSHION, CORRUGATED FIBERBOARD
MOUNTING HARDWARE
101 3-911-409-01 PAPER PATTERN (XMS-615)
102 3-911-407-01 PAPER PATTERN (XMS-915)
103 1-574-318-31 CORD (WITH TERMINAL) (WHITE)
103 1-574-318-41 CORD (WITH TERMINAL) (GRAY)
104 7~685-666-79 SCREW
105 3-590-903-01 SPEED NUT
106 3~366-260-01 CEMENT ASSY (1 ), CONTACT
107 3-592-847-01 SCREW (+) (B4), SPECIAL (XMS-915)
108 4-304-749-00 NUT (M4), FLANGE (XMS~915)
109 3-368-13134-1 I SPACER
0 Items marked * are no! stocked since they
are seldom required for routine service.
Some delay should be anticipated when order-
ing these items.
9-923-444-1 1
51 52
{Ef_"""":
5 vM g
I ' , I
I /Q I
1
(£53 __________ J
53 54
55 56
101 102
103 104
105 106
107 108
109
x2
Sony Corporation
Mobile Electronics Company
_2_
Engllsh
95K050421 >1 D
Printed in Japan
© 1995. 11
Publlshed by Home A&V Products Div.
Quality Englineering Dept.
