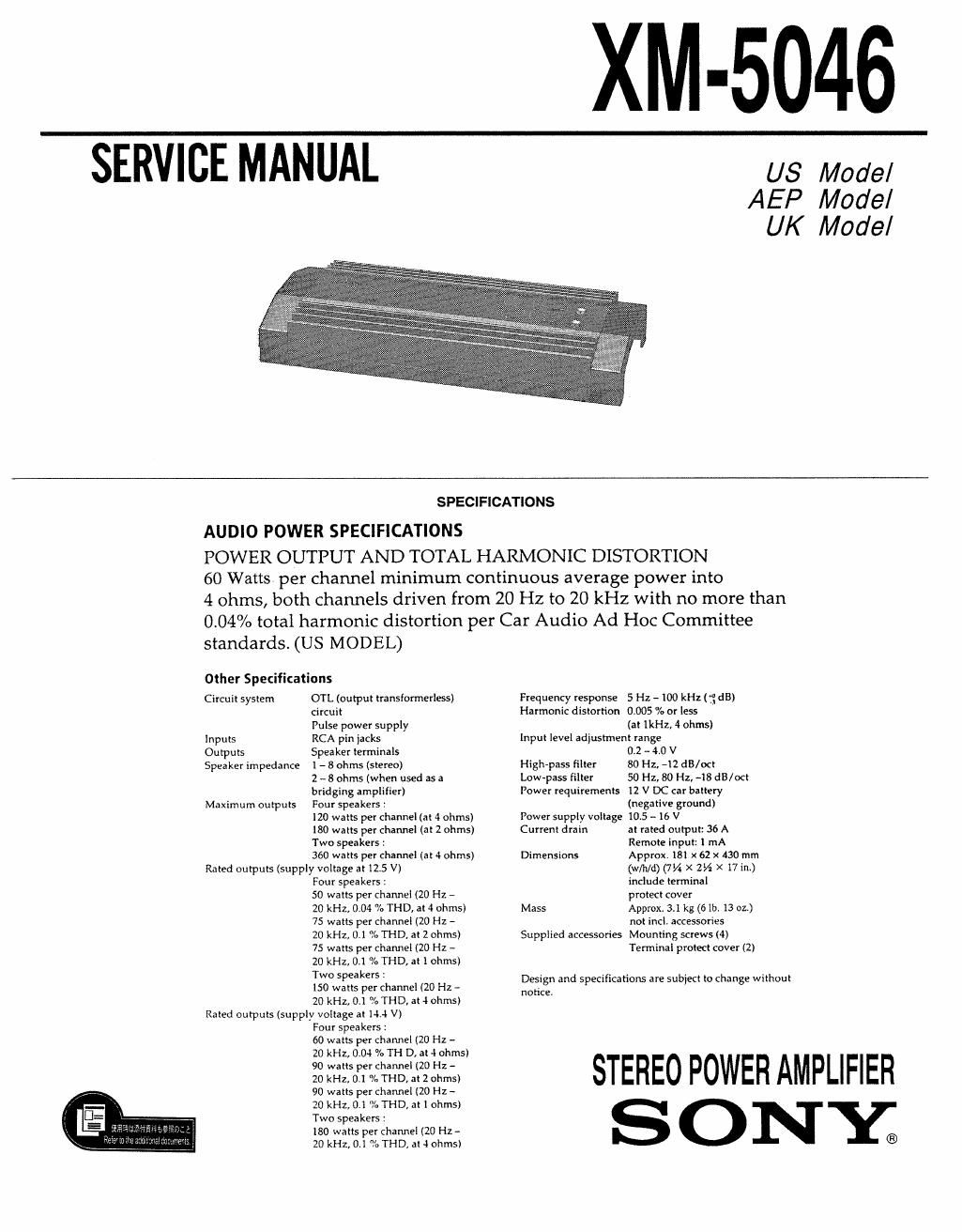

XM-5046

SERVICE MANUAL

U8 Model
AEP Mode/
UK Model

SPECIFICATIONS

AUDIO POWER SPECIFICATIONS

POWER OUTPUT AND TOTAL HARMONIC DISTORTION

60 Watts per channel minimum continuous average power into

4 ohms, both channels driven from 20 Hz to 20 kHz with no more than
0.04% total harmonic distortion per Car Audio Ad Hoc Committee
standards. (US MODEL)

Other Specifications

Circuit system

Inputs
Outputs
Speaker impedance

Maximum outputs

OTL (out-put translormeriess)
circuit

Pulse power supply

RCA pin jacks

Speaker terminals

1 - 8 ohms (stereo)

2 ~ 8 ohms (when used as a
bridging amplifier)

Four speakers :

120 watts per channel (at 4 ohms)
180 watts per channel (at 2 ohms)
Two speakers:

360 watts per channel (at 4 ohms)

Rated outputs (supply voltage at 12.5 V)

Four speakers :

50 watts per channel (20 Hz -
20 kHz, 0.04 /u THD, at 4 ohms)
75 watts per channel (20 Hz -
20 kHz, 0.1 "A- THD, at 2 ohms)
75 watts per channel (20 Hz -
20 kHz, 0.1 °/o THD, at 1 ohms)
Two speakers :

150 watts per channel (20 Hz ~
20 kHz, 01% THD, at 4 ohms)

Rated outputs (supply voltage at 1+4 V)

Four speakers :

50 watts per channel (20 Hz -
20 kHz, 0.04 "/9 TH D, at 4 ohms)
90 watts per channel 120 Hz <
20 kHz, 0.1% THD, at 2 ohms)
90 watts per channel (20 Hz -
20 kHz, 0.1% THD, at I ohms)
Two speakers '

180 watts per channel (20 Hz-
20 kHz, 0.1 33 TH D, at 4 ohms)

Frequency response 5 Hz - 100 kHz (3 dB)
Harmonic distortion 0005 % or less

(at lkHz, 4 ohms)

Input level adjustment range

High-pass filter
Low-pass filter

02 -- 4.0 V
80 Hz, -\2dB/oct
50 Hz, 80 Hz, -18 dB/oct

Power requirements 12 V DC car battery

(negative ground)

Power supply voltage 10.5 - 16 v

Current drain

Dimensions

Mass

at rated output: 36 A
Remote Input: l mA
Approx. 181 x 62 x 430 mm
(W/h/d) (7% x 2% x 17 in.)
include terminal

protect cover

Approx. 3.1 kg(61b. 13 oz.)
not incl. accessories

Supplied accessories Mounting screws (4)

Terminal protect cover (2)

Design and specifications are subject to change without

notice.
