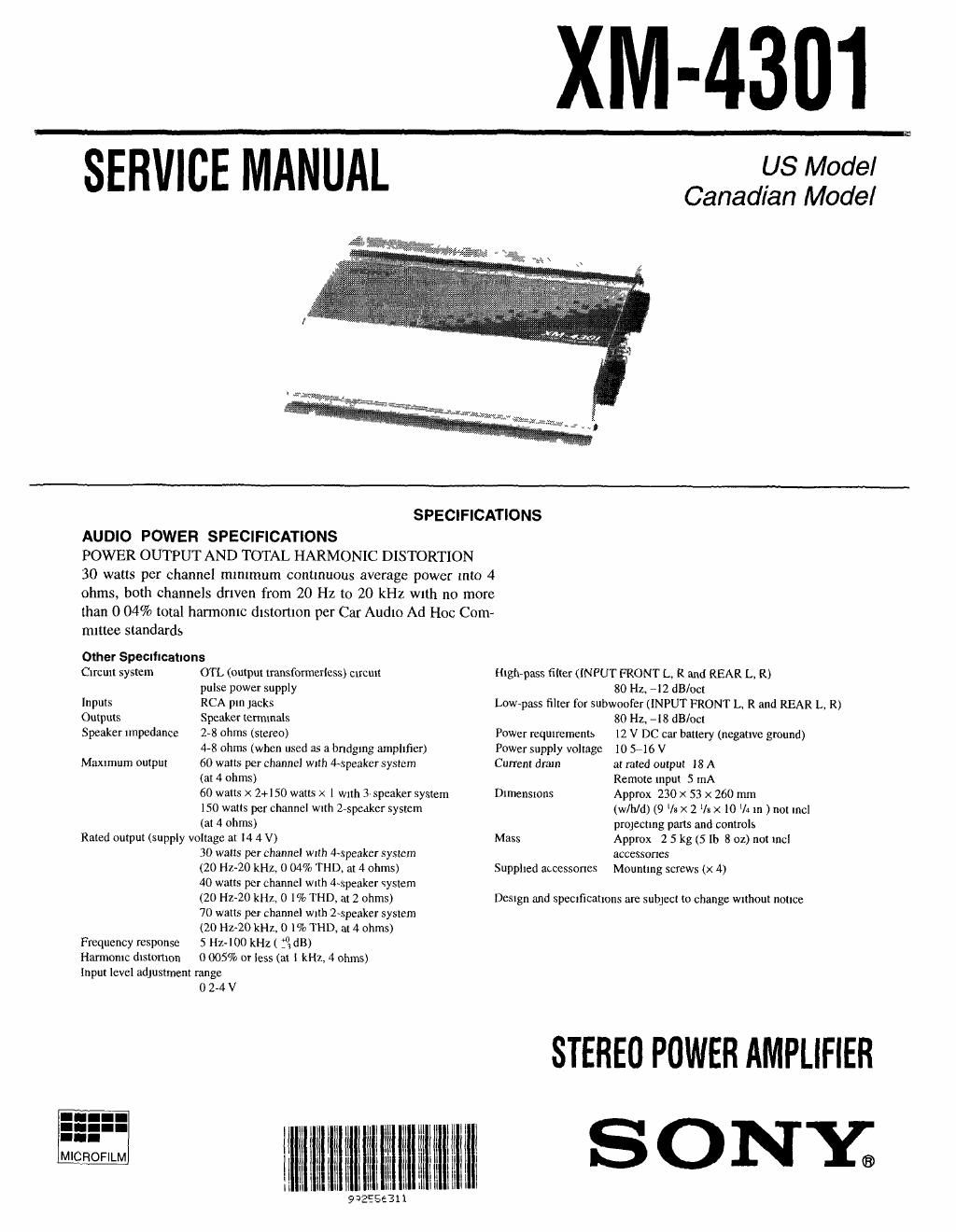

XM-4301
SERVICE MANUAL
US Model
Canadian Model
SPECIFICATIONS
AUDIO POWER SPECIFICATIONS
POWER OUTPUT AND TOTAL HARMONIC DISTORTION
30 watts per channel mmrmum contmuous average power mm 4
ohms, both channels driven from 20 Hz to 20 kHz wrth no more
than 0 04% total hannonlc dtstomon per Car Audro Ad Hoc Com-
mittee standards
Other Specifications
Crrcurr system OTL (output transformerless) mreurt
pulse power supply
Inputs RCA pm jacks
Outputs Speaker termmals
Speaker Impedance 2-8 ohms (stereo)
4-8 ohms (when used as a bndgmg amplifier)
Maximum output 60 watts per channel wrth 4-spenker system
(at 4 ohms)
60 watts x 2+150 watts x l wrth 3 speaker system
150 watts per channel wrth 2-speaker system
(at 4 ohms)
Rated output (supply voltage at I4 4 V)
30 watts per channel wnh 4»:peaker system
(20 I'll-20 kHz, 0 04% THD, at 4 ohms)
40 watts per channel wrth 4»:peaker system
(20 Hz~20 kHz, 0 1% THD, at 2 ohms)
70 watts per channel wxlh 2~speaker system
(20 Ill-20 kHz, 0 1% THD, at 4 ohms)
Frequency response 5 Hz-IOO kHz ( fidB)
Harmomc dlstomon 0 005% or less (at 1 kHz, 4 ohms)
Input level adjustment range
0 2-4 V
M IIIIIIIIIIIIIIIIIIII IIIIII III;
932256311
Hrghvpass filter (INPUT FRONT L, R and REAR L, R)
80 Hz, -I2 dB/oct
Low-pass filter for subwoofer (INPUT FRONT L, R and REAR L. R)
Power requirements
Power supply voltage
C urrent dram
Drmensrons
Mass
Supplred aeoessones
80 Hz. -18 dB/oet
12 V DC car battery (negatrve ground)
l0 Sr] 6 V
at rated output 18 A
Remote Input 5 mA
Approx 230 x 53 X 260 mm
(w/h/d) (9 Vs X 2 /r x 10 /4 m ) not mcl
prolectmg parts and controls
Approx 2 5 kg (5 lb 8 oz) not Incl
accessones
Mounnng schWs (x 4)
Design and spectficatrons are subject to change wnhout notice
STEREO POWER AMPLIFIER
SONY;
