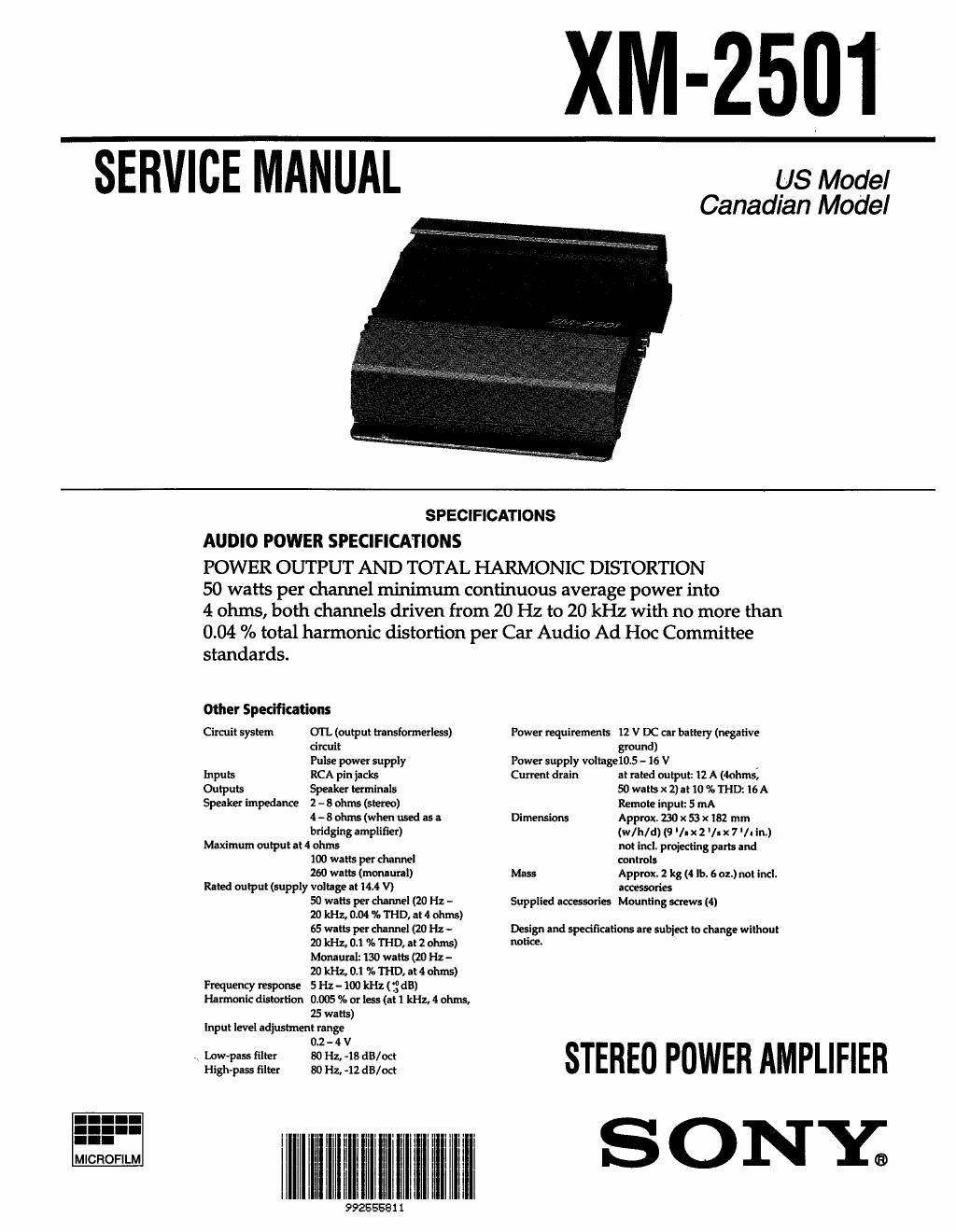

XM-2501
US Model
Canadian Model
SERVICE MANUAL
SPECIFICATIONS
AUDIO POWER SPECIFICATIONS
POWER OUTPUT AND TOTAL HARMONIC DISTORTION
50 watts per channel minimum continuous average power into
4 ohms, both channels driven from 20 Hz to 20 kHz with no more than
0.04 "/0 total harmonic distortion per Car Audio Ad Hoc Committee
standards.
Other Specifications
Circuit system OTL (output transfonnerlas)
circuit
Pulse power supply
Inputs RCA pin jacks
Outputs Speaker terminals
Speaker impedance 2 - 8 ohms (stereo)
4 - 8 ohms (when used as a
bridging amplifier)
Maximum output at 4 ohms
100 watts per channel
260 watts (mun-urn!)
Rated output (supply voltage at 14.4 V)
50 watts per channel (20 Hz -
20 kHz, 0.04 % THD, at 4 ohms)
65 wattsperchannelaDHz-
20 kHz, 0.1 % THD, at 2 ohms)
Monaural: 130 watts (29 Hz -
20 kHz, 0.1 '36 THD, at 4 ohms)
Frequency response 5 Hz- 100 kHz (de)
Harmonic distortion 0.005 36 or kss (at 1 kHz, 4 ohms,
25 watts)
Input level adjustment range
0.2 - 4 V
Low-pass filter 80 Hz, ~18 dB/oct
High-pass filter 80 Hz, -12 dB/oct
iIllillillllllllllllllllllliiillllliilll
99255581 1
Power requirements 12 V DC car battery (negative
ground)
Power supply voltagele - 16 V
Current drain at rated output: II A ohms;
50 watts x 2)at10 % THD: 16A
Remotz input: 5 mA
Approx. 730 x 53 x 132 mm
(w/h/d) (9 'Inx 2 'I: x 7 '/4 in.)
not incl. proiectlng parts and
controls
Mass Approx. 2 kg (4 lb. 6 oz.) not Incl.
accessories
Supplied amries Mounting screws (4)
Dimensions
Design and specificatiors are subiect to change without
notice.
STEREO POWER AMPLIFIER
SONY;
