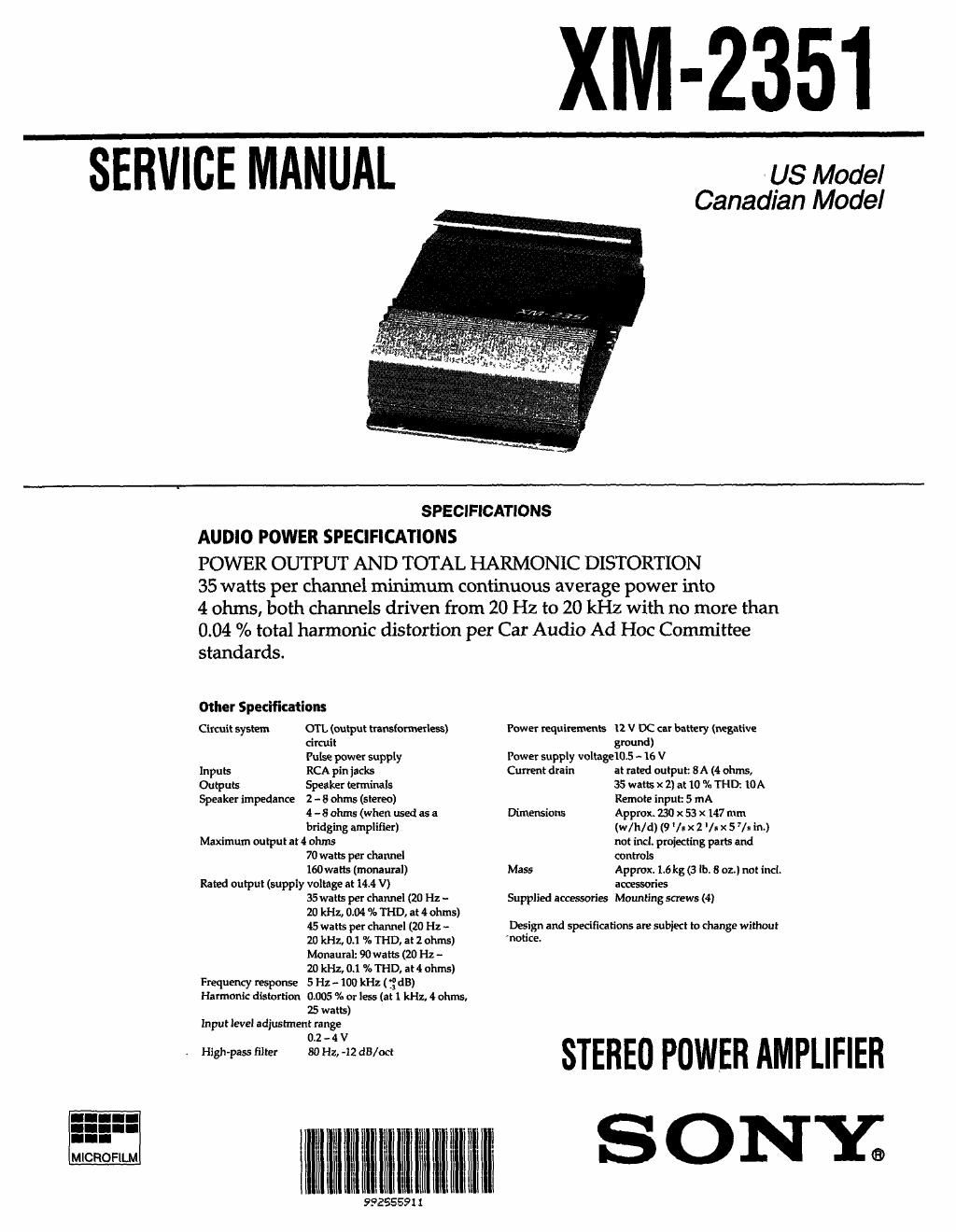

XM-2351

SERVICE MANUAL US Model

Canadian Model

SPECIFICATIONS
AUDIO POWER SPECIFICATIONS
POWER OUTPUT AND TOTAL HARMONIC DISTORTION
35 watts per channel minimum continuous average power into

4 ohms, both channels driven from 20 Hz to 20 kHz with no more than
0.04 % total harmonic distortion per Car Audio Ad Hoc Committee

standards.
Other Specifications
Circuit system 01' L (output transformexless) Power requirements I2 V DC car battery (negative
circuit ground)
Pulsiz power supply Power supply voltagelos - ls V
Inputs RCA pin jacks Current drain at rated output: 8 A (4 ohms,
Outputs Speaker terminals 35 watts x 2) at 10 To THD: 10A
Speaker impedanm 2 - 8 ohms (stereo) Remote input: 5 mA
4 -8 ohms (when used as a mnensions Approx 230 x 53 X147 mm
bridging amplifier) (w/h/d) (9 '/n x 2 '/s x 5 7/» in.)
Maximum output at 4 ohms not incl. projecting parts and
70 watts per channel controls
160 watts (momural) Mass Approx 16 kg (3 lbi 3 oz.) not incli
Rated output (supply voltage at 14.4 V) accessories
35watls per channel (20 Hz - Supplied accessories Mounting screws (4)
20 kHz, 0.04 % THD, at 4 ohms)
45 watts per channel (20 Hz - Design and specifications are subject to change without
20 kHz, 0.1 % THD, at 2 ohms) mica-
Monaural: 90watts (20 Hz -
20 kHz, 0.1 %THD, attl ohms)

Frequency response 5 Hz - 100 kHz (1: dB)
Harmonic distortion 0.005 X. or less (at 1 mt 4 ohm,
25 watts)
Input level adjustment range
02 -4 V

Wm WW STEREO POWER AMPLIFIER
