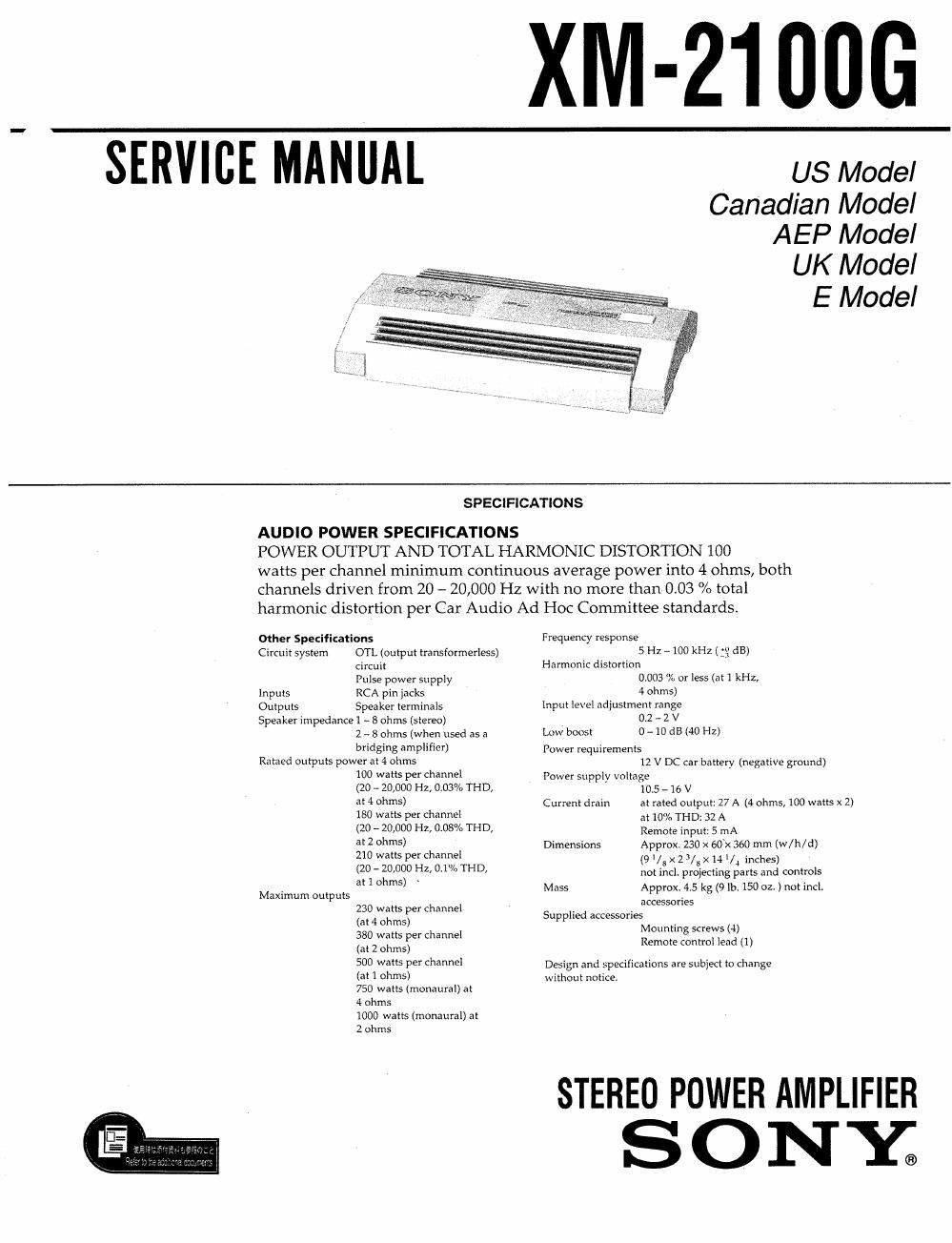

Page 1

XM-21UOG

SERVICE MANUAL

US Model
Canadian Model
AEP Model

UK Model

E Model

SPECIFICATIONS

AUDIO POWER SPECIFICATIONS

POWER OUTPUT AND TOTAL HARMONIC DISTORTION 100

watts per channel minimum continuous average power into 4 ohms, both
channels driven from 20 - 20,000 Hz with no more than 0.03 % total
harmonic distortion per Car Audio Ad Hoc Committee standards.

other Specifications

Circuit system OTL (output transformerless)
circuit
Pulse power supply

Inputs RCA pm jacks

Outputs Speaker terminals

Speaker impedance 1 - 8 ohms (stereo)
2 - 8 ohms (when used as a
bridging amplifier)
Rataed outputs power at 4 ohms
100 watts per channel
(20 - 20,000 Hz, 0.03% TH D,
at 4 ohms)
180 watts per channel
(20 - 20,000 Hz, 0.08% THD,
at 2 ohms)
210 watts per channeI
(20 4 20,000 HZ, 0.1% THE
at 1 ohms)
Maximum outputs
230 watts per channel
(at 4 ohms)
380 watts per channei
(at 2 ohms)
500 watts per channeI
(at 1 ohms)
750 watts (monaural) at
4 ohms
1000 watts (monaural) at
2 ohms

Frequency response
5 HZ- 100 kHz (3 dB)
Harmonic distortion
0.003 "r. or less (at 1 kHz,
4 ohms)
input level adjustment range
0.2 -- Z V
0 - 10 dB (40 Hz)
Power requirements
12 v DC car battery (negative ground)
Power supply voltage
105 - 16 V
at rated output: 27 A (4 ohms, mo watts x 2)
at10% THD: 32 A
Remote input: 5 mA

Low boost

Current dram

Dimensions Approx. 230 x 60x 360 mm (w/h/d)
(9 /K x 2 3/3x14I/r inches)
not incl. projecting parts and controls

Mass Approx. 4.5 kg (9 lb. 150 oz. ) not incI.
accessories

Supplied accessories

Mounting screws (4)
Remote control lead (1)

Design and specifications are subject to change
without notice.

STEREO POWER AMPLIFIER
ONY;
