Extracted text from sony xm 2020 service manual (Ocr-read)

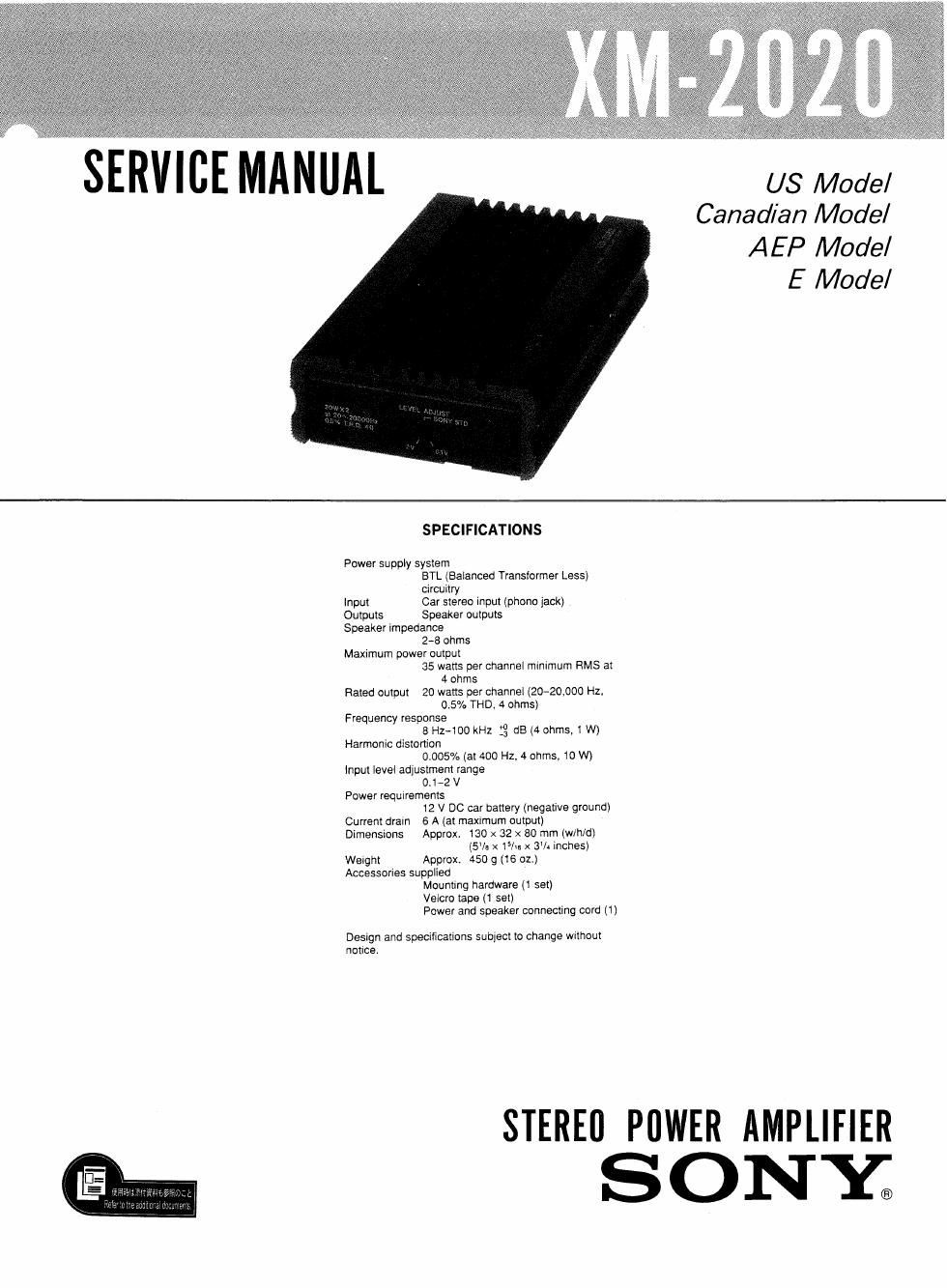

Page 1
SERVICE MANUAL US Model
Canadian Model
AEP Model
E Model
SPECIFICATIONS
Power supply system
BTL (Balanced Transformer Less)
circuitry
input Car stereo input (phone jack)
Outputs Speaker outputs
Speaker impedance
2-8 ohms
Maximum power output
35 watts per channel minimum RMS at
4 ohms
Rated output 20 watts per channel (EU-20,000 Hz.
0.5% THD, 4 Ohms)
Frequency response
a Hz-100 kHz 3 dB (4 ohms. l W)
Harmonic distortion
0.005% (at 400 Hz, 4 ohms, 10 W)
Input level adjustment range
0,1-2 V
Power requirements
12 V DC car battery (negative ground)
Current dram 6 A (at maximum output)
Dimensions Approx. 130 x 32 x 80 mm (w/h/d)
(5% x 15/): x 3V1 inches)
Weight Approx. 450 g (16 02,)
Accessories supplied
Mounting hardware (1 set)
Velcro tape (1 set)
Power and speaker connecting cord (1)
Design and specifications subject to change without
notice
STEREO PUWER AMPLIFIER
SONY;
Page 2
XM-2020
OSERVICE NOTE
Note on Repairing
Grounding terminals for the preamplifier section and for the
power amplifier section are not connected. Be sure to con-
nect them before operation.
Note on Measuring Voltage
In measuring voltage, connect the grounding terminals for
the preamplifier section and the power amplifier section.
SECTION 1
GENERAL
féiéfiflifiéftfiéfii
o «many
Contrng
The input level can be varied with this control.
Use it to adjust the input sound level when
using source equipment of other manufacturers,
Be sure to set the control to SONY STD it the
unit is connected to a SONY car stereo. Turn it
to 0.1 V when the input level of the cassette car
stereo or CD player seems low.
SONY STD
Car stereo
Auto»StereogeraI
Remote control lead
Fernsteuerleitung Right channel
Rechter kanal
Line output
Line-Ausgang
Blue/White striped
Biau»WeiB gestreitt
Lit h eI
fij Likirillar
3'3 White/Black
kw striped
Wei BISchwarz Q a
gestreilt
XM-2020
To a metal point at the car
. Len speaker
an Metallteil des Wagens Yellow
6er Linker
To the +12 V Wh' -o 53m Lautsprecher
power terminal rte o 0
which is energized _ Well;
at all time Fuse (8 A) Gray/Slack
tnpe
An +12 V AnscthB Sicherung (B A) s
des Bordnetzes. Grau/Schwarz Q a
der stats unter gestrelfl m; Right speaker
Strorn steht.
Rechter
Lautsprecher
Gray 0 0
Grau
Be sure to connect the blue/white striped lead with the remote control lead at the car stereo.
Daraul achten, dais die blau/weit! gestreifte Leitung mit der Fernsteuerleitung der Auto-Stereoanlage
verbunden ist.
izi
