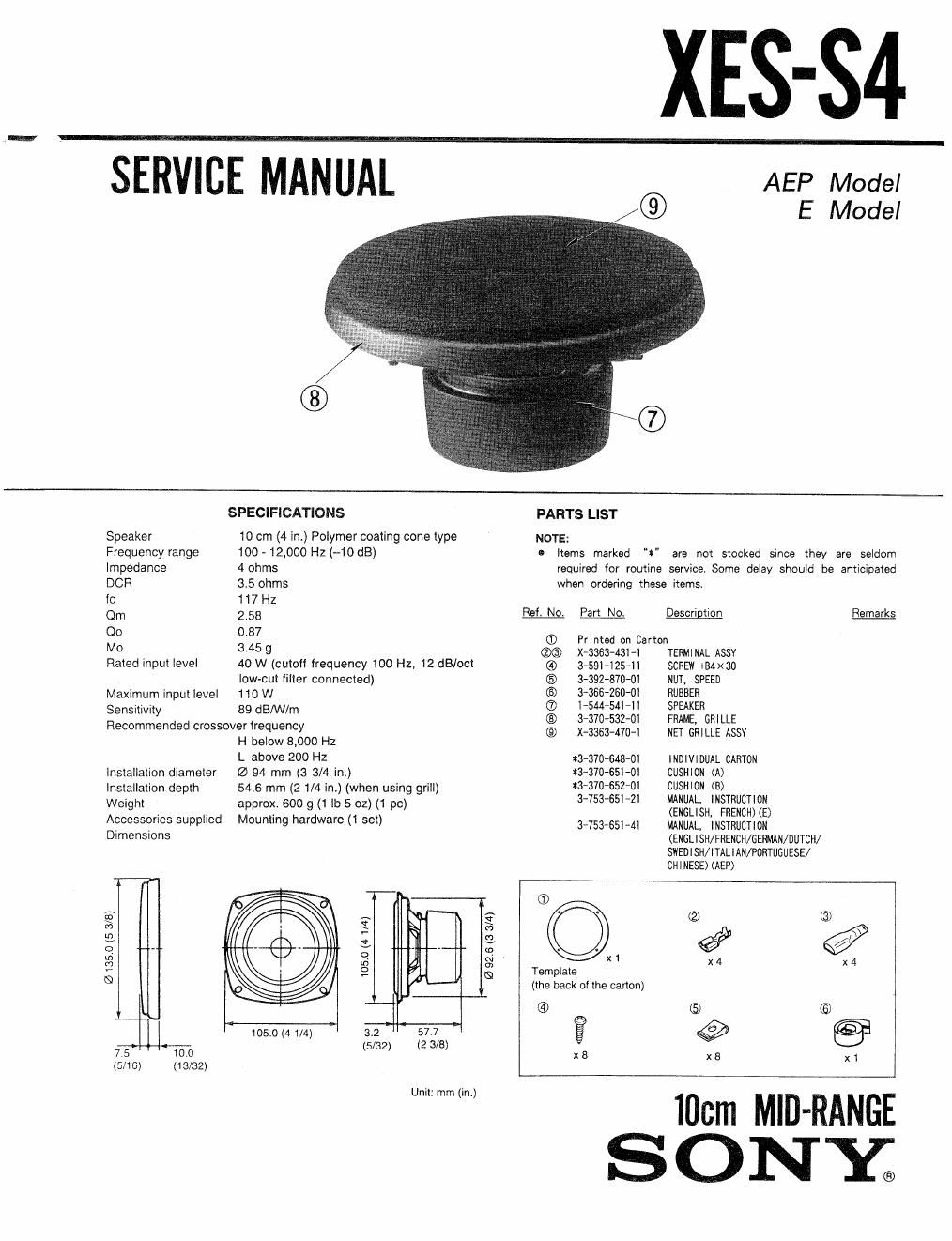

XES-S4

SERVICE MANUAL

AEP Model
E Model

SPECIFICATIONS
Speaker 10 cm (4 in.) Polymer coating cone type
Frequency range 100 - 12,000 Hz (-10 dB)
Impedance 4 ohms
DCR 35 ohms
to 117 Hz
Om 2.58
00 087
Mo 3.45 g

40 W (cutoff frequency 100 Hz, 12 dB/oct
low-cut filter connected)

Maximum input level 110 W

Sensitivity 89 dBNV/m

Recommended crossover lrequency

H below 8,000 Hz

L above 200 Hz

(a 94 mm (8 3/4 in,)

Installation depth 54.6 mm (2 1/4 in.) (when using grill)
Weight approx. 600 g (1 lb 5 oz) (1 pc)
Accessories supplied Mounting hardware (1 set)
Dimensions

Rated input level

Installation diameter

S I A
F: E
m .-
v V
o _ - v
m C?
2 e
8 L '
| 105.0 (4 1/4) 3.2 57.7
2 3/8
7.5 ' 10 0 (5/32) I I
(5/16) (13/32)
Unit: mm (in)

PARTS LIST

NOTE:

0 Items marked "it" are not stocked since they are seldom
required for routine service. Some delay should be anticipated
when ordering these items.

0 92.6 (3 3/4)

W Part NO- mm m
® Printed on Carton
®® X-3363-431-l TERMINAL Assv
® 3-591-12541 SCREW +BAX30
© 3*392-870-01 NUT, SPEED
© 3-366»260-01 RUBBER
® l»544*54H1 SPEAKER
3-370-532-01 FRAME. GRILLE
© x-3363»470-I NET GRILLE ASSV
#3-370-648-01 INDIVIDUAL CARTON
t34370-651-Ol CUSHION (A)
:3-370-652~ot CUSHION (a)
3-753-651-2l MANUAL, INSTRUCTION
(ENGLISH, FRENCH) (E)
3~753»651-4I MANUAL, INSTRUCTION
(ENGLISH/FNEHCH/GEIIMAN/DUTCH/
SHEDISH/ITALIAN/PORTUGUESE/
CHINESE) (AEP)
(D
(2 ®
6
x 4 x 4
Template
(the back ol the carton)
® 6) (G)
E s?» @
x 8 x 8 x 1

10cm MID-RANGE
ONY®

Page 2

ES- 54

SYSTEM CONNECTION EXAMPLE

4WAY

Crossover network
(such as XES-X1)

LOW L0 HI HIGH
-MlD -MID

Power amplifier Power amplifier Power amplilier Power amplifier

(such as (such as (such as (such as

XES-M3) XES-MU XES-Ml) XES-M1)
XES-S12 XESvSS XES»84 XES-SZ

Removing grill net

FREQUENCY RESPONSE

9- 956-617-12

(an) 19A9I "1an

Output level, directional frequency response/harmonic dislonion/impedance

lOO
90
BO
70
60
50
40

30

20

ID

020 50 100 200 2K 5K 10K 20K 50K
Frequency (Hz)

Teniary harmonic Secondary harmonic distortion

Measured in a lightly closed
box of 100 1 capacity

Sony Corporation
Mobil Electronics Group

(sumo) eouepadun

Englluh
91H1649-1
Printed in Japan
@1991. 8

2 Publiohtd by Cuuomsr Relations and Servicl Group
