Sony wm gx 221 service manual

This is the 26 pages manual for sony wm gx 221 service manual.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 26
left right

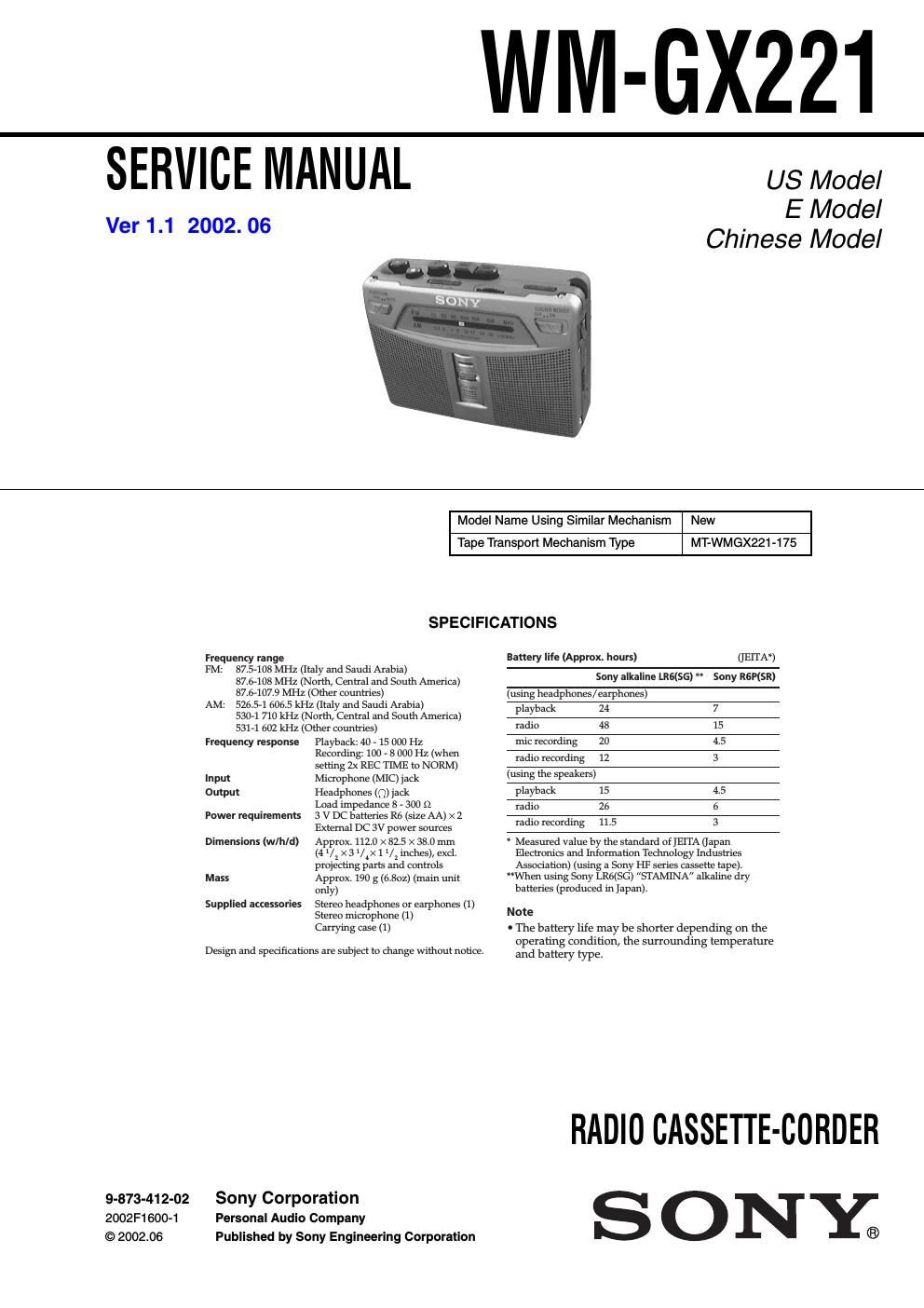

sony wm gx 221 service manual

Extracted text from sony wm gx 221 service manual (Ocr-read)

Page 2

3 WM-GX221 SECTION 1 SERVICE NOTE In this set, record/play mode is detected using the switch S704 (TAPE POWER). S704 is mounted on the MAIN board. If MAIN board is removed, it becomes impossible to detect record/play mode. Where MAIN board is removed, when you measure operation and voltage of each part of the mechanism deck, please turn on S704. -“ MAIN BOARD (SIDE A) - S704
