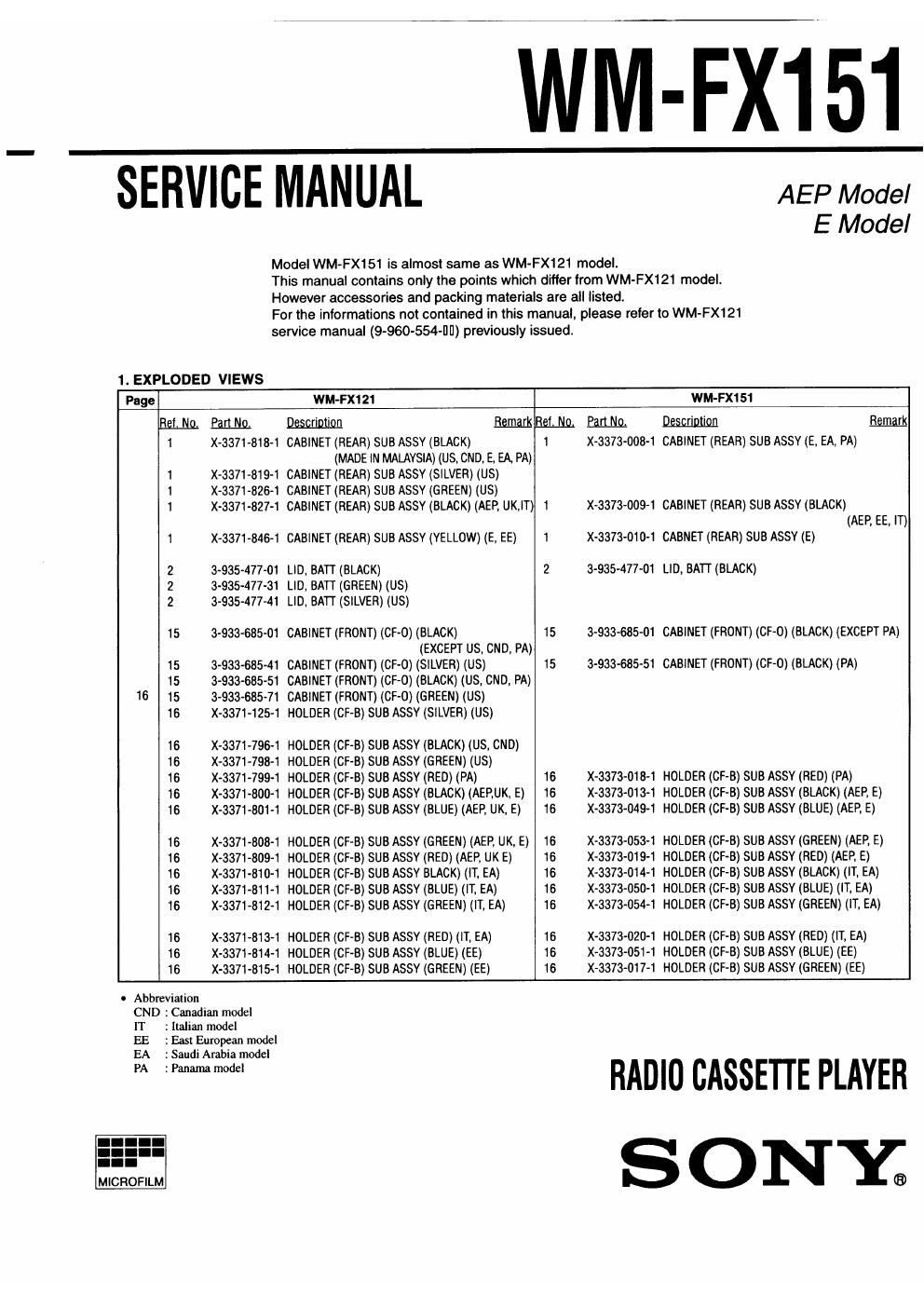

Sony wm fx 151 service manual

Page 2

Page WM-FX121 WM-FX151
Ref. No. Pan Mg. m Remark ReL No, Fan No. Desgriution 3mm
16 X-3371-816-1 HOLDER (CFB) SUB ASSY (RED) (EE) 16 X-3373-021-1 HOLDER (CF-B) SUB ASSY (RED) (EE)
16 X-3371-817-1 HOLDER (CF-B) SUB ASSY (YELLOW) (PA) 16 X-3373-022-1 HOLDER (CF-B) SUB ASSY (YELLOW) (PA)
16
16 X-3371-848-1 HOLDER (CF-B) SUB ASSY (BLACK) (EE) 16 X-3373-015-1 HOLDER (CF-B) SUB ASSY (BLACK) (EE)
16 X-3371-229-1 HOLDER (CF-B) SUB ASSY (BLACK) (PA) 16 X-3373-276-1 HOLDER (CF-B) SUB ASSY (BLACK) (PA)
16 x-3371-230-1 HOLDER (CF-B) SUB Assv (BLUE) (PA) 16 x-3373-o1 8-1 HOLDER (CF-B) SUB ASSY (BLUE) (PA)

2. ACCESSORIES 8: PACKING MATERIALS

Some delay should be anticipated when ordering these items.

- Abbreviation

EE : East European model
EA : Saudi Arabia model
PA : Panama model
Ref. N9. EMU, mm Remark
1-505-521-11 HEADPHONE (MDR-023) (AER IT, EE)
* 3-008-913-01 INDIVIDUAL CARTON (AEP, IT EE)
* 3.003.91491 INDIVIDUAL CARTON (E, EA)
* 3-008-915-01 INDIVIDUAL CARTON (E)
* 3-008-916-01 INDIVIDUAL CARTON (PA)
* 3-008-925-01 CARTON (UPPER) (AEP)
* 34108-92601 CARTON (LOWER) (AEP)
3-858-340-21 MANUAL, INSTRUCTION(ENGLISH, FRENCH.
GERMAN, ITARIAN, DUTCH, SWEDISH, SPANISH,
PORTGUESE) (AEP, IT EE)
3-858-340-31 MANUAL, INSTRUCTION
(POLISH, CZECH, GREEK, TURKISH) (AEP)
3-858-340-41 MANUAL, INSTRUCTION
(RUSSIAN, HUNGARIAN, BULGARIAN) (EE)
3-858-340-51 MANUAL, INSTRUCTION (ENGLISH, SPANISH,
CHINESE, KOREAN) (E, EA, PA)
3»858-340-61 MANUAL, INSTRUCTION (ENGLISH, FRENCH.
GERMAN, ITARIAN, DUTCH, SWEDISH, SPANISH,
PORTGUESE) (AEP)
3-858-340-71 MANUAL, INSTRUCTION
(POLISH, CZECH, GREEK, TURKISH) (AEP)
3-858-340-81 MANUAL, INSTRUCTION
(ENGLISH, SPANISH, CHINESE, KOREAN) (E)
3-933-648-01 CLIP, BELT
8-953-130-90 HEDPHONE MDR-E801//K SET (E, EA, PA)
Sony Corporation
9-923-130-11 Personal A&V Products Company

: Italian model

Ilems marked *" are not stocked since they are seldom required for routine service.

-2-

97A0569-1

Printed in Singapore @1997, 1
Publlshed by Ouullly Englnoorlng Dept.
