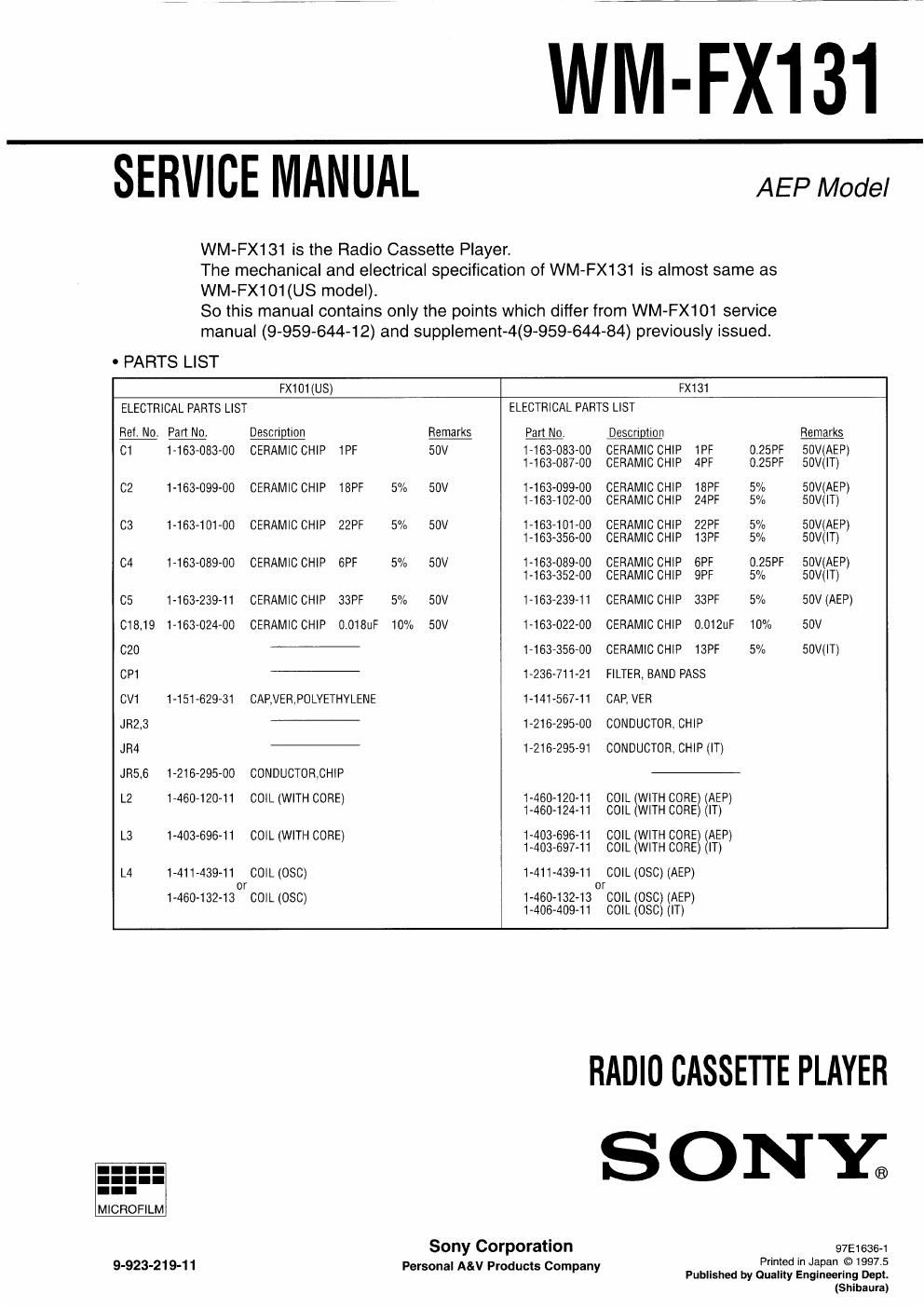

WM-FX131
SERVICE MANUAL
WM-FX131 is the Radio Cassette Player.
The mechanical and electrical specification of WM-FX131 is almost same as
WM-FX101(US model).
So this manual contains only the points which differ from WM-FX101 service
manual (9-959-644-12) and supplement-4(9-959-644-84) previously issued.
AEP Model
- PARTS LIST
FX101(US) FX131
ELECTRICAL PARTS LIST ELECTRICAL PARTS LIST
Ref. No. Part No. Descrigtion Remarks Part No. Description Remarks
Cl 1-163-08300 CERAMIC CHIP 1PF 50V 1-163-083-00 CERAMIC CHIP 1PF 0.25PF 50V(AEP)
1-163-087v00 CERAMIC CHIP 4PF 0.25PF 50V(IT)
C2 1-163-099-00 CERAMIC CHIP 18PF 5% 50V 1-163-099-00 CERAMIC CHIP 18PF 5% 50V(AEP)
1463-10200 CERAMIC CHIP 24PF 5% 50V(IT)
CS 1-163-101-00 CERAMIC CHIP 22PF 5% 50V 1-163-101-00 CERAMIC CHIP 22PF 5% 50V(AEP)
1-163-356-00 CERAMIC CHIP 13PF 5% 50V(I T)
C4 1-163-089-00 CERAMIC CHIP SPF 5% 50V 1-163-089-00 CERAMIC CHIP 6PF 0,25PF 50V(ATEP)
1-163-352-00 CERAMIC CHIP 9PF 5% 50V(l T)
C5 1-163-239-11 CERAMIC CHIP 33PF 5% 50V 1463-23941 CERAMIC CHIP 33PF 5% 50V (AEP)
018.19 1-163-024-00 CERAMIC CHIP 0.01 SuF 10% 50V 1463-022-00 CERAMIC CHIP 0.012uF 10% 50V
020 1-163-356-00 CERAMIC CHIP 13PF 5% 50V(IT)
CP1 1-236-711-21 FILTER. BAND PASS
CV1 1v151~629-31 CAP.VER,POLYETHYLENE 1-141-567-11 CAP. VER
JR2,3 1-216-295-00 CONDUCTOR, CHIP
JR4 1416-29581 CONDUCTOR, CHIP (IT)
JR5.6 1-216»295-00 CONDUCTORCHIP
L2 1-460-120-11 COIL (WITH CORE) 1-460-120-11 COIL WITH CORE (AEP)
1460-12441 COIL WITH CORE (I)
L3 1403-69641 COIL (WITH CORE) 1-403-696-11 COIL (WITH CORE) (AEP)
1-403-697-11 COIL WITH CORE (IT)
L4 1411-43941 COIL (OSC) 1-411-439 11O COIL (use) (AEP)
or
1-460-132-13 CO|L(OSC) 1 460132-130rSCO|L(OC()(A)EP
1--406 409-11 CO|L(OS C() (IT)
