Sony wm fs 595 service manual
This is the 29 pages manual for sony wm fs 595 service manual. Read or download the pdf for free.
If you want to contribute, please mail your pdfs to info@audioservicemanuals.com .
Download PDF
Extracted text from sony wm fs 595 service manual (Ocr-read)

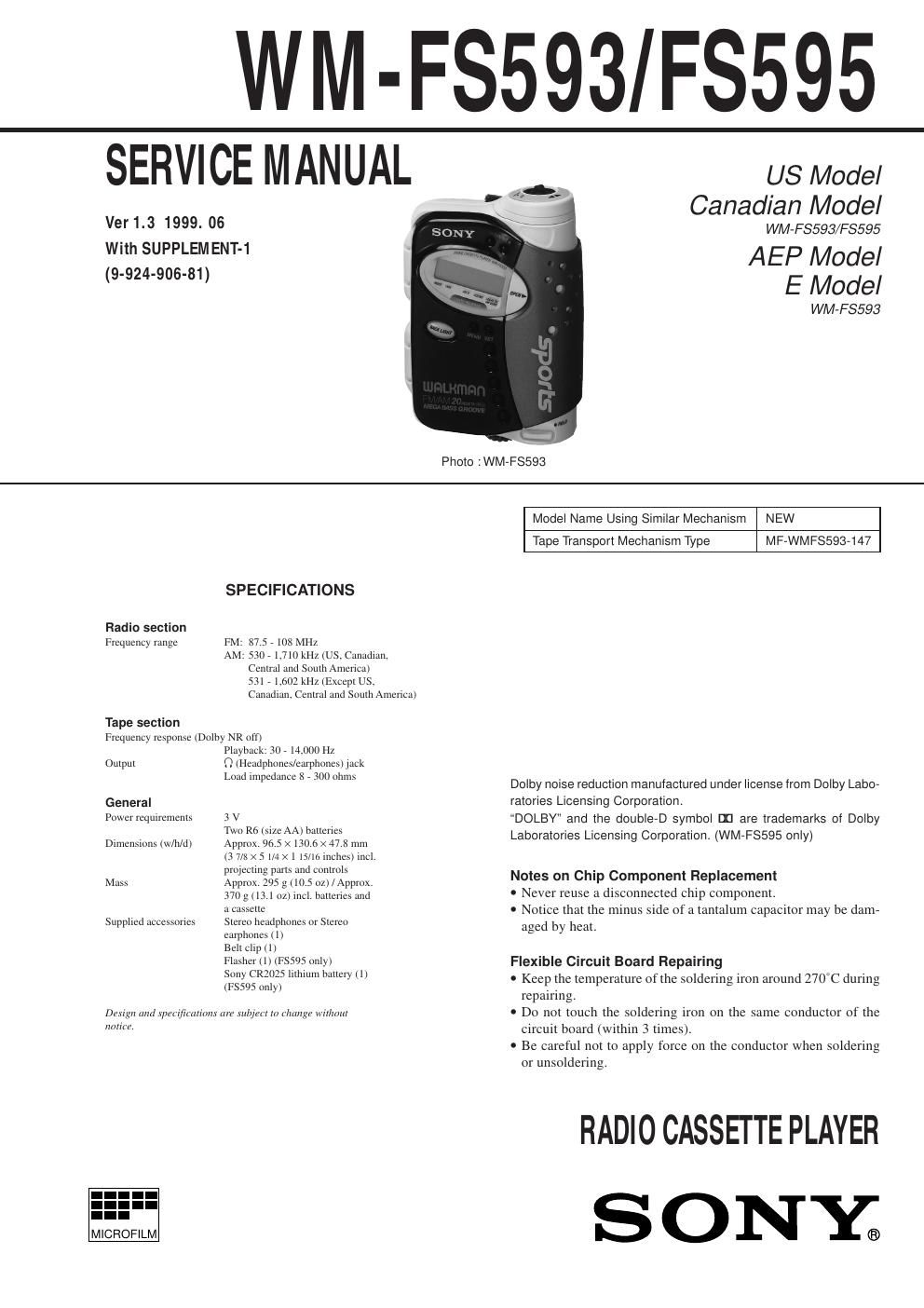

Page 1
Ð 2 Ð
TABLE OF CONTENTS
1. SERVICE NOTE
1-1. Moisture Resistant Treatment ............................................. 3
2. GENERAL
Getting Started ........................................................................ 6
Operating the Walkman .......................................................... 6
Additional Information ........................................................... 7
3. DISASSEMBLY
3-1. Display Board ..................................................................... 8
3-2. Mechanism Block ............................................................... 8
3-3. Main Board ......................................................................... 9
3-4. Mechanism Deck ................................................................. 9
3-5. Headphone Board .............................................................. 10
3-6. Control Board .................................................................... 10
4. MECHANICAL ADJUSTMENTS............................ 11
5. ELECTRICAL ADJUSTMENTS............................. 11
6. DIAGRAMS
6-1. Block Diagram .................................................................. 13
6-2. Printed Wiring Boards ÐMain SectionÐ ............................ 15
6-3. Schematic Diagram ÐMain SectionÐ ................................. 17
6-4. Printed Wiring Board ÐDisplay SectionÐ .......................... 20
6-5. Schematic Diagram ÐDisplay SectionÐ ............................. 21
6-6. IC Pin Description ............................................................. 24
7. EXPLODED VIEWS
7-1. Cassette Holder Section .................................................... 26
7-2. Rear Cabinet Section ......................................................... 27
7-3. Mechanism Deck Section .................................................. 28
8. ELECTRICAL PARTS LIST..................................... 29
Page 2
Ð 3 Ð
SECTION 1
SERVICE NOTE
1-1. MOISTURE RESISTANT TREATMENT
Be sure to perform the following work when the HOLD knob and
VOL knob have been replaced in servicing:
Apply SONY grease SGL-505 (7-662-010-04) to the HOLD knob
and VOL knob at the points specified in the figure with an applica-
tor or other means.
grease applying
point (rear cabinet) grease applying
point (HOLD knob)
