Sony wm f 2065 service manual

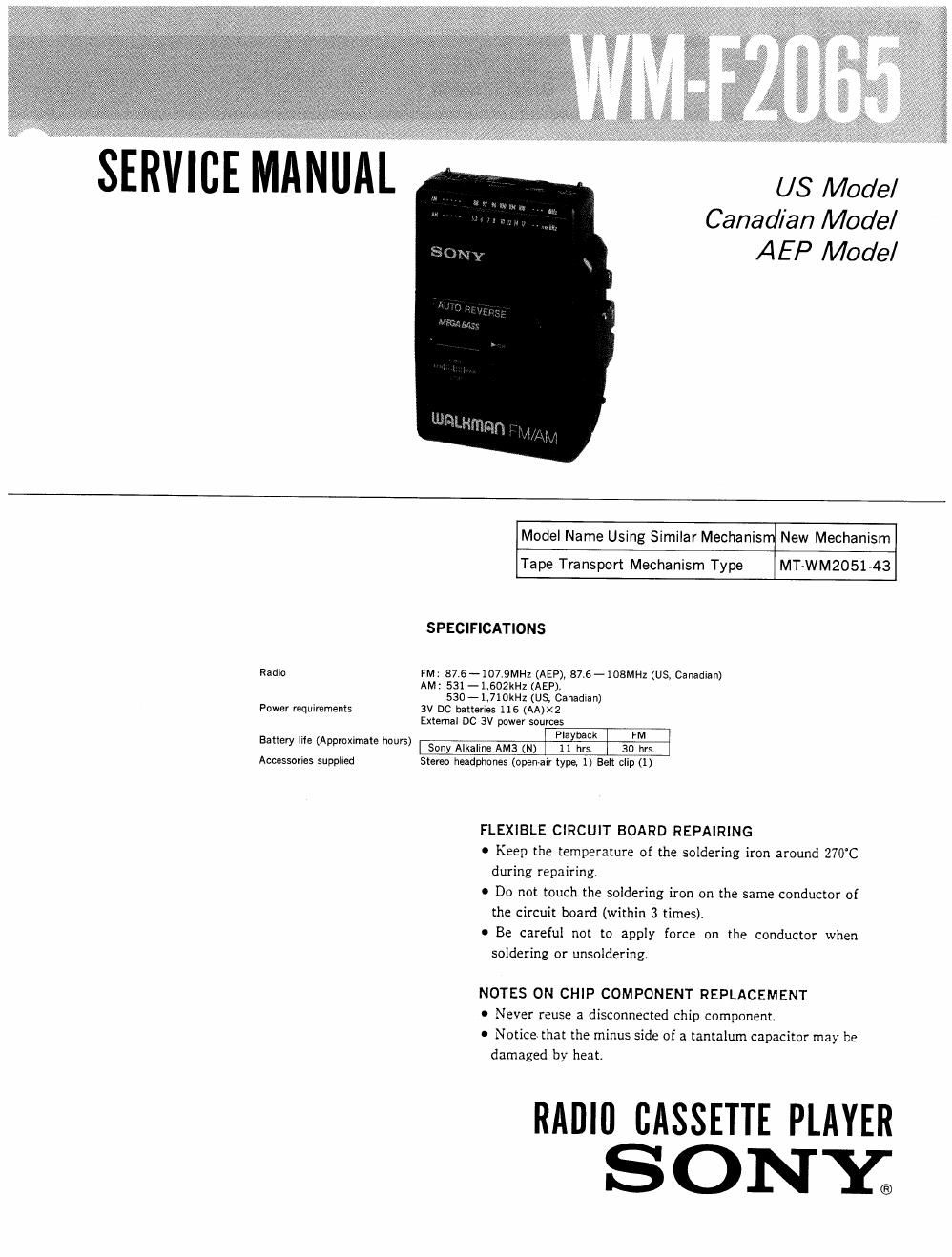

Page 1

U8 Mode/

Canadian Model

AEP Mode/

Radio

Power requirements

Battery life (Approximate hours)
Accessories supplied

Model Name Using Similar Mechanism New Mechanism

Tape Transport Mechanism Type

MT-WM2051-43

SPECIFICATIONS

FM: 87.6-107.9MHZ (AEP), 37.6- 108MHz (US, Canadian)
AM: 531-1,602kHz(AEP),
530 - 1,710kHz (US, Canadian)
3V DC batteries 116 (AA)><2
External DC 3V power sources

Fla back
Sony Alkaline AM3 (N)

Stereo headphones (openair type, 1) Belt clip (1)

FLEXIBLE CIRCUIT BOARD REPAIRING

I Keep the temperature of the soldering iron around 270°C

during repairing

0 Do not touch the soldering iron on the same conductor of

the circuit board (within 3 times).
0 Be careful not to apply force on the
soldering or unsoldering.

conductor when

NOTES ON CHIP COMPONENT REPLACEMENT
0 Never reuse a disconnected chip component.
0 Notice that the minus side of a tantalum capacitor may be

damaged by heat.

RADIO CASSETTE PLAYER
S ON Y;
