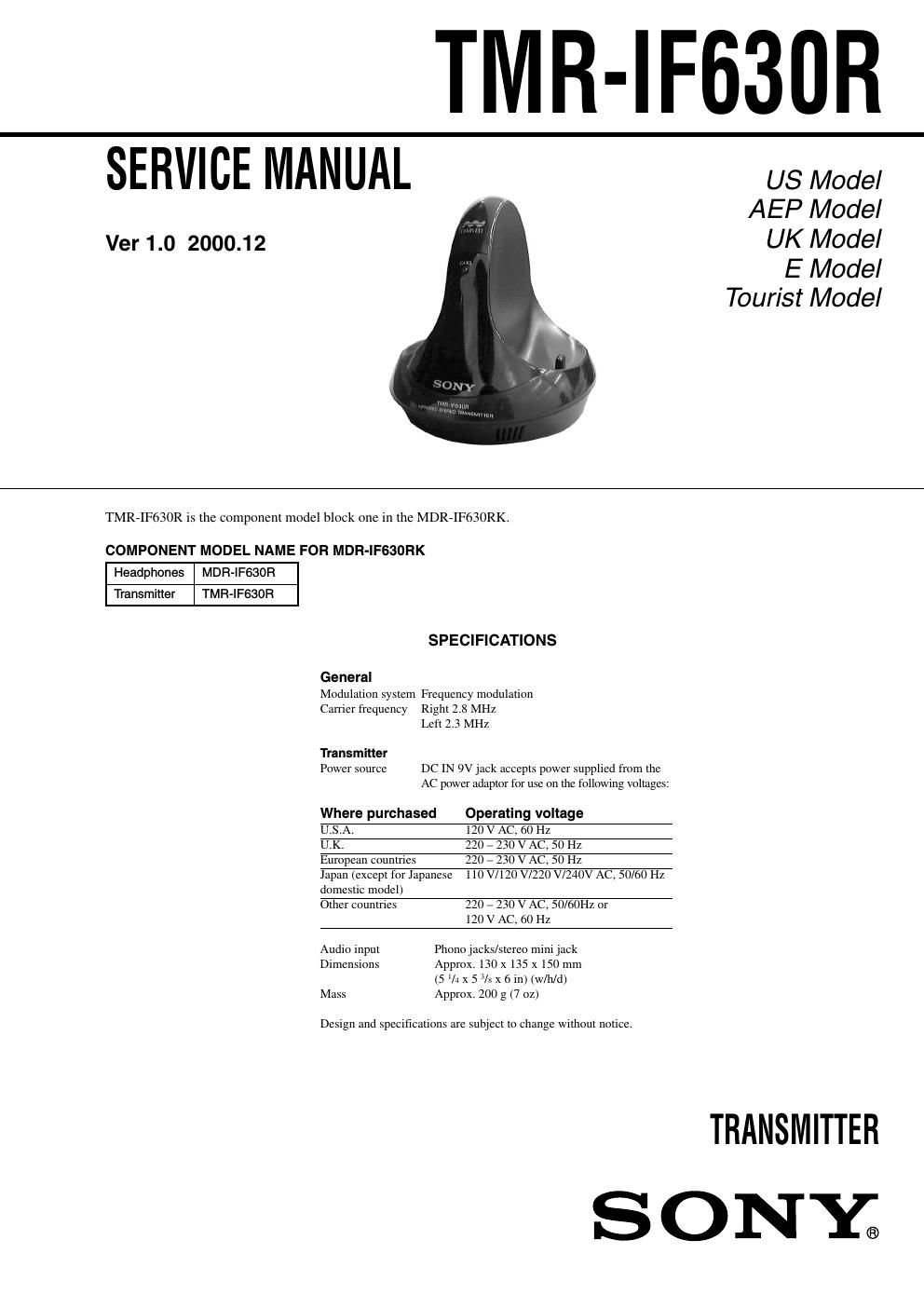

sony tmr if 630 r service manual

Extracted text from sony tmr if 630 r service manual (Ocr-read)

Page 2

- 3 - SECTION 2 DISASSEMBLY 2-1. CABINET (TOP) 2-2.TX BASE BOARD Note : Follow the disassembly procedure in the numerical order given. 2-3. TX LED BOARD Set Cabinet (top) TX BASE boar d TX LED board Note :The equipment can be removed using the following procedure. 3 Cabinet (top ) 1 Four screws (+P 2 × 8) 2 LED board (CN1) 2 TX BASE board 1 Claw 1 Two screws (+P 2 × 6) 3 Two screws (+P 2 × 6) 4 TX LED board 2 Window, luminous aa
