Sony tcm 453 v service manual

This is the 16 pages manual for sony tcm 453 v service manual.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 16
left right
sony tcm 453 v service manual

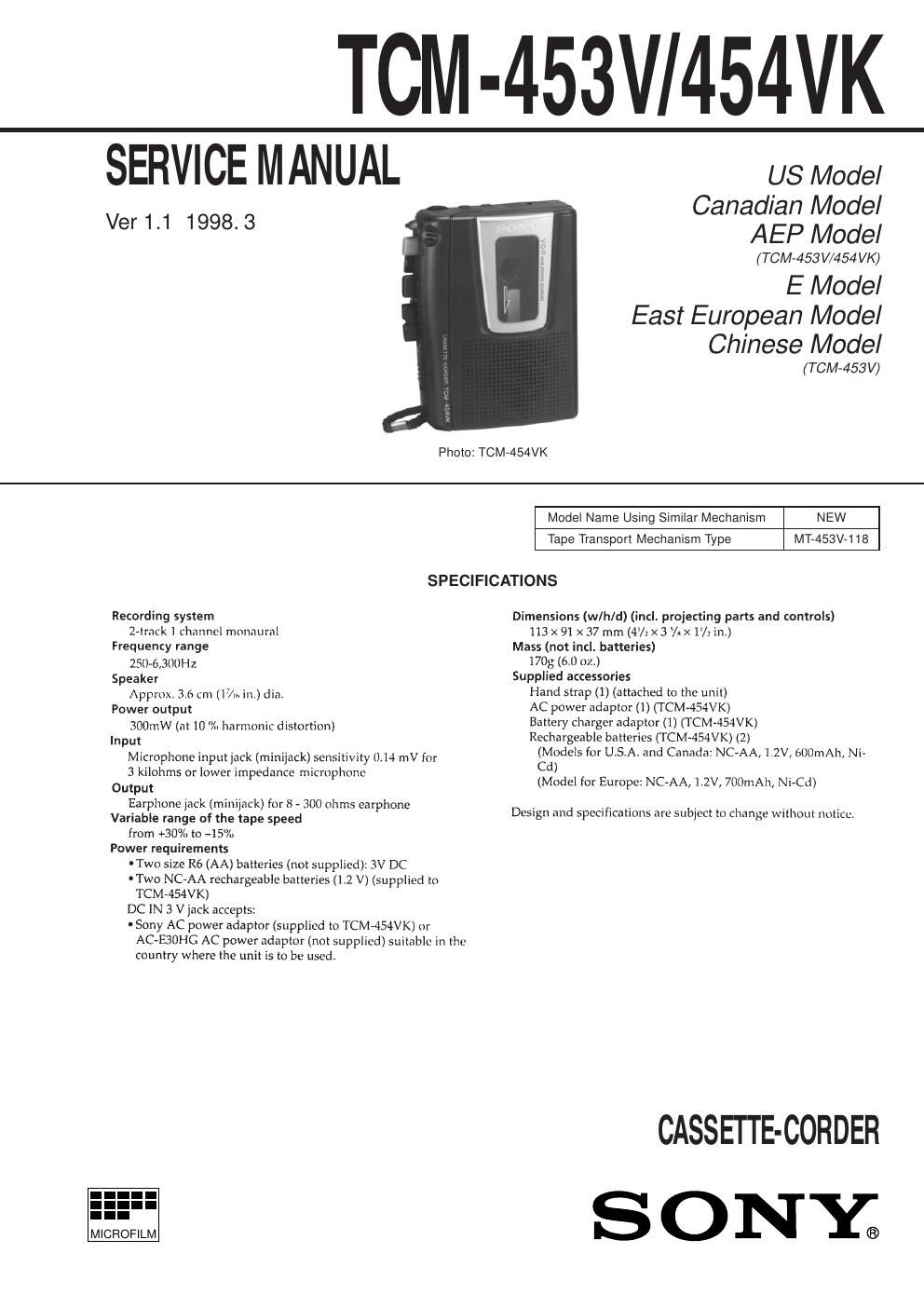

Extracted text from sony tcm 453 v service manual (Ocr-read)


Page 1

Ð 2 Ð TABLE OF CONTENTS 1. SERVICING NOTES ............................................... 2 2. GENERAL Preparing a Power Source ............................................... 3 Recording ........................................................................ 3 Playing a Tape ................................................................. 3 Maintenance .................................................................... 3 3. DISASSEMBLY ......................................................... 4 4. MECHANICAL ADJUSTMENTS ....................... 7 5. ELECTRICAL ADJUSTMENTS ......................... 8 6. DIAGRAMS 6-1. Block Diagram ................................................................ 9 6-2. Printed Wiring Board ...................................................... 11 6-3. Schematic Diagram ......................................................... 13 7. EXPLODED VIEWS ................................................ 16 8. ELECTRICAL PARTS LIST ............................... 19In this set, the S102 (power) detects REC/PLAYBACK on. It is mounted on the MAIN board, and therefore the REC/PLAY- BACK on cannot be detected with the MAIN board removed. When making an operation check and voltage check of mechani- cal deck with the MAIN board removed, fix the S102 at turn on. [MAIN BOARD] (Conductor Side) ATTENTION AU COMPOSANT AYANT RAPPORT Ë LA SƒCURITƒ! LES COMPOSANTS IDENTIFIƒS PAR UNE MARQUE ! SUR LES DIAGRAMMES SCHƒMATIQUES ET LA LISTE DES PIéCES SONT CRITIQUES POUR LA SƒCURITƒ DE FONCTIONNEMENT. NE REMPLACER CES COM- POSANTS QUE PAR DES PIéCES SONY DONT LES NUMƒROS SONT DONNƒS DANS CE MANUEL OU DANS LES SUPPLƒMENTS PUBLIƒS PAR SONY.SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK ! OR DOTTED LINE WITH MARK ! ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB- LISHED BY SONY. SECTION 1 SERVICING NOTES IC101 S102 Notes on chip component replacement ¥ Never reuse a disconnected chip component. ¥ Notice that the minus side of a tantalum capacitor may be dam- aged by heat.

Page 2

Ð 3 Ð SECTION 2 GENERAL This section is extracted from instruction manual.
