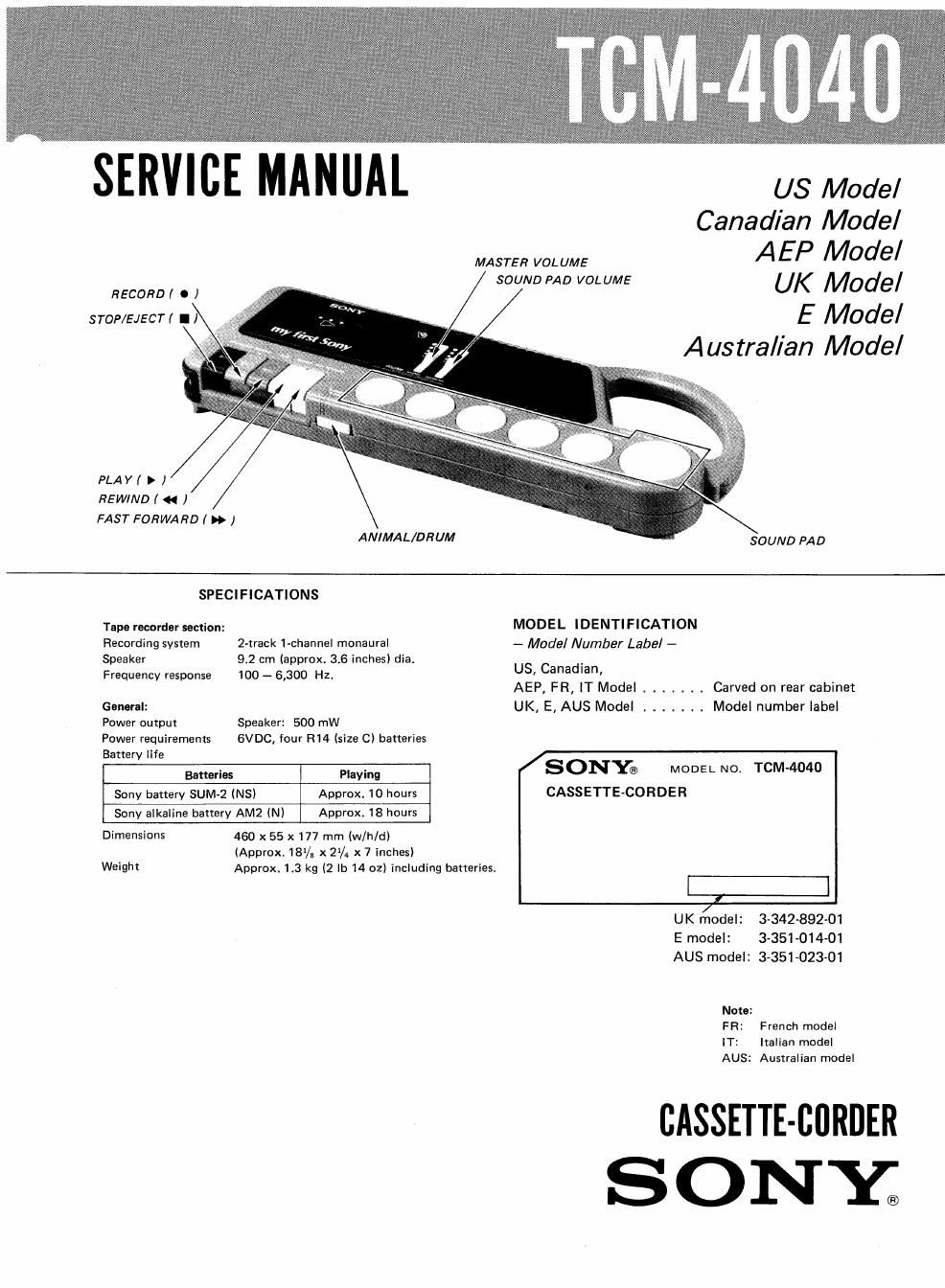

SERVICE MANUAL
RECORD I O )
STOP/EJECT( II
PLAY 1 V l
HEW/ND I « I
FAST FORWARD ( »l
ANIMAL/DRUM
MASTER VOLUME
SOUND PAD VOLUME
US Model
Canadian Model
AEP Model
UK Model
E Model
Australian Model
SOUND PAD
SPECIFICATIONS
Tape recorder section:
Recording system
Speaker
Frequency response
2-track 1-channel monaural
9.2 cm (approx. 3.6 inches) dia.
100 - 6,300 Hz.
General:
Power output
Power requirements
Battery life
Speaker: 500 mW
6VDC, four R14 (size C) batteries
Batteries
Sony battery SUM-2 INSI
Sony alkaline battery AM2 (N)
Playing
Approx. 10 hours
Approx. 18 hours
Dimensions 460 x 55 x 177 mm (wlhldl
(Approx. 181/3 x 2%. x 7 inches)
W8i9ht Approx. 1.3 kg (2 lb 14 02) including batteries.
MODEL IDENTIFICATION
- Model Number Label -
US, Canadian,
AEP, FR, IT Model ....... Carved on rear cabinet
UK, E, AUS Model ....... Model number label
SONY® MODEL No. TOM-4040
CASSETTE-COHDER
[:1
UK model: 3-342-892-01
E model: 3-351-014-01
AUS model: 3-351-023-01
Note:
FR: French model
IT: Italian model
AUS: Australian model
CASSETTE-BURDER
SONIC.
SECTION 1
DISASSEMBLY
MD BLOCK (INCLUDING MAIN BOARD) REMOVAL
slide variable resistor
(R V101, 20 1)
slide knob
screw BVTP3 x 12
{2 pch
Note: _ .
When installing MD block (Including
main board), align twa slide variable
resistors with slide knobs as illustrated.
screw PTPZ x 8
SECTION 2
MECHANICAL ADJUSTMENTS
PRECAUTION Torque Measurement
1, Clean the following parts with a denatured- Mode Torqup M019? Mm? Rudina
alcohol-moistened swab: FWD 24 to 45 g'cm
record/playback head pinch roller CQ-102C (0'33 to 062 oz'mCh)
erase head rubber belts FWD Back 1 to 3 gain .
. Tension (0,014 to 0.042 oz~mch)
capstan idlers
a . . FF 50 g~crn or more
2. Demagnemze the record/playback head With a REW CQ-ZOIB (069 oz'inch or more)
head demagnetizerl (Do not bring the head
demagnetizer close to the erase head.)
. Tape Tension Measurement
3. Do not use a magnetized screwdriver for the
adjustments. Mode Tension Meter Meter Reading
4. After the adjustments, apply suitable locking FWD CQ~403A 70 0 200 g
. (2.47 to 7.05 oz)
compound to the parts adJusted.
5. The adjustments should be performed with the
rated power supply voltage (6 V) unless other-
wise noted.
