Page 1

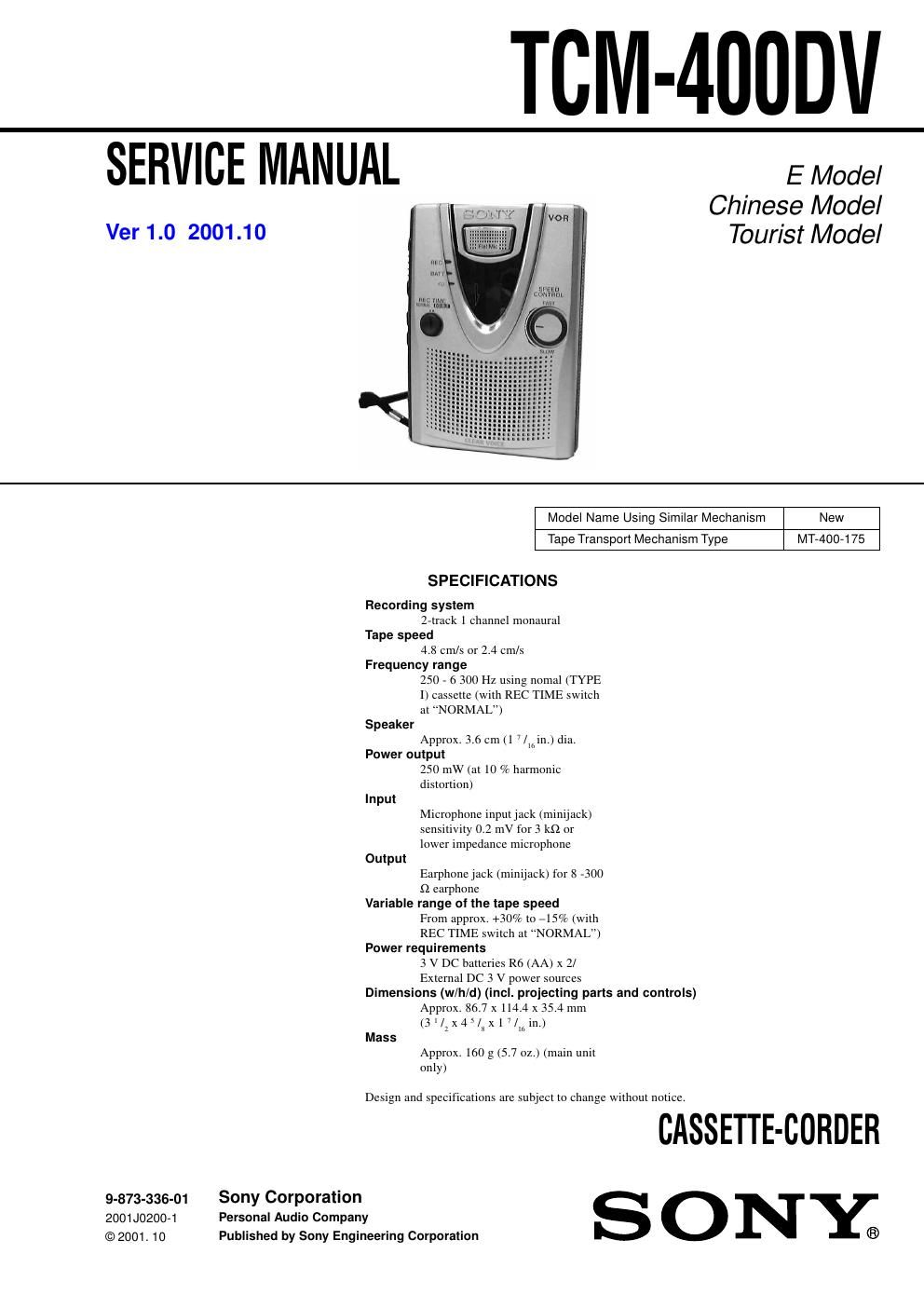

TCM-400DV
2
TABLE OF CONTENTS
1. GENERAL
................................................................... 2
2. DISASSEMBLY ......................................................... 3
3. MECHANICAL ADJUSTMENTS ....................... 5
4. ELECTRICAL ADJUSTMENTS ......................... 6
5. DIAGRAMS
5-1. Block Diagrams ...................................................... 7
5-2. Printed Wiring Board -“MAIN Board -“ ................. 8
5-3. Schematic Diagram ................................................ 9
5-4. Printed Wiring Board -“LED Board -“ .................... 10
5-5. IC BLOCK DIAGRAMS ....................................... 10
6. EXPLODED VIEWS ................................................ 11
7. ELECTRICAL PARTS LIST ............................... 15
Flexible Circuit Board Repairing
- Keep the temperature of the soldering iron around 270 ËšC dur-
ing repairing.
- Do not touch the soldering iron on the same conductor of the
circuit board (within 3 times).
- Be careful not to apply force on the conductor when soldering
or unsoldering.
Notes on chip component replacement
- Never reuse a disconnected chip component.
- Notice that the minus side of a tantalum capacitor may be dam-
aged by heat.
SECTION 1
GENERAL
This section is extracted from
instruction manual.
MIC VOLTAPE COUNTER EAR
VOR
REC TIME
REC
DC IN 3V
REW/
REVIEWSTOP
PAUSE
REC
Flat mic
SPEED CONTROL
