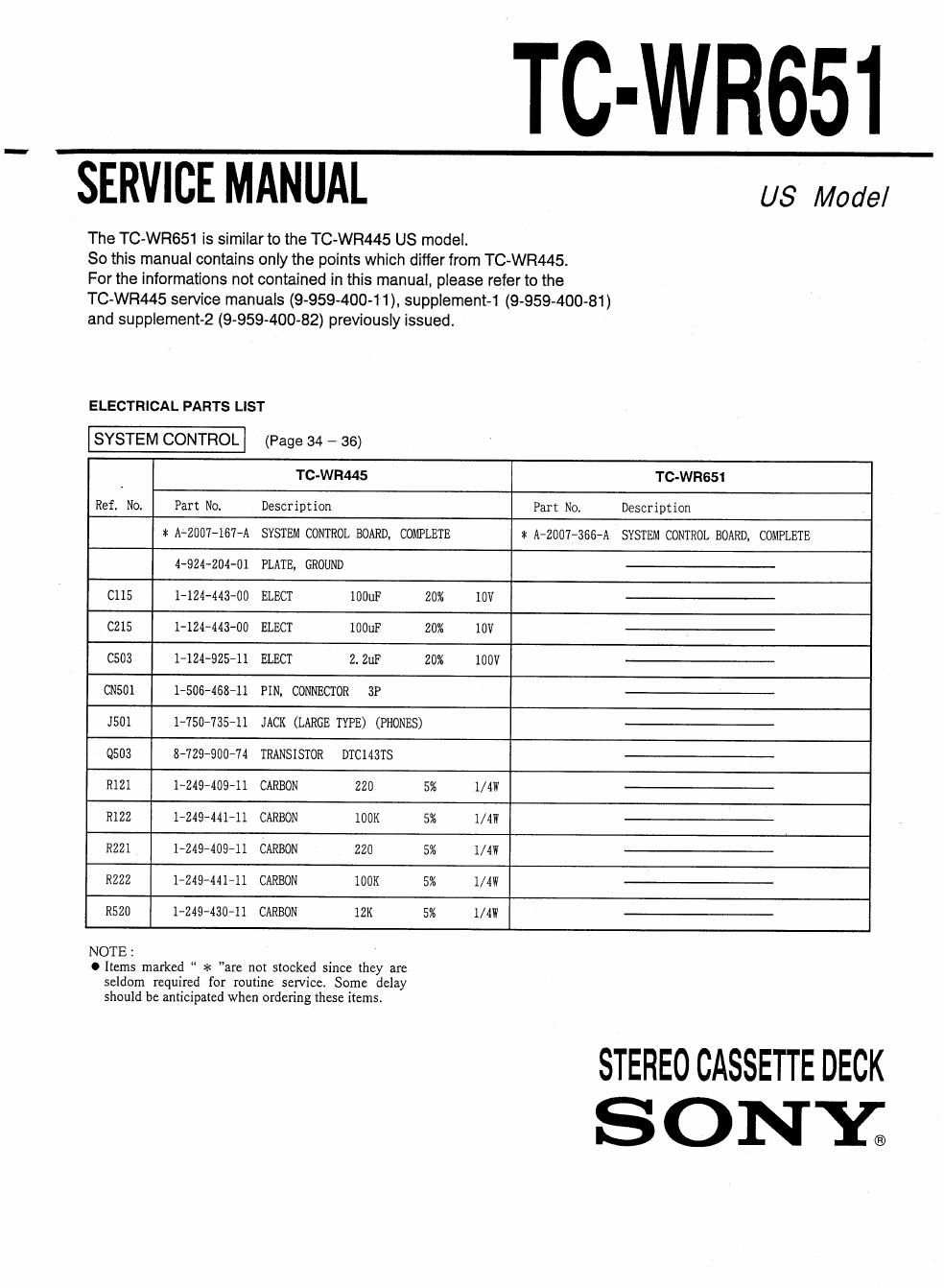

TC-WR651
SERVICE MANUAL us Model
The TC-WR651 is similar to the TC-WR445 US model.
So this manual contains only the points which differ from TC-WR445.
For the informations not contained in this manual, please refer to the
TC-WR445 service manuals (9-959-400-11), supplement-1 (9-959-400-81)
and supplement-2 (9-959-400~82) previously issued.
ELECTRICAL PARTS LIST
SYSTEM CONTROL (Page 34 - 36)
TC-WR445 TC-WR651
Ref. No. Part No. Description Part No. Description
* A-2007-167-A SYSTEM CONTROL BOARD. COMPLETE X A42007-366-A SYSTEM CONTROL BOARD, COMPLETE
4-924-204-01 PLATE, GROUND
C115 1-124-443-00 ELECT IODUF 20% 10V
C215 1-124-443-00 ELECT 100uF 20% 10V
C503 1-124-925-11 ELECT 2. 2UP 20% 100V
CN501 1-506-468-11 PIN, CONNXXITOR 3P
J501 1-750-735-11 JACK (LARGE TYPE) (PHONES)
0503 8-729-900-74 TRANSISTOR DTC143TS
R121 1-249»409-11 CARBON 220 5% UN
R122 1-249-441-11 CARBON 100K 5% l/AW
R221 1»249-409-11 CARBON 220 5% UN
R222 1-249-441-11 CARBON 100K 5% UN]
R520 1-249~430-11 CARBON 12K 5% 1/4R
NOTE:
0 Items marked >l< are not stocked since they are
seldom required for routine service. Some delay
should be anticipated when ordering these items.
STEREO CASSETTE DECK
S ON'Y.
