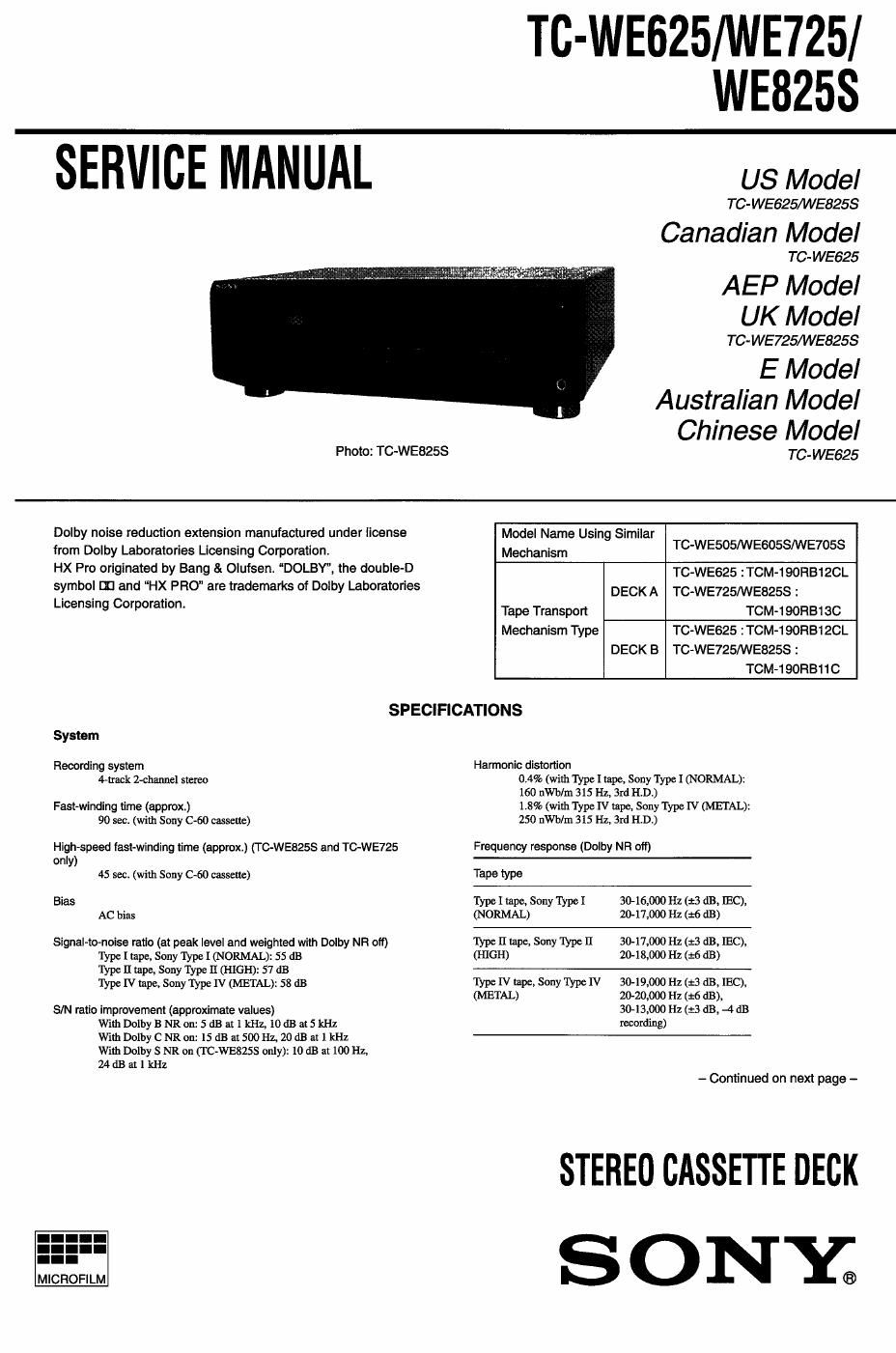

Sony tc we 825 s service manual

This is the 31 pages manual for sony tc we 825 s service manual.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 31
left right
sony tc we 825 s service manual

Extracted text from sony tc we 825 s service manual (Ocr-read)


Page 2

Wow and flutter
:t 0.13%VV. Peak (IEC)
0.00% w. RMS (NAB)
z 0.18% W. Peak (DIN)

Variable pitch range (approx)
-30 to +30%

Inputs
Line inputs (phono jacks)
Sensitivity : 0.16 V
Input impedance : 47 kilohms
Outputs
Line outputs (phono jacks)
Rated output level : 0.5 v at a load impedance of
47 kilohnrs
Load impedance : Over [0 kilohrns
Headphones (stereo phone jack)
Output level : 0.25 mW at a load impedance of
32 ohms
General

Power requirements

Where purchased Power requirements

US. Canadian 120 V AC. 60 Hz

AEP. UK, Chinese 220 - 230 V AC, 50/60 Hz

Australian 240 V AC, 50/60 Hz

Singapore. Malaysia 120/220/230 , 240 V AC, 50/60 Hz

Power consumption
30 W

Dimensions (approx) (w/h/d)
Model for UK and Australian :
430 x120 x 310 mm (w/hld)
(17 X 4 1M x 12 m in.)
Model for other countries ;
430 X 120 x 290 mm (w/hld)
including projecting parts and controls

Mass (approx.)
4.3 kg (9 lbs 8 oz)

Supplied accessories
Audio connecting cords (2 phone plugs - 2 phone
plugs) (2)
CON'IROLAI cord (supplied for Canadian models
only) (1)

Design and specifications are subject to change without
notice.

SAFETY-RELATED COMPONENT WARNINGEI

COMPONENTS IDENTIFIED BY MARK A: OR DOTI'ED LINE
WITH MARK A ON THE SCHEMATIC DIAGRAMS AND IN
THE PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE
PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR
IN SUPPLEMENTS PUBLISHED BY SONY.

SAFETY CHECK-OUT

After correcting the original service problem, perform the follow-
ing safety check before releasing the set to the customer:

Check the antenna terminals, metal trim, finetallized" knobs. screws,
and all other exposed metal parts for AC leakage. Check leakage as
described below.

LEAKAGE TEST

The AC leakage from any exposed metal part to earth ground and
from all exposed metal parts to any exposed metal part having a
return to chassis, must not exceed 0.5 mA (500 microampers).
Leakage current can be measured by any one of three methods.

1. A commercial leakage tester, such as the Simpson 229 or RCA
WT<540A. Follow the manufacturers instructions to use these
instruments.

2. A battery-operated AC milliammeter. The Data Precision 245
digital multimeter is suitable for this job.

3 Measuring the voltage drop across a resistor by means of aVOM
or battery-operated AC voltmeter. The limit indication is 0.75
V, so analog meters must have an accurate low-voltage scale.
The Simpson 250 and Sanwa SH-63Trd are examples of a pas-
sive VOM that is suitable. Nearly all battery operated digital
multimeters that have a 2V AC range are suitable. (See Fig. A)

Ta Exposed Meal
Pans on Set

AC

:> 1-5/0 / voltmeter
(0. 75V)

0. 15m:

'-' Earth Ground

Fig. A. Using an Ac voltmeter to check AC leakage.

ATTENTION AU COMPOSANT AYANT RAPPORT
A LA SECURITEII

LES composm'rs IDENTIFIés PAH UNE MAROUE A sun LES
DIAGRAMMES scHéMATioues er LA LISTE DES PIECES sour
CRITIQUES Poun LA SECURITE DE FONCTIONNEMENT. NE
REMPLACER ces COMPOSANTS ouE PAH DES PIECES SONY
DONT LES Numénos SONT DONNES DANS ce MANUEL ou
nANs LES SUPPLEMENTS PuaLiés PAR SONY.

_2_
