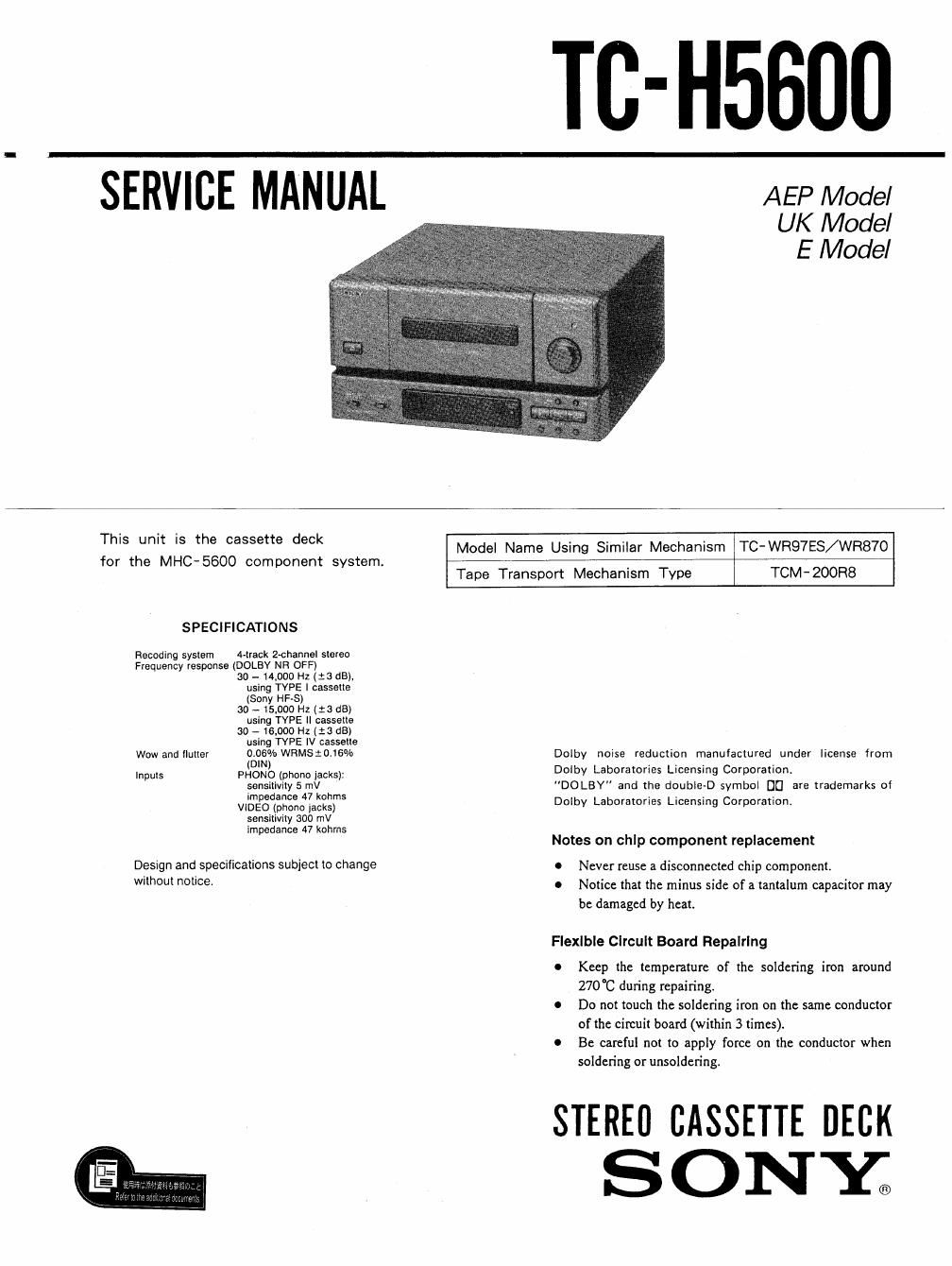

Page 1

TC-H5600

SERVICE MANUAL AEP Model

UK Model
E Model

Th's n" '5 the cassette de°k Model Name Using Similar Mechanism TC-WR97ES/WR87O
for the MHC-5600 component system.

Tape Transport Mechanism Type TCM-200R8

SPECIFICATIONS

Flecoding system 4-lrack 2-channel stereo
Frequency response (DOLBY NR OFF)
80 - 14,000 Hz (:3 dB),
using TYPE I cassette
(Sony HF-S)
30 -15.000 Hz(13 dB)
using TYPE ll cassetle
30 - 16,000 Hz (:3 (13)
using TYPE IV cassette
WOW and flutter 005% WRM310-15% Dolby noise reduction manufactured under license from

Inputs Pl-(EIIIIO (phono jacks): Dolby Laboratories Licensing Corporation,

sensitivitySmV "DOLBY" and the double-D symbol DE] are trademarks of

impedance 47 kohms . . . .
VIDEO (phono jacks) Dolby Laboratories Licensing Corporation.

sensitivity 300 mV
impedance 47 kohms
Notes on chip component replacement

Design and specifications subject to change 0 Never reuse a disconnected chip component.
without notice. 0 Notice that the minus side of a tantalum capacitor may
be damaged by heat.

Flexlble Clrcult Board Repairing

0 Keep the temperature of the soldering iron around
270°C during repairingr

0 Do not touch the soldering iron on the same conductor
of the circuit board (within 3 times)

0 Be careful not to apply force on the conductor when
soIdering or unsoldering.

STEREO sissrrrr DECK
SONY;

Page 2

TC - H5600

Section E Egg;
1_ GENERAL ........................................ 3
2_ DISASSEMBLY ..................................... 4
3. MECHANICAL ADJUSTMENTS --------------------- 7
4. ELECTRICAL ADJUSTMENTS ---------------------- 7
5. DIAGRAMS
5-1.1c Pin Description .......................... 10
5-2. Semiconductor Lead Layouts ~~~~~~~~~~~~~~~ 14
5-8. Circuit Boards Location ------------------- 14
5-4. Block Diagram .............................. 15
5-5. Printed Wiring Boards
_ Main Section _. ........................... 20
5-6. Schematic Diagram
_ Main Section _ ........................... 23
5-7. Schematic Diagram
_ Pin Jack Section _ ....................... 29
5-8. Printed Wiring Boards
_ Pin Jack Section _ ....................... 33
5-9. Printed Wiring Boards
-Panel Section _ ........................... 37
5-10. Schematic Diagram
_ Panel Section _ ........................... 39
6. EXPLODED VIEWS
6-1. Front Panel Section-1 ---------------------- 41
6-2. Mechanism section-1 - 42
6-3. Mechanism section-2 ----------------------- 43
7. ELECTRICAL PARTS LIST ----------------------- 44

TABLE OF CONTENTS

SAFETY-RELATED COMPONENT WARNING

COMPONENTS IDENTIFIED BY MARK A 0R DOTTED
LINE WITH MARK A ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL TO SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB-
LISHED BY SONY.

Cautlon when repalrlng

Normally the power of this set is supplied from the
TAHSSOO amplifier connected. When only this set is
repaired, connect the power of 18V AC as shown in

the figure below.

[PIN JACK BOARD] (conductor side)
