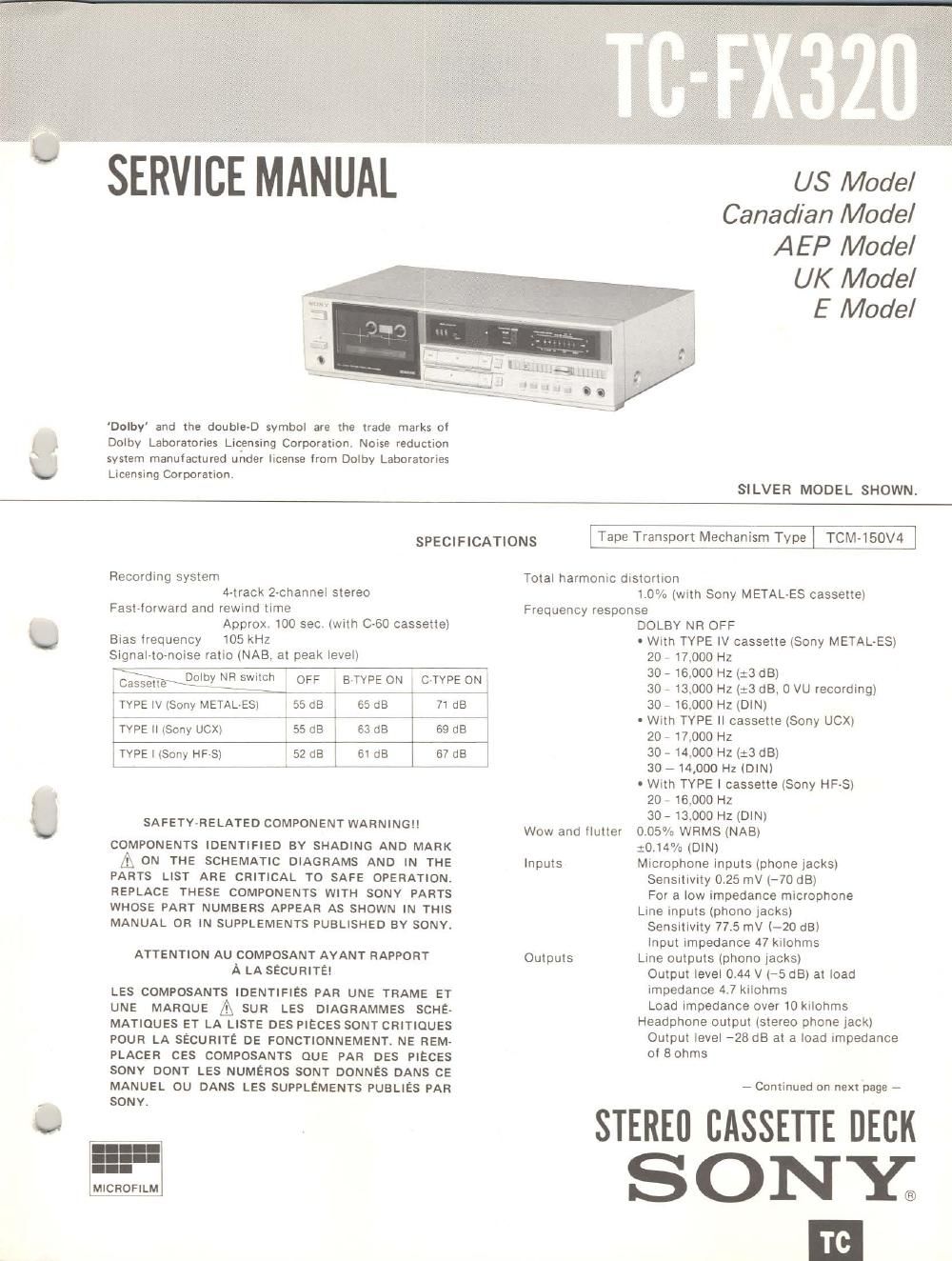

Sony tc fx 320 service manual

Page 2

Tl

TC-FX32O

General
Power requirements
AEF model: 220 V ac, 50/60 Hz
(240 V ac adjustable by authorized Sony
personnel)
UK model: 240 V ac, 50 Hz
(220 V ac adjustable by authorized Sony
personnel)
US, Canadian model: 120 V, 60 Hz
E model: 120, 220 or 240 V ac adjustable,

50/60 Hz
Power consumption
12 watts
Dimensions Approx. 430 x 105 x 245 mm (th/d)
(17 X 4/ x 9% inches)
including projecting parts and controls
Weight Approx. 3.6 kg (7 lbs 15 oz)

While the information given is correct at the time of printing,
small production changes in the course of our company's
policy of improvement through research and design might not
necessarily be indicated in the specifications We would ask
you to check with your appointed Sony dealer if clarification on
any point is required.

Note
This appliance conforms with EEC Directives 76/889 and 82/499
regarding interference suppression.

MODEL IDENTIFICATION
- Specification Labels -

SONYE

MODEL No. TC-FX320

US, Canadian Model:
AEP, G~AEP Model:
UK Model:

E Model:

AC 120V 60Hz 12W
AC 220V ~ 50/60Hz 12W
AC 240V ~ 50/60Hz 12W

AC 120, 220. 240V ~ SO/SOHZ 12W

SAFETY CHECK-OUT (US Model)

After correcting the original service problem,
perform the following safety check before releasing
the set to the customer:

Check the antenna terminals, metal trim, metallized
knobs, screws, and all other exposed metal parts for
AC leakage. Check leakage as described below.

LEAKAGE TEST

The AC leakage from any exposed metal part to
earth ground and from all exposed metal parts to any
exposed metal part having a return to Chassis, must
not exceed 0.5 mA (500 microampers).
current
methods,

Leakage
can be measured by any one of three

1. A commercial leakage tester. such as the
Simpson 229 or RCA WT-54OA. Follow the
manufacturers instructions to use these instru»
ments.

2. A battery-operated AC milliammEter. The Data
Precisron 245 digital multimeter is suitable for
this job.

3. Measuring the voltage drop across a resistor by
means of a VOM or battery»operated AC volt
meter. The limit" indication is 0.75V. so
analog meters must have an accurate
voltage scale. The Simpson 250 and Sanwa
SH-63Trd are examples of a passive VOM that
is suitable, Nearly all battery operated digital
multimeters that have 3 2V AC range are
suitable. (See Fig. A)

low-

Ta Exposed Metal
Falls on Set

Fl

L, j

'? Earth Ground

A C
/ Va Irmezer

0,15MF
(0.75 W

Fig, A. Using an AC voltmeter to check AC leakage.
