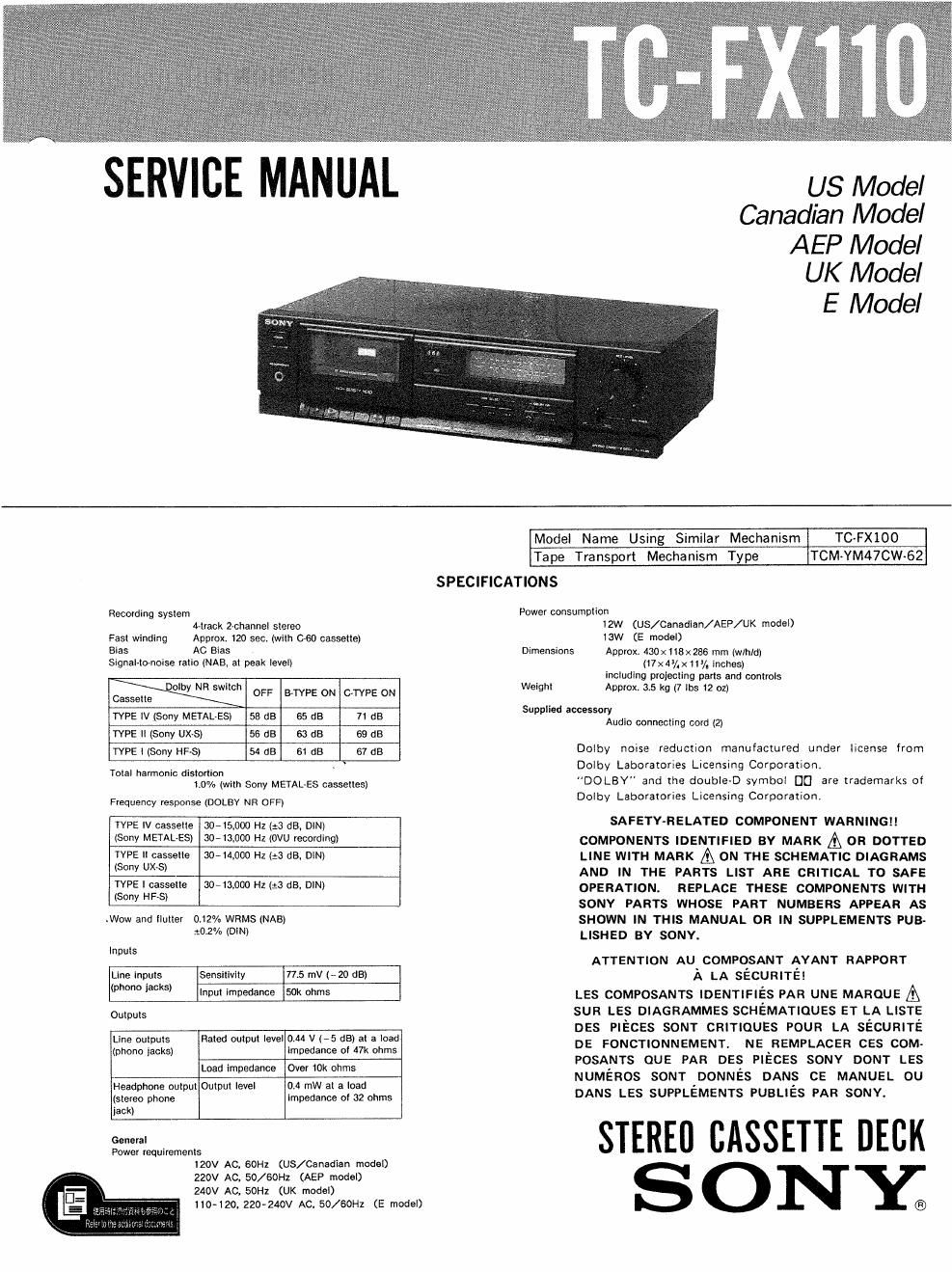

Page 1

SERVICE MANUAL

US Model
Canadian Model

AEP Model
UK Model

E Model

Recording system
rack 2-channel slereo
Fasl winding Approx, 120 sec. (wilh 060 casselle)
Bias AC Bias
Signal-lo-nolse ralio (NAB. al peak IeveI)

Cam °V N" m OFF MYPE ON OTYPE ON
TYPE lV (Sony METAL-ES) 53 as 65 dB 11 as
TYPE || (Sony 0x5) 55 as 53 dB 69 dB
TYPE I (Sony HF-S) 54 dB er dB 67 dB

Tolal harmonic dislorlion
1.0% (with Sony METAL-E5 cassettes)

Frequency response (DOLBY NR OFF)

TYPE IV casselte
(Sony METAL-ES)

TYPE II casselle

3045.000 Hz (:3 dB, DIN)
30- 13.000 Hz (OVU recording}

30- 14.000 Hz (:3 dB, DIN)

(Sony UXS)
TYPE I casselle 30- .000 Hz (:3 dB, DIN)
(Sony HRS)
.Wow and fluller 0.12% WRMS (NAB)
3.02% (DIN)
lnpuls
Line Inpuls Sensuivily 775 mV (-20 dB)

(phono lacks)

Input impedance 50k ohms

Outputs
Line OUIDUIS Raled output level 0.44 V 175 dB) at a load
(phone jacks) Impedance of 47k ohms

Over 10k ohms

0.4 mW ai a load
Impedance 0! 32 ohms

Load impedance

Headphone outpul Oulpul level
(stereo phone
iack)

General

Power requiremenls

IZOV AC. 60H2 (US/Canadian model)

220V AC. 50/60Hz (AEP model)

240V AC, 50Hz (UK model)

110-120. 220'240V AC. 50/60H1 (E model)

Model Name Using Similar Mechanism
Tape Transport Mechanism Type

SPECIFICATIONS

TC-FXlOO
TCMvYM47CW~62

Power oonsumplion
12W (US/Canadian/AEP/UK model)
13W (E model)

Dimensions Approx. 430x1l8 x 286 mm (wlhld)
(I7x4/.x 111/. inches)
includlng projecling vans and controls
Weight Approx, 3.5 kg (7 lbs 12 oz)

Supplled accessory
Audio connecling cord (2)

Dolby noise reductIon manufactured under license from
Dolby Laboratories Licensing Corporation.
"DOLBY" and (he double-D symbol [)0 are trademarks of
Dolby Laborarones Licensing Corporation.

SAFETY-RELATED COMPONENT WARNING
COMPONENTS IDENTIFIED BY MARK A OR DOTTED
LINE WITH MARK A ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL T0 SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB-
LISHED BY SONY.

ATTENTION AU COMPOSANT AYANT RAPPORT
A LA sécuRITéI

LES COMPOSANTS IDENTIFIES PAR UNE MAROUE A
sun LES DIAGRAMMES SCHEMATIOUES ET LA LISTE
DES PIECES SONT CRITIQUES POUR LA sécunrré
DE FONCTIONNEMENT. NE REMPLACER ces com.
POSANTS oue PAR DES PIECES sonv DONT LES
NUMEROS SONT DoNNIzs DANS cs MANUEL ou
DANS LES SUPPLEMENTS PuaLrés PAR SONY.

STEREO CASSETTE DECK
SONY;

Page 2

TC-FX110

MODEL IDENTIFICATION
-Specification Label Printed on Back Panel --
SONYO MODELNO.TC-FX110
STEREO CASSETTE DECK
k\\\\\\\\\\\\\\\\\\\\\\\\\\\\V
m\\\\\ \\\\\\\\\W

US/Canadian model: AC 120V 60Hz 12W

AEP model: AC 220V~50/60Hz
UK model: AC 24OV~50/60Hz
E model: AC 110-120V, 220-240V~50

/60Hz 13W

©®®©®z AE2 only

SAFETY CHECK-OUT

After correcting the original service problem,
perform the following safety check before releasing
the set to the customer:

Check the antenna terminals, metal trim, metallized
knobs, screws, and all other exposed metal parts for
AC leakage. Check leakage as described below.

LEAKAGE TEST

The AC leakage from any exposed metal part to
earth ground and from all exposed metal parts to any
exposed metal part having a return to chassis, must
not exceed 0.5 mA (500 microampers). Leakage
current can be measured by any one of three
methods.

I. A commercial leakage tester, such as the
Simpson 229 or RCA WT-540A. Follow the
manufacturers instructions to use these instru-
ments.

2. A battery-operated AC milliammeter. The Data
Precision 245 digital multimeter is suitable for
this job

1-1.

SECTION 1
GENERAL

LOCATION AND FUNCTION OF CONTROLS

TAPE COUNTER and RESET bulton

POWER swllch

Cassette holder

(PEAK LEVEL METERS

REC LEVEL (recording level)
control

HEADPHONES lack
(stereo phone Jack)

POWER and REC (record) -/
lndlcalors

BALANCE control
Adjusts the recording
balance of

both channels

Tape operatlon bullons
0 (record) button

b (play) button

« (rewind) button

» (Iasuorwaro; button
I: (stop/elect) button
II (pause) button

DOLBY NR (nolse reducllun)
swltches

TAPE SELECT switches

3. Measuring the voltage drop across a resistor by

means of a VOM or battery-operated AC volt-
meter. The limit indication is 0.75V, so
analog meters must have an accurate low-
voltage scale. The Simpson 250 and Sanwa
SH-63Trd are examples of a passive VOM that
is suitable. Nearly all battery operated digital
multimeters that have a 2V AC range are
suitable. (See Fig, A)

Fig. A.

To Exposed Metal
Parts on Set

r
gum /
L.

7 Earth Ground

A C
voltmeter
(0. 75 VI

0.15MF

Using an AC voltmeter to check AC leakage.
