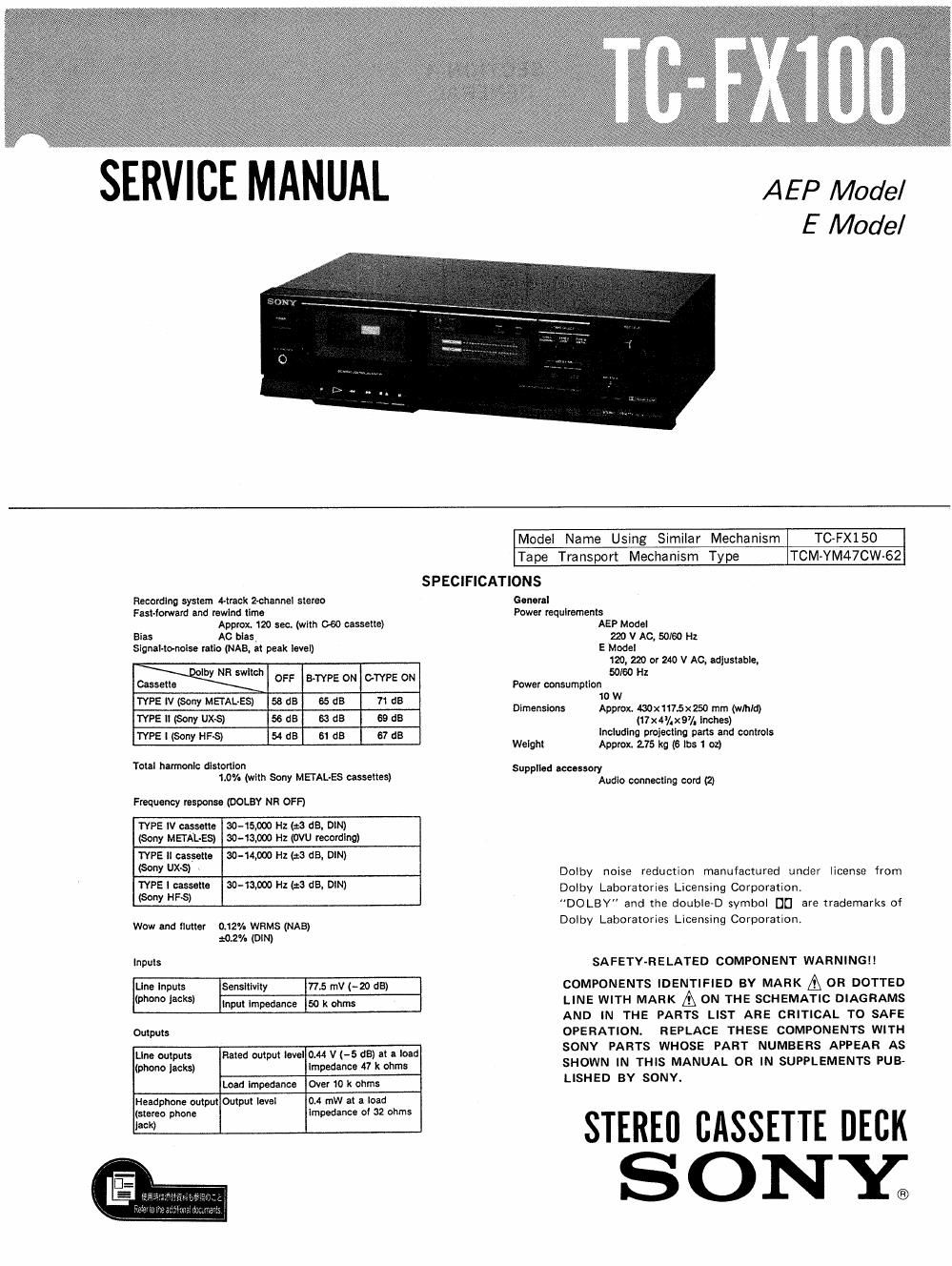

Page 1
SERVICE MANUAL
AE P Model
E Model
Recording system rack zohannel stereo
Fest-Iowan! and rewind time
Approx. 120 see. (with 060 cassette)
as Ac bias,
Signallo-nolse ratio (NAB, at peak level)
W OFF amps 0N ones on
TYPE IV (Sony METAL-E3) 58 dB 35 (15 71 dB
TYPE n (Sorry uxs; 56 as as do so as
TYPE I (Sony use) 54 dB 61 dB 87 dB
Total harmonic distortion
1.0% (wlth Sony MElAL-Es cassettes)
Frequency response (DOLBY NR OFF)
TYPE IV cassette (SO-15,000 Hz (:3 dB, DIN)
(Sony METALES) {IO-13,000 Hz (WU recording)
TYPE ll caeselte 30-14300 HZ (:3 dB, DIN)
(Sony 03)
TYPE I cassette (IO-13,000 H1 (:3 dB, DIN)
(Sony HFS)
Wow and flutter 0.12% WRMS (NAB)
20.2% (DIN)
Inputs
Line Inputs Sensltivity 775 mV (-20 :59)
(9mm Jacks) Input Impedance 50 k ohms
Outputs
Line outputs Rated output level 0.44 V (-5 d8) at a load
(phono Jacks) Impedance 47 k ohms
Load Impedance Over 10 k ohms
Headphone output Output level
(stereo phone
lack)
0A mW at a load
Impedance of 32 ohms
Model Name Using Similar Mechanism
TC-FX150
Tape Transport Mechanism Type
TCM-YM47CW-62
SPECIFICATIONS
General
Power requirements
AEP Model
220 V AC. 50/60 Hz
E Model
120, 220 or 240 V AC, adjustable,
50/60 Hz
Power consumption
10 W
Dimensions Approx 4.30xm.5xm mm (wmld)
(17x4/.x9/. Inches)
Including projecting pans and controls
Weight Approx. 2.75 kg (6 lbs 1 oz)
supplied ucoonory
Audio connecting cord (2)
Dolby noise reduction manufactured under license from
Dolby Laboratories Licensing Corporation
DOLBY and the double-D symbol [m are trademarks of
Dolby Laboratories Licensing Corporation.
SA FETY-FI E LATED COMPONENT WAR N INGI I
COMPONENTS IDENTIFIED BY MARK & OR DOTTED
LINE WITH MARK A ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL T0 SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB-
LISHED BY SONY.
STEREO CASSETTE DECK
ONY®
Page 2
TC-FX 1 00
1-1.
SECTION 1
GENERAL
LOCATION AND FUNCTION OF CONTROLS
TAPE COUNTER and RESET button-fl
Cassette holder -\
r------POWER and REC (record)
Indicators
r--TAPE SELECT switches
REC LEVEL (recording level)
POWER switch control
[:1 ° ° 3' I l 1]
|
@ m© gnaw:
o o 0 E5]
| GD
;:;;mu
HEADPHONES jack
(stereo phone jack)
Tape operation buttons
0 (record) button
b (play) button
« (rewind) button
» (fast-forward) button
I: (stop/eject) button
II (pause) button
BALANCE control
Adjusts the recording balance of
both channels.
¥-DOLBY NR (noise reduction)
switches
