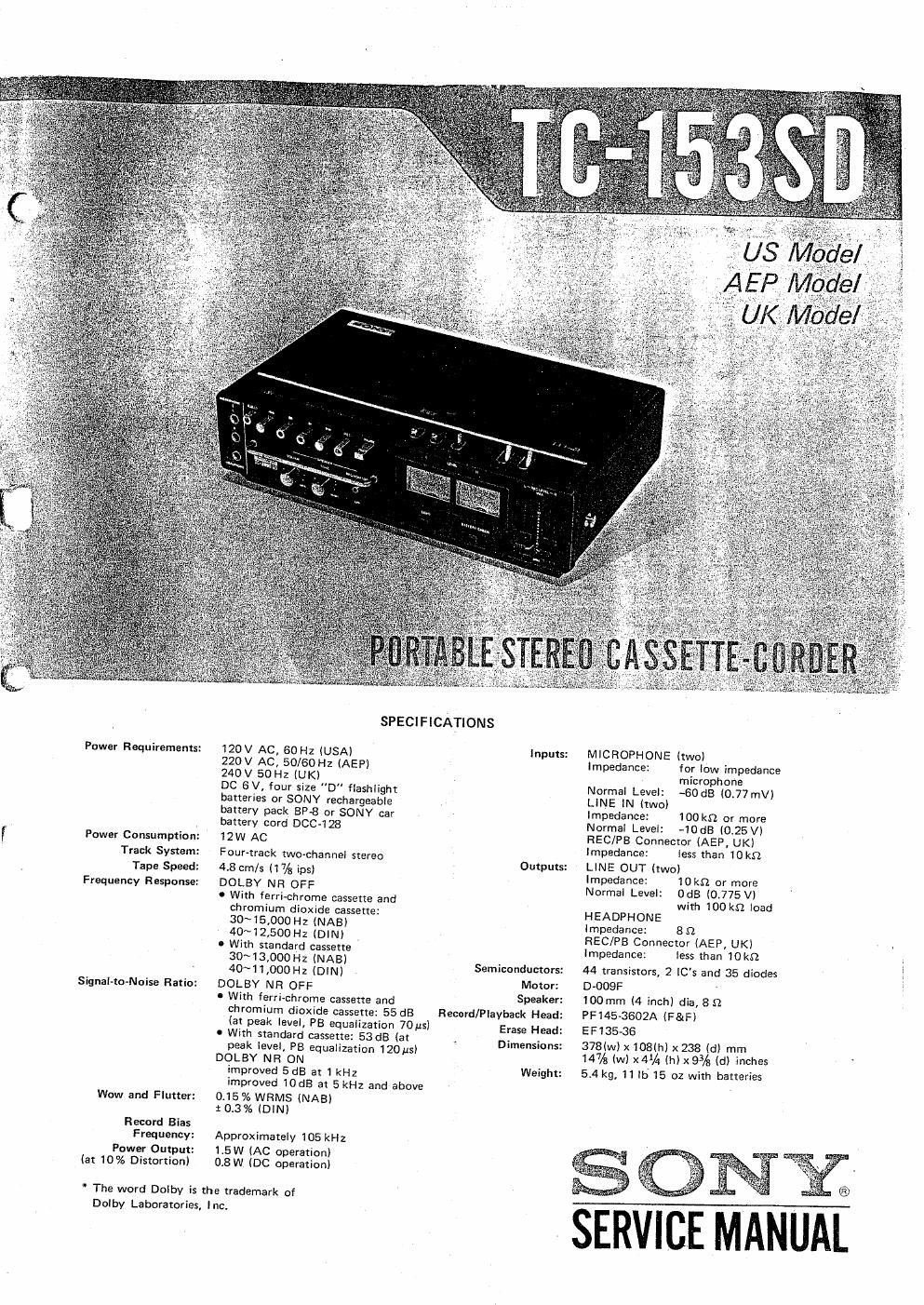

Page 1

Power Requirements:

Power Consumption:
Track System:

Tape Speed;
Frequency Reiponse:

Signal-to-Noise Ratio:

Wow and Flutter:

Record Bias
Frequency:

Pawer Output:

(at 10% Distortion)

SPECIFICATIONS

120V AC, 60 Hz (USA)

220V AC, 50/60 Hz (AEP)

240V 50 Hz (UK)

DC 6V, four size "D" flashlight

batteries or SONY rechargeable

battery pack BP-8 or SONY car

battery curd DOC-128

12W AC

Four-track two-channel stereo

4.8 crn/s (1% ips)

DOLBY NR OFF

0 With ferri~chrome cassette and
chromium dioxide cassette:
30~15,000 Hz (NAB)
40N12,500HZ (DIN) .

I With standard cassette
30~13,000Hz (NAB)
40~11,000Hz (DIN)

Inputs:

Outputs:

Sem icondu ctors:

DOLBY NR OFF M°°_
a With ferri-chrome cassette and Speaker.
chromium dioxide cassette: 55 dB Record/Playback Head:
(I? [Sank level, PB equaliazation(701.ls) Erase Head:
0 it standard cassette: 3dB at a < - .
peak level. PB equalization 1201.15) Dimensions.
DOLBY NR ON _
improved 5dB at 1 kHz Weight.

improved 10dB at 5 kHz and above
0.15% WRMS (NAB)
x (13% (DIN)

Approximately 105 kHz

1.5W (AC operation)
0.8 W. (DC aperaticn)

* The word Dolby is the trademark of
Dolby Laboratories, Inc.

MICROPHONE (two)

Impedance: for low impedance
microphone
Normal Level: -60dB (0,77mV)
LINE lN (two)
Impedance: 100 km or more
Normal Level: -10dB (025V)
REC/PB Cannector (AEP, UK)

Impedance: less than 10km
LINE OUT (two)
Impedance: IOKQ or more

Normal Level: (MB (0775 V)

with 100 kn load
HEADPHONE
Impedance: 89
REC/PB Connector (AEP UK) ' -
Impedance: less than lokfl
44 transistors, 2 ICs and 35 diodes
D-009F '
100 mm (4 inch) dia, 89
PF145~3602A (F&F)
EF135-36
378M) x108lh)x238 (d) mm
147/8 (w) x4% lhl X93); (d) inches
5.4 kg, 11 lb 15 02 with batteries
