Sony TAE 5450 Owners Manual

Page 1

SONY®

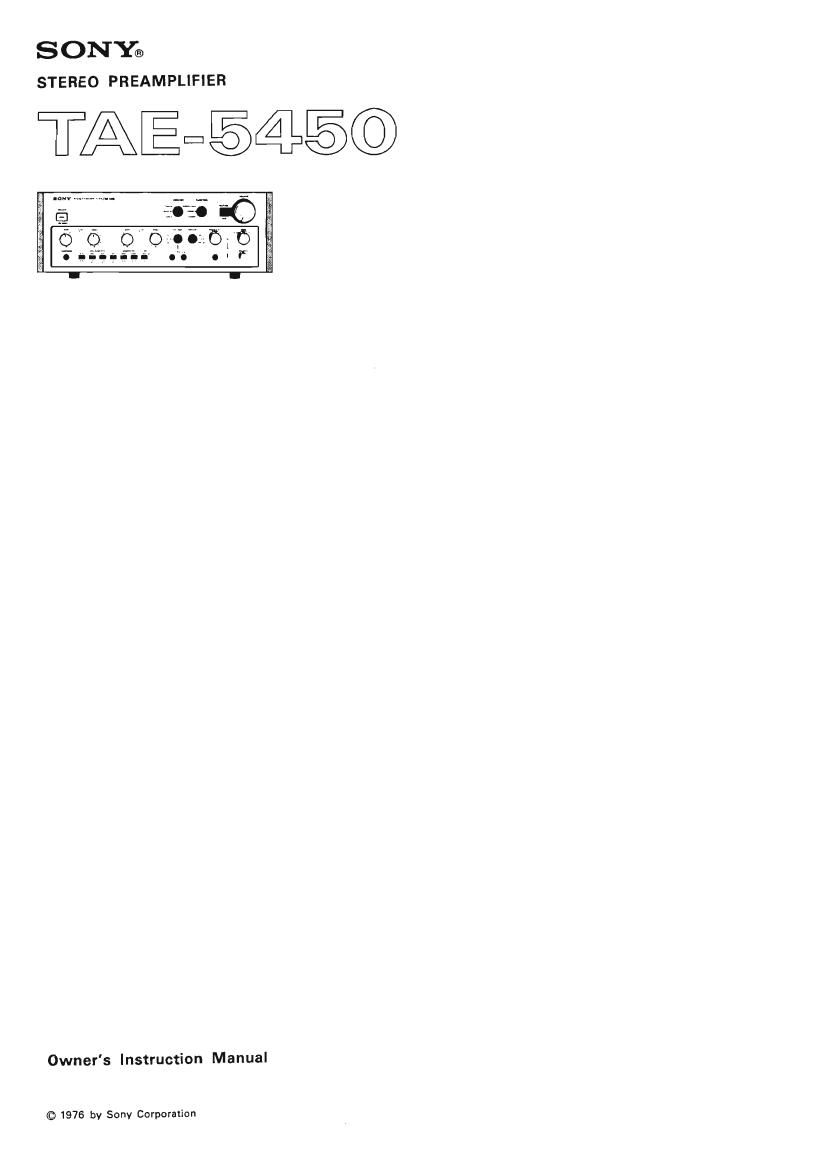

STEREO PREAMPLIFIER

Owner's Instruction Manual

© 1976 by Sony Corparaxion

Page 2

To derive the utmost in pleasure and utility from your Sony
TAE-5450r please read this manual completely to become familiar
with all its features and capabilities. Keep this manual handy
for future reference.

TABLE OF CONTENTS

Warning ..................... , t . . . 2
Unpacking ......................... 2
Precautions ......................... 3
System Connections .................... 3

Connection notes
Power connection
Power amplifier connection
Connection diagram
Program source connections
Ground connection
Operating Instructions ................... 6
Initial operation
Sound adjustments
Tape recording
Front Panel Facilities .................... 7
General control section
Tone control section
Input selection section
Add-on accessory section

External Adaptor Connectors ............... 10
Care of Your Equipment .................. 10
Trouble checks
Cleaning
Specifications ....................... I 1
Block Diagram ................... back cover
WARNING

«To avoid electrical shock, do not open the
cabinet.
Refer servicing to qualified personnel only.

oTo prevent fire or shock hazard, do not ex-
pose the set to rain or moisture.

UNPACKING

Do not throw away the TAE-5450 carton and the associated
material; they will come in handy if you ever have to transport
or ship your set Inspect your TAE»545O immediately after
unpacking.

If any sign of damage is found, consult your local Sony dealer.
When shipping the set for repair work or to another location,
the set should be repacked in the original carton and packing
material just as before.
