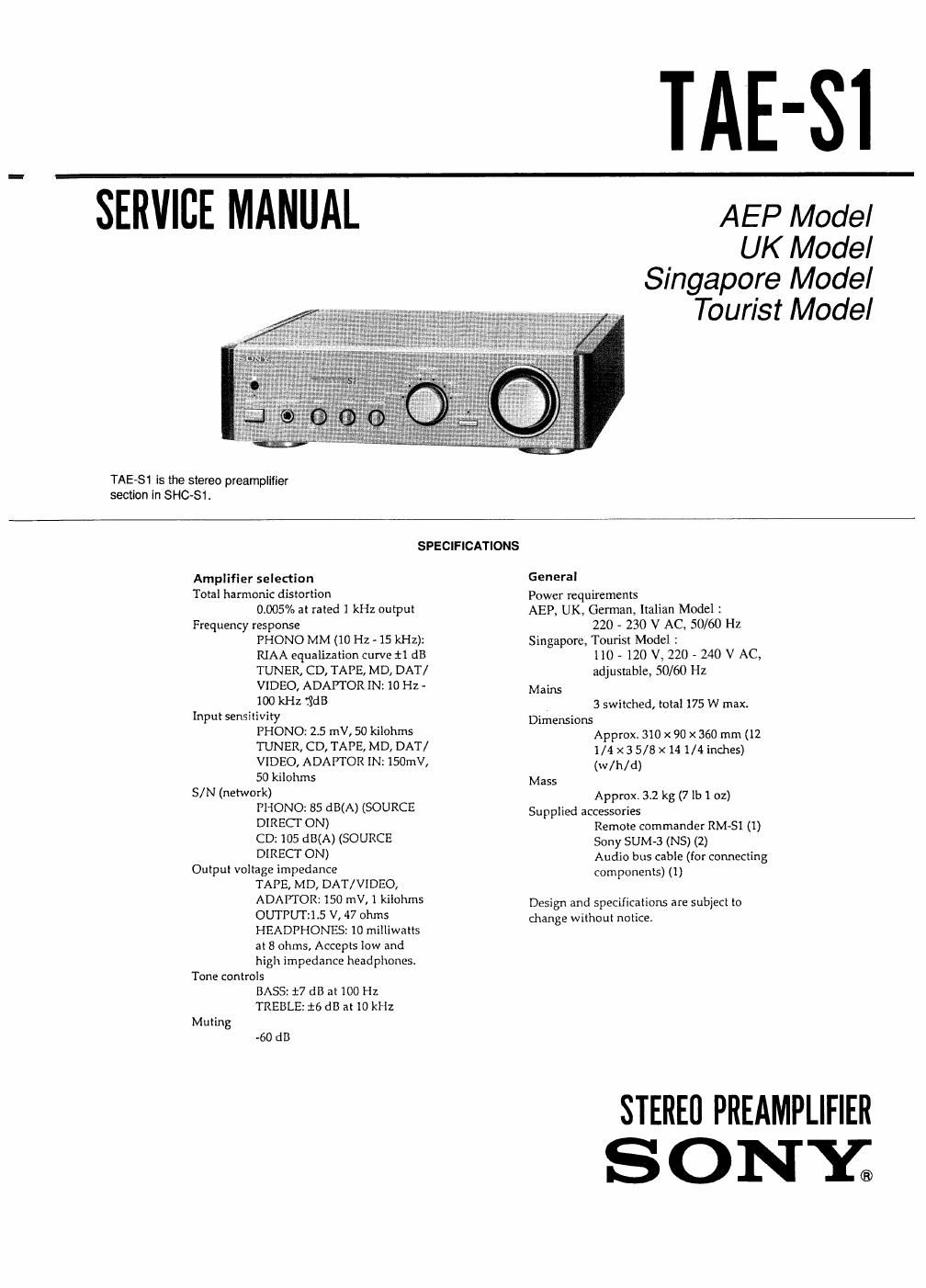

Page 1

TAE-SI

SERVICE MANUAL

TAE»Si is the stereo preamplifier
section in SHC-SL

AEP Model

UK Model
Singapore Model
Tourist Model

SPECIFICATIONS

Amplifier selection
Total harmonic distortion
DIODS% at rated 1 kHz output
Frequency response
PHONO MM (10 Hz - 15 kHz):
RIAA equalization curvetl dB
TUNER, CD, TAPE, MD, DAT/
VIDEO, ADAPTOR IN: 10 Hz ~
100 kHz XdB
Input sensitivity
PHONO: 25 mV, 50 kilohms
TUNER, CD, TAPE, MD, DAT/
VIDEO, ADAPTOR IN: lSOmV,
50 kilohms
S/ N (network)
PHONO; 85 dB(A) (SOURCE
DIRECI' ON)
CD: 105 dB(A) (SOURCE
DIRECT ON)
Output voltage impedance
TAPE, MD, DAT/VIDEO,
ADAPTOR: 150 mV, 1 kilohms
OUTPUT:] .5 V, 47 ohms
HEADPHONES: 10 milliwatts
at 8 ohms, Accepts low and
high impedance headphones
Tone controls
BASS: :7 dB at 100 Hz
TREBLE:16 dB at 10 kHz
Muting
-60 all]

General
Power requirements
AEP, UK, German, Italian Model :
220 - 230 V AC, 50/60 Hz
Singapore, Tourist Model :
110 - 120 V, 220 - 240 V AC,
adjustable, 50/60 Hz

Mains
3 switched, total 175 W max.
Dimensions
Approx. 310 x 90 x 360 mm (12
1/4 X35/8 X 14 1/4 inches)
(W/h/d)
Mass

Approx 3.2 kg (7 lb 1 oz)
Supplied accessories

Remote commander RM-Sl (1)

Sony SUM-3 (NS) (2)

Audio bus cable (for connecting

components) (1)

Design and specifications are subject to
change without notice

STEREO PREAMPLIFIER
S 0 NY;

Page 2

TABLE OF CONTENTS

Section Tit e Bags
1. GENERAL .............................................................. 2
2. DIAGRAMS

2-1. Block Diagram ..... a
2-2. Schematic Diagram 6
2.3_ Printed Wiring Boards 9
2-4. Semiconductor Lead Layouts I 12
2-5. IC Pin Function

- ICSO1 Main Controller (TMP87CS46N-4109) ............... 13

3. EXPLODED VIEWS

3-1. Case and Front Panel Section 14
3-2. Chassis Section ................... 15
4. ELECTRICAL PARTS LIST .................................... 16
MODEL IDENTIFICATION

-- BACK PANEL-

AEP/German/ltallan model : 4-967-151-1EI
UK model : 4-967-151-3i]
Singapore/Tourist model : 4-967-151-2El

SAFETY-RELATED COMPONENT WARNING I!

COMPONENTS IDENTIFIED BY MARK A OR DOTTED

LINE WITH MARK A ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL TO SAFE

OPERATION. REPLACE THESE COMPONENTS WITH
SONV PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS
PUBLISHED BY SONY.

SECTION 1
GENERAL

Index to Parts and
Controls

Front Panel

This section ls extracted from
instruction manual.

lit ttt©+©

gunshot to .

Remote sensor

\Zl ON/STANDBY indicator (7)
POWER switch (7)

E} HEADPHONES iack (7)

E BASS control (7)

(El TREBLE control (7)
BALANCE control (7)
FUNCTION control (7)

IE) SOURCE DlREcr control (7)
@ ATI'ENUATOR control (7)

Remote Commander

[i] MUTING button (7)
El SOURCE DIRECI button
at FUNCTION butlon
Ech time you press FUNCTION, the
function changes as follows:
DAT/VIDEO --> MD -» TAPE -t CD -t
TUNER -> PHONO a...
Cassette deck operating buttons
< (reverse side play)
> (upper side play)
I (stop)
44/» fast leftward / rightward)
(AMS')
Tuner operating buttons
SHIFT: Each time you press SHIFI', the
letter (A - C) changes as follows:
A --) B -> C -).r.
PRESET -/+: Press - or + to select the
number (0 - 9).
(3] CD operating buttons
> (play)
It (pause)
I (stop)
«4 />>l (AMS)
Tuner/CD numeric buttons
ape control buttons
0 REC (recording)
0 REC MUTE (recording mute)
II (pause)

El CD control buttons
CHECK: Press the button to check
the programme.
CLEAR: Press the button to erase a
specific track
CONTINUE: Press the button to play
tracks continuouslyr
SHUFFLE: Press the button to play
tracks in random orderr
PROGRAM: Press the button to play
tracks In the desired order.
REPEAT: Press the button to play
tracks repeatedly.
TIME: Press the button to change the
time to be displayed
[E MD control buttons
I> (Play)
II (pause)
I (stop)
K1 / m (AMS')
IE SYSTEM POWER switch (8)
@ TUNER/CD switch
[EATrENUATOR +/- buttons

'AMS: Automatic Music Sensor
