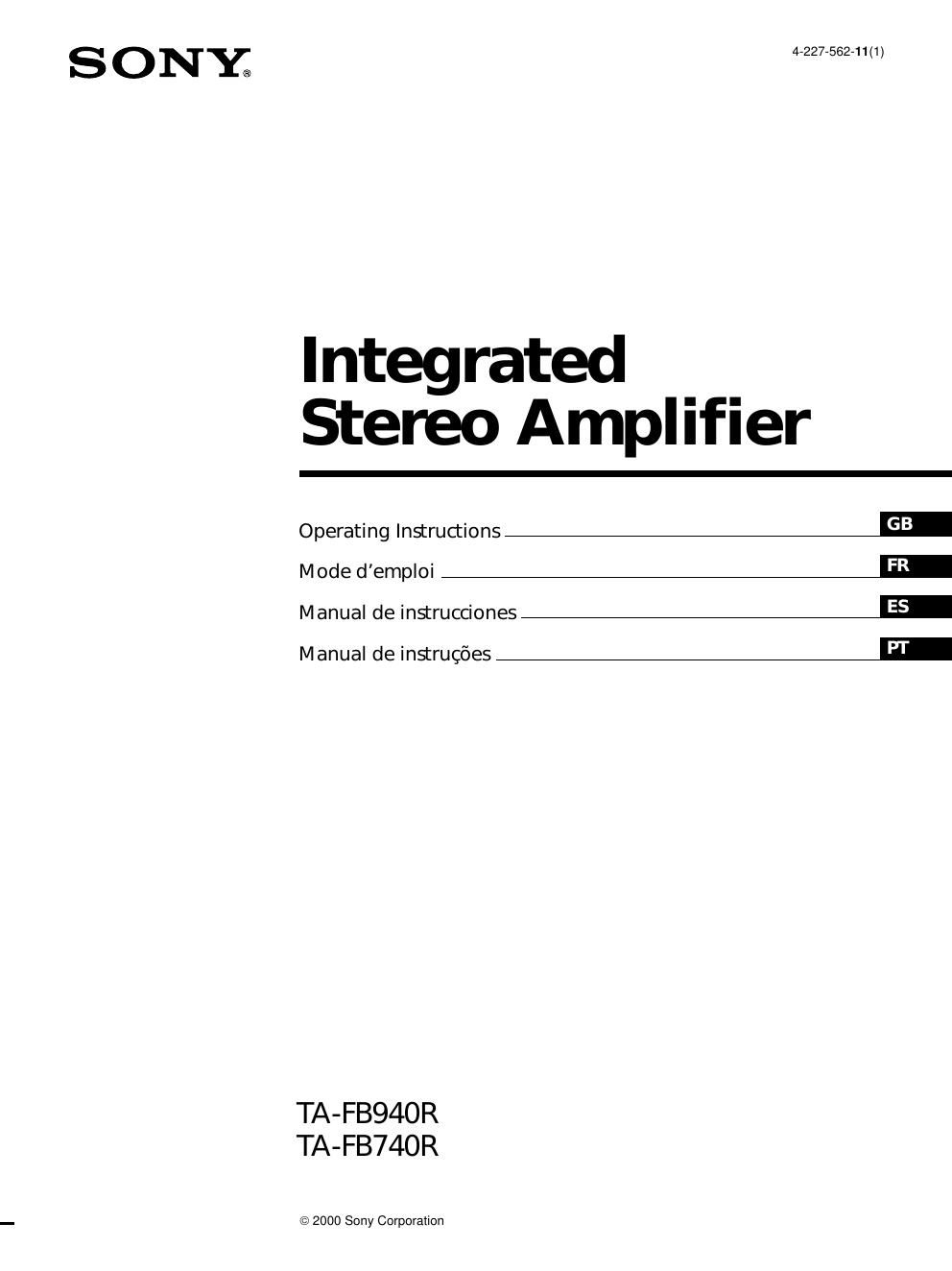

Page 1
2GB
WARNING
To prevent fire or shock
hazard, do not expose the unit
to rain or moisture.
To avoid electrical shock, do
not open the cabinet. Refer
servicing to qualified
personnel only.
Do not install the appliance in
a confined space, such as a
bookcase or built-in cabinet.
Precautions
On safety
¥ Do not disassemble the cabinet as this
may result in an electrical shock.
Refer servicing to qualified personnel
only.
¥ Should any solid object or liquid fall
into the cabinet, unplug the amplifier
and have it checked by qualified
personnel before operating it any
further.
On power sources
¥ Before operating the amplifier, check
that the operating voltage of the
amplifier is identical with your local
power supply. The operating voltage
is indicated on the nameplate at the
rear of the amplifier.
¥ If you are not going to use the
amplifier for a long time, be sure to
disconnect the amplifier from the wall
outlet. To disconnect the AC power
cord (mains lead), grasp the plug
itself; never pull the cord.
¥ AC power cord must be changed only
at the qualified service shop.
On placement
¥ Place the amplifier in a location with
adequate ventilation to prevent heat
built-up and prolong the life of the
amplifier.
¥ Do not place the amplifier near heat
sources, or in a place subject to direct
sunlight, excessive dust or mechanical
shock.
¥ Do not place anything on top of the
cabinet that might block the
ventilation holes and cause
malfunctions.
On operation
Before connecting other components, be
sure to turn off and unplug the
amplifier.
On cleaning the amplifier
Clean the cabinet, panel and controls
with a soft cloth slightly moistened with
a mild detergent solution. Do not use
any type of abrasive pad, scouring
powder or solvent such as alcohol or
benzine.
On the prevention of howling
Do the following:
Ñlower the volume.
Ñkeep the turntable as far from the
speakers as possible.
Ñuse commercially available audio
insulators on the bottom of the
turntable.
Ñkeep the microphone away from the
speakers during use.
For further protection against howling,
set the speakers or turntable on top of a
heavy wooden board or concrete slab.
If you have any questions or problems
concerning your amplifier, please
consult your nearest Sony dealer.
Page 2
GB
3GB
Unpacking
Check that you have received the following supplied items:
¥ Remote commander (remote) (1) RM-S336
¥ Sony batteries R6 (size-AA) (2)
Inserting batteries into the remote
Insert two R6 (size-AA) batteries, matching the + and Ð on the batteries with
the markings inside the battery compartment. When using the remote, point
it at the remote control sensor g on the amplifier.
z When to replace batteries
With normal use, the batteries should last for about 6 months. When the remote
no longer operates the amplifier, replace all the batteries.
Notes
¥ Do not leave the remote near an extremely hot or humid place.
¥ Do not drop any foreign object into the remote casing, particularly when replacing
the batteries.
¥ Do not expose the remote sensor to direct sunlight or lighting equipment. Doing
so may cause a malfunction.
¥ If you donÕt use the remote for an extended period of time, remove the batteries to
avoid possible damage from battery leakage and corrosion.
T ABLE OF CONTENTS
Getting Started
Hookup Overview 4
Audio Component Hookups 4
Speaker System Hookups 5
Mains Lead Hookups 6
Listening to the Music 7
Recording 9
Additional Information
Troubleshooting 10
Specifications 10
Rear Panel Descriptions 11
Remote Button Descriptions 11
Welcome!
Thank you for purchasing the Sony
Integrated Stereo Amplifier. Before
operating the amplifier, please read this
manual thoroughly and retain it for
future reference.
About This Manual
The instructions in this manual are for
models TA-FB940R and TA-FB740R.
Check your model number by looking at
the rear panel of your amplifier. The
TA-FB940R is the model used for
illustration purposes unless stated
otherwise.
Any difference in operation is clearly
indicated in the text, for example,
ÒTA-FB940R only.Ó
Conventions
¥ Instructions in this manual describe
the controls on the amplifier.
For details on the remote buttons
control, see ÒRemote Button
DescriptionsÓ on page 11.
¥ The following icon is used in this
manual:
z Indicates hints and tips for making
the task easier.
