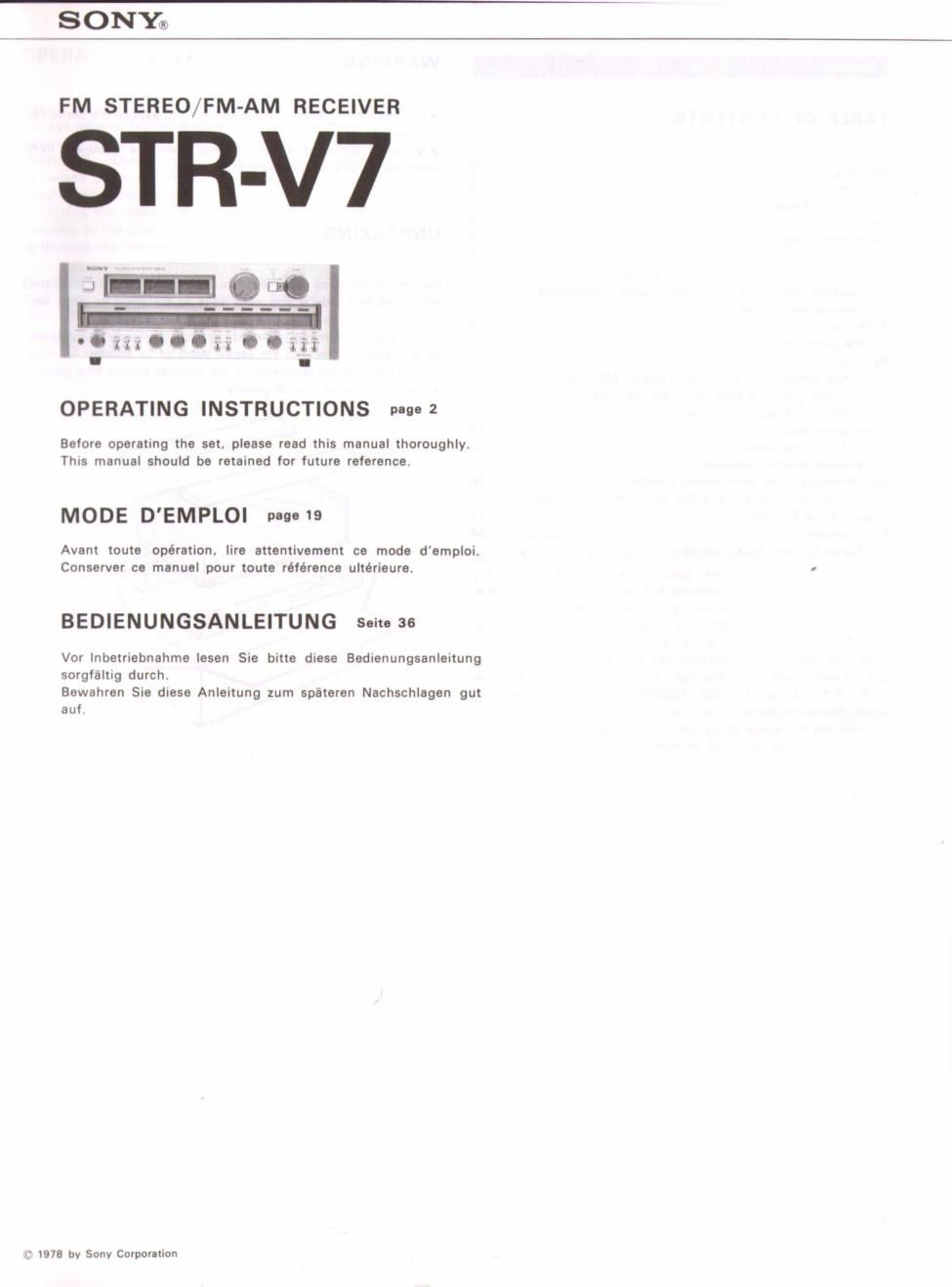

SONY?)

FM STEREO/FM-AM RECEIVER

STR-V7

I3"!!- Ono

213.....i i

i
I

OPERATING INSTRUCTIONS paaez

Belore operating the set, please read this manual thoroughly.
This manual should be retained for future reference,

MODE D'EMPLOI vane 19

Avant toute opération, lire attentivemen! so made demploi.
Conserver ca manual pour touts référence ultérieure

BEDIENUNGSANLEITUNG sum as

Vor Inbetriebnahme lesen Sie bltte diese Bedlenungsanleitung
sorgfaltlg durch.

Bewahren Sie diese Anleitung zum spiteren Nachschlagan gut
aul.

v 973 by Sony Corporation

Page 2

Engllsh

TABLE OF CONTENTS

Warning . . . ...................... 2
Unpacking ......................... 2
Operating voltage. .................... 3
Precautions. ....................... 3
Connection diagram .................... 4
System connections .................... 5
Connection notes. Power connection.
Speaker connection. Program source connections.
Ground connection
Antennas. ...................... 8
FM antenna, AM antenna
Operating instructions ................... 10
Initial operation, Sound adjustment, FM and a-rn
reception, Record Playing, Tape playback.
Tape recording, Tape copy
Front panel facilities . . . ................. 12
Care of your receiver .................... 15
Trouble checks, Cleaning
Specifications I (for continental Europe) .......... 16
Specifieations II (for FX and the countries other than
continental Europe) .................... 17
Block diagram ....................... 54

Tuner section, Audio section

WARNING

oTo prevent fire or shock hazard, do not expose the set to rain
or moisture.

0T0 avoid electrical shock, do not open the cabinet. Refer
servicing to qualified personnel only.

UNPACKING

Do not throw away the carton and the associated material; they
will come in handy if you ever have to transport or ship your
unit. Inspect your unit immediately after unpacking.

if any sign of damage is found, consult your local Sony dealer.
When shipping the unit for repair work or to another location.
the unit should be rapacked in the original carton and packing
material just as it was originally.

OPERATING VOLTAGE

Before connecting the unit to the power source. check that the
voltage selector setting is correct for your power supply. If the
selector must be reset, change the setting as follows.
WARNING: Check that the ac power cord is disconnected.

. Loosen the arrow-marked screw on the selector cover, and
remove the other screw.

. Unplug the selector and reinsert it firmly with the arrow mark
painting to the proper voltage figure.

0 Replace the selector cover.

For non~european PX model. the operating voltage is fixed to
120V ac. lf resetting is necessary. consult your nearest your
Sony service facility,

PRECAUTIONS

0n safety

.Check that the operating voltage of your unit is identical with
the voltage of your local power supply.

eShould any liquid or solid object fall into the cabinet, unplug
the unit and have it checked by qualified personnel before oper-
ating it any further.

eUnplug the unit from the wall outlet if it is not to be used for
an extended period of time. To disconnect the cord, pull it out
by grasping the plug. Never pull the cord itself.

On lnatallation

.Do not install the unit in a location near heat sources such
as radiators or air ducts, or in a place subject to direct sunlight.
excessive dust, mechanical vibration or shock.

IGood air circulation is essential to prevent internal heat build-
up in the unit. Place the unit in the location with adequate air
circulation. Do not place the unit on soft surfaces such as a
rug that would block the ventilation holes on the bottom.
.00 not place anything on top of the cabinet. The top ven-
tilation holes must be unobstructed for the proper operation of
the unit and to prolong the life of its components.

eDo allow more than 15 cm (6 inches) of space behind the unit
so that the position of the built-in ferrite-bar antenna can be
adjusted.

On operation

oBefora making program source connections, be sure to turn
the power switch off and unplug the unit. '

000 not attempt to test the protection circuits by blocking the
ventilation holes or connecting improper loads.

OWhen the unit is not used, turn the power off, to conserve
energy and to extend the useful life of your unit.

elf any problem arises in the operation of this unit, such as no
sound from the one or both channels, etc, first follow the pro-
cedures suggested in "TROUBLE CHECKS" on page 15. Most
problems that arise are the result of a simple misconnection or
incorrect operation and can be cleared up easily. If the difficulty
still persists, contact your nearest Sony dealer.

"0.

The side board is provided to the models other than the con-
tinental Europe.
