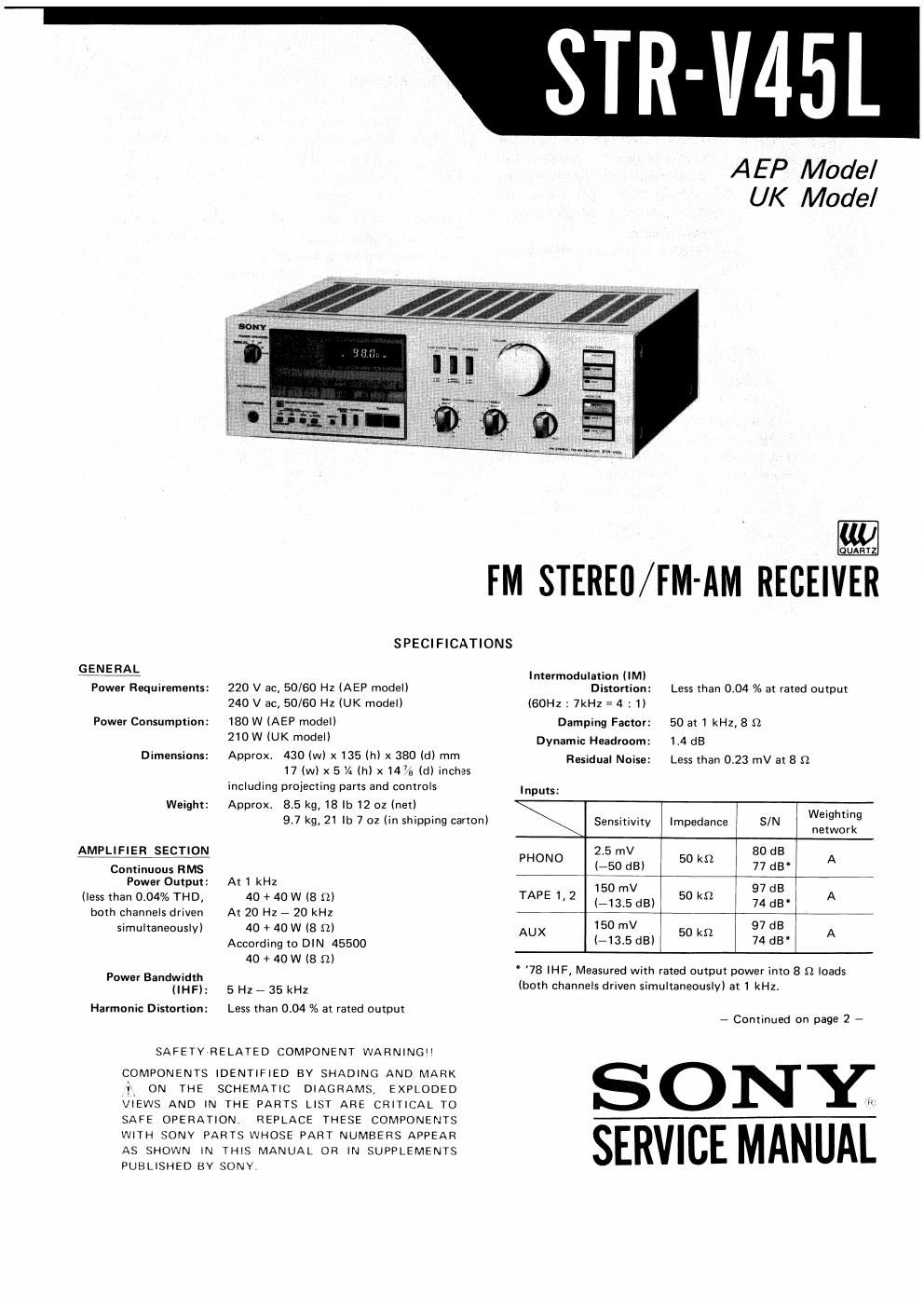

Page 1

GiNERAL

Power Requirements:
Power Consumption:

Dimensions:

Weight:

flFEILSEClM
Continuous RMS
Power Output:
(less than 0.04% THD,
both channels driven
simultaneously]

Power Bandwidth
IIHFI:

Harmonic Distortion:

AEP Model
UK Model

U

QUARTZ

FM STEREO/FM-AM RECEIVER

SPECIFICATIONS

220 V ac, 50/50 Hz (AEP model)
240 V ac, 50/60 Hz (UK model)
180 w lAEP model)
210W (UK model)
Approx. 430 (w) X 135 lhl x 380 (d) mm
17 (w) x 5 VA (h) x 14% (d) inches
including projecting parts and controls
Approx. 85 kg, 18 lb 12 02 (net)
9,7 kg, 21 lb 7 oz (in shipping carton)

At 1 kHz
40 + 40 W (8 D)
At 20 Hz 7 20 kHz
40 + 40 W (8 n)
According to DIN 45500
40 + 40 W (8 Q)

5 Hz - 35 kHz
Less than 0.04 % at rated output

SAFETY RELATED COMPONENT WARNING

COMPONENTS IDENTIFIED 8V SHADING AND MARK

i. ON THE SCHEMATIC DIAGRAMS,

EXPLODED

VIEWS AND IN THE PARTS LIST ARE CRITICAL TO

SAFE OPERATION,

REPLACE THESE COMPONENTS

WITH SONY PARTS WHOSE PART NUMBERS APPEAR

AS SHOWN

lN 1{HIS MANUAL OR IN SUPPLEMENTS

PUBLISHED BY SONY

lntermodulation (IMI
Distortion:

(SOHZ : 7kHz =4: 1)
Damping Factor: 50 at 1 kHz, 8 :2
Dynamic Headroom: 1.4 dB

Residual Noise:

Less than 0.04 % at rated output

Less than 0.23 mV at 8 n

Inputs:

Sensitivity Impedance S/N VESSEL?
PHONO (355311;) 50 m :3 33* A
1' 37 353371325) 5° W 3133* A
AUX 2:)?3T5VdBI | 50 kSZ 3: 32* A

* '78 IHF, Measured with rated output power into 8 Q loads

lboth channels driven simultaneously) at 1 kHz.

- Continued on page 2 *

SONY

SERVICE MANUAL
