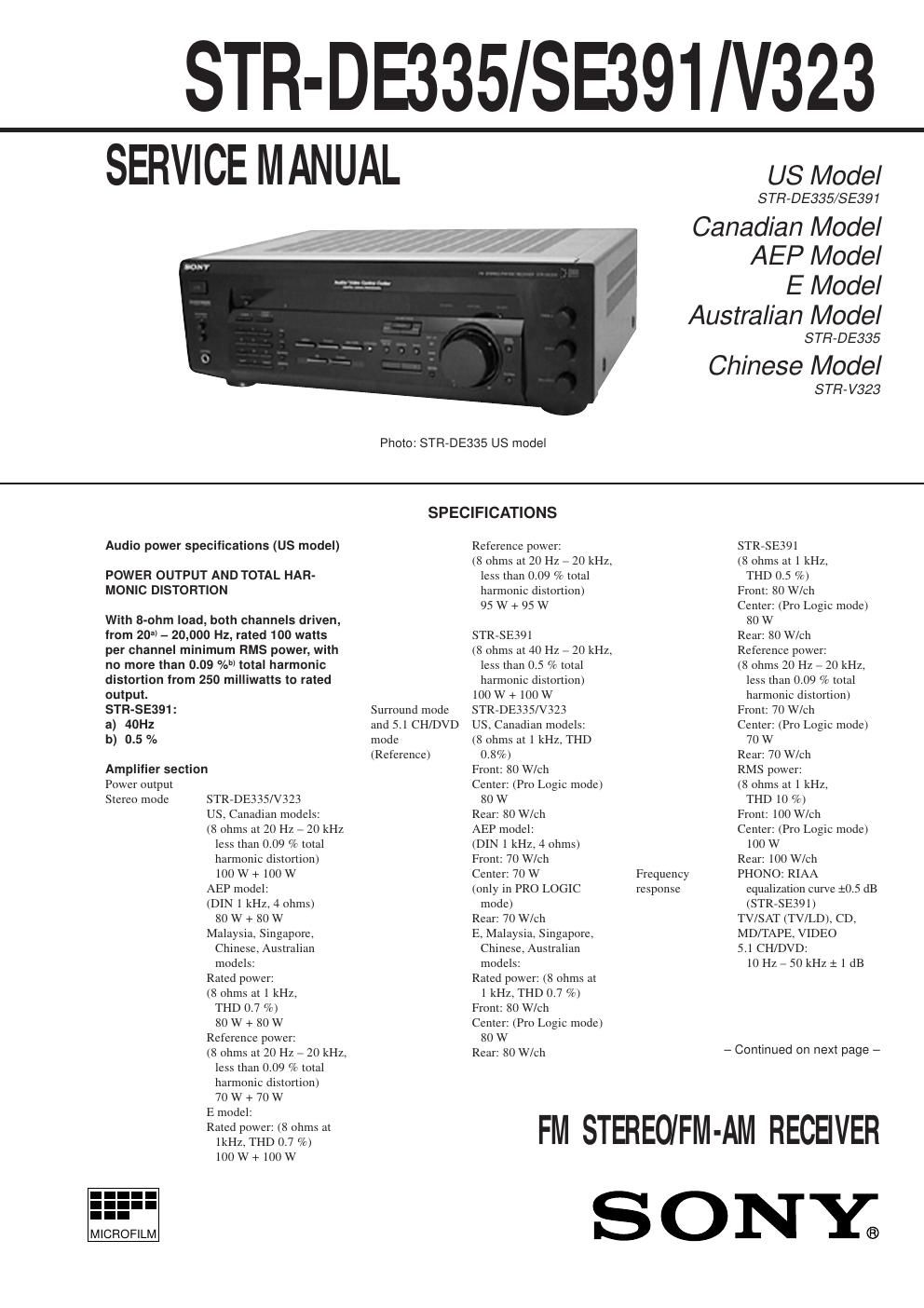

Inputs
Sensitivity Impedance S/N
PHONO
(STR- 4 mV50
70 dB
SE391)kilohms
CD,
5.1 CH/ 150 mV
DVD, (AEP model)
50
MD/TAPE, 250 mV
kilohms80 dB
TV/SAT, (EXCEPT
(TV/LD) AEP models)
VIDEO
Outputs MD/TAPE REC OUT:
Voltage: 150 mV, (US, AEP
models)
Voltage: 250 mV,
(Canadian, E, Malaysia,
Singapore, Australian and
Chinese models)
Impedance: 10 kilohms
VIDEO AUDIO OUT:
Voltage: 150 mV, (US,
AEP models)
Voltage: 250 mV,
(Canadian, E, Malaysia
Singapore, Australian and
Chinese models)
Impedance: 10 kilohms
WOOFER:
Voltage: 2V
Impedance: 1 kilohms
PHONES: Accepts low and
high impedance
headphones
Muting Full mute
BASS BOOST + 10 dB at 70 Hz
TONE ± 8 dB at 100 Hz and
10 kHz
Tuner Section
FM stereo, FM/AM superheterodyne tuner
FM tuner section
Tuning range 87.5 Ð 108.0 MHz
Antenna terminals 75 ohms, unbalanced
Intermediate 10.7 MHz
frequency
Sensitivity Mono: 18.3 dBf, 2.2 mV/75
ohms
Stereo: 38.3 dBf, 22.5 mV/75
ohms
(AEP model)
Mono: 18.3 dBf, 4.5 mV
Stereo: 38.3 dBf, 45 mV
(EXCEPT AEP models)
Usable sensitivity 11.2 dBf, 2 mV (IHF) (US
model)
11.2 dBf, 1 mV/75 ohms
(IHF)
(AEP model)
11.2 dBf, 1 mV (IHF)
(EXCEPT US, AEP
models)
S/N Mono: 76 dB
Stereo: 70 dB
Harmonic Mono: 0.3 %
distortion at Stereo: 0.5 %
1 kHz
Separation 45 dB at 1kHz
Frequency 30 Hz Ð 15 kHz dB
response
Selectivity 60 dB at 400 kHzAM tuner section
Tuning range AEP, Malaysia, Singapore,
Australian and Chinese
model:
531 Ð 1602 kHz (9 kHz step)
US model:
530 Ð 1710 kHz (10kHz
step)
**
531 Ð 1710 kHz (9 kHz step)
Canadian, E models:
530 Ð 1610 kHz (10kHz
step)
**
531 Ð 1602 kHz (9 kHz step)
Antenna Loop antenna
Intermediate 450 kHz
frequency
Usable sensitivity 50 dB/m (at 1,000kHz or
999 kHz) (US model)
50 dB/m (at 999 kHz)
(EXCEPT US models)
S/N 54 dB (at 50 mV/m)
Harmonic 0.5 % (50 mV/m, 400Hz)
distortion
Selectivity At 9 kHz: 35 dB
At 10 kHz: 40 dB
** You can change the AM tuning interval be-
tween 9 kHz and 10 kHz. Turn off the re-
ceiver and press 1/u (power) for more than
4 seconds until ÒINITIALÓ appears.
1) After tuning in any AM station, turn off
the receiver.
2) Hold down PRESET TUNING + button
and press the 1/u (power)
button. Ò9k
STEPÓ appears.
To change to 10k Step, repeat step 1 and 2 until
Ò10k STEPÓ appears. Note that all preset
stations, index names and sound field are
cleared after you make the procedure above.
Video section (STR-DE335/V323)
Inputs VIDEO, TV/SAT (TV/LD),
5.1 CH/DVD:
1 Vp-p 75 ohms
Output VIDEO, MONITOR:
1 Vp-p 75 ohms
General
System Tuner section:
PLL quartz-locked digital
synthesizer system
Preamplifier section:
Low-noise NF type
equalizer
Power amplifier section:
Pure-complementary
SEPP
Power US, Canadian models:
requirements 120 V AC, 60 Hz
Australian model:
240 V AC, 50 Hz
AEP, Malaysia, Singapore
and Chinese models:
230 V AC, 50/60 Hz
E model
120/220/240 V AC, 50/60 Hz
Power US model: 230 W
consumption Canadian model:
325 VA
AEP model: 225 W
Malaysia, Singapore and
Australian and Chinese
models:
235 W
E model
245 W
+0.5
Ð2
AC outlets STR-DE335
US, Canadian models:
1 switched, 120 W/1A max
STR-DE335
AEP, E, Malaysia,
Singapore, Australian
models:
STR-V323
1 switched, 100 W max
STR-SE391
2 switched, total 120 W/1A
max
Dimensions 430 ´ 144 ´ 306 mm
Mass (Approx.) STR-DE335: US model
8.7 kg
STR-DE335: AEP model
7.7 kg
EXCEPT DE335: US, AEP
models
8.8 kg
Supplied FM wire antenna (1)
accessories AM loop antenna (1)
Remote commander
(remote) (1)
Size AA (R6) batteries (2)
The specification measured is under
¥ 230 AC, 50Hz condition (AEP, Malaysia,
Singapore and Chinese models)
¥ 240 AC, 50Hz condition (Australian model)
Design and specifications are subject to change
without notice.
