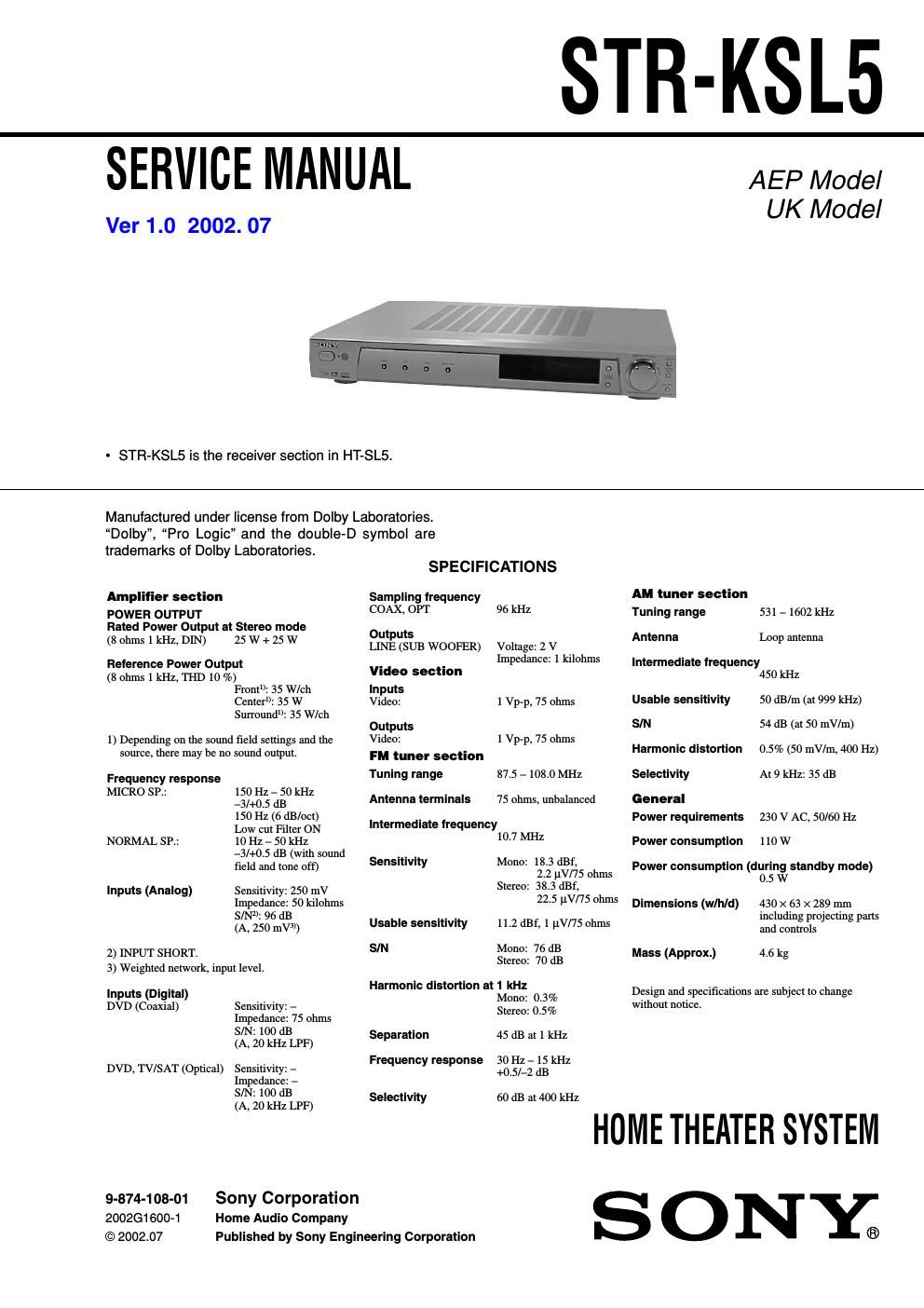

Sony str ksl 5 service manual

Page 1

2 STR-KSL5 SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. 1. GENERAL ·········································································· 3 2. TEST MODE ······································································ 4 3. DIAGRAMS ········································································ 6 3-1. Block Diagrams -“ Main Section -“ ··························································· 7 -“ Display/Power Section -“ ············································ 8 3-2. Printed Wiring Board -“ Digital Section -“ ····················· 9 3-3. Schematic Diagram -“ Digital Section (1/2) -“ ············· 10 3-4. Schematic Diagram -“ Digital Section (2/2) -“ ············· 11 3-5. Printed Wiring Board -“ AMP Section -“ ······················ 12 3-6. Schematic Diagram -“ AMP Section -“ ························· 13 3-7. Printed Wiring Board -“ Input Section -“ ······················ 14 3-8. Schematic Diagram -“ Input Section -“ ························· 15 3-9. Printed Wiring Board -“ Video Section -“ ····················· 16 3-10. Schematic Diagram -“ Video Section -“ ······················· 17 3-11. Printed Wiring Board -“ Display Section -“ ·················· 18 3-12. Schematic Diagram -“ Display Section -“ ···················· 19 3-13. Printed Wiring Board -“ Power Section -“ ···················· 20 3-14. Schematic Diagram -“ Power Section -“ ······················· 21 3-15. IC Block Diagram ······················································· 22 3-16. IC Pin Function Descriptions ······································ 23 4. EXPLODED VIEWS 4-1. Front Panel Section ····················································· 27 4-2. Chassis Section ···························································· 28 5. ELECTRICAL PARTS LIST ······································· 29 Unleaded solder Boards requiring use of unleaded solder are printed with the lead- free mark (LF) indicating the solder contains no lead. (Caution: Some printed circuit boards may not come printed with the lead free mark due to their particular size.) : LEAD FREE MARK Unleaded solder has the following characteristics. -Unleaded solder melts at a temperature about 40°C higher than ordinary solder. Ordinary soldering irons can be used but the iron tip has to be applied to the solder joint for a slightly longer time. Soldering irons using a temperature regulator should be set to about 350°C. Caution: The printed pattern (copper foil) may peel away if the heated tip is applied for too long, so be careful! -Strong viscosity Unleaded solder is more viscous (sticky, less prone to flow) than ordinary solder so use caution not to let solder bridges occur such as on IC pins, etc. -Usable with ordinary solder It is best to use only unleaded solder but unleaded solder may also be added to ordinary solder. Notes on chip component replacement -Never reuse a disconnected chip component. -Notice that the minus side of a tantalum capacitor may be damaged by heat. TABLE OF CONTENTS

Page 2

3 STR-KSL5 SECTION 1 GENERAL This section is extracted from instruction manual. Display7 (20) DVD4 (17) IR receptor 2 MASTER VOLUME 9 (17) MUTINGqs (17) PLIIq; (19) PRESET TUNING +/-“ 8 (24) SOUND FIELD qa (18, 21) TUNER6 (17, 23, 24) TV/SAT5 (17) VIDEO3 (17) ?/1 (power) 1 (12, 16, 17, 22) Parts Identification Main unit The items are arranged in alphabetical order. Refer to the pages indicated in parentheses ( ) for details. 1 2 3 4 5 6 7 9 q; qs qa 8
