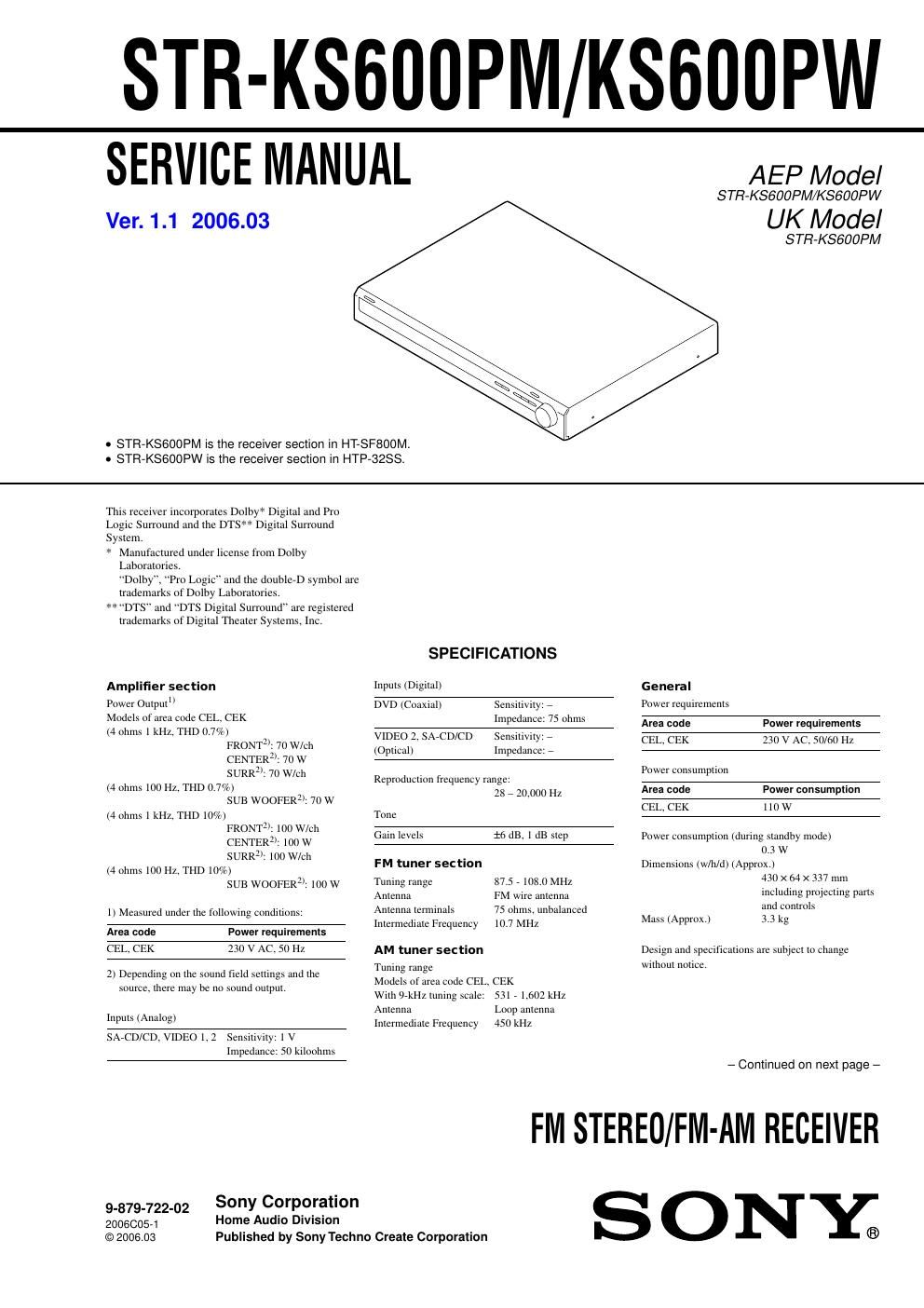

Sony str ks 600pm ks 600pw

Page 1

2 STR-KS600PM/KS600PW TABLE OF CONTENTS 1. SERVICING NOTES ............................................... 3 2. GENERAL ................................................................... 4 3. DISASSEMBLY 3-1. Disassembly Flow ........................................................... 6 3-2. Case ........................................................................\ ......... 6 3-3. Front Panel Assy .............................................................. 7 3-4. SMPS Board .................................................................... 7 3-5. LINE FILTER Board ....................................................... 8 3-6. D-AMP Board ................................................................. 8 3-7. DIGITAL Board .............................................................. 9 4. TEST MODE .............................................................. 9 5. DIAGRAMS 5-1. Block Diagram -“ DSP Section -“ ..................................... 10 5-2. Block Diagram -“ AUDIO OUT Section -“ ....................... 11 5-3. Block Diagram -“ DISPLAY, POWER SUPPLY Section -“ ....................... 12 5-4. Printed Wiring Board -“ DIGITAL Board (Component Side) -“ .......................... 14 5-5. Printed Wiring Board -“ DIGITAL Board (Conductor Side) -“ ............................ 15 5-6. Schematic Diagram -“ DIGITAL Board (1/3) -“ ............... 16 5-7. Schematic Diagram -“ DIGITAL Board (2/3) -“ ............... 17 5-8. Schematic Diagram -“ DIGITAL Board (3/3) -“ ............... 18 5-9. Printed Wiring Board -“ D-AMP Board (Component Side) -“ ............................. 20 5-10. Printed Wiring Board -“ D-AMP Board (Conductor Side) -“ ............................... 21 5-11. Schematic Diagram -“ D-AMP Board (1/2) -“ .................. 22 5-12. Schematic Diagram -“ D-AMP Board (2/2) -“ .................. 23 5-13. Printed Wiring Boards -“ DISPLAY Section -“ ................. 24 5-14. Schematic Diagram -“ DISPLAY Section -“ ..................... 25 5-15. Printed Wiring Board -“ SPEAKER OUT, POWER SUPPLY Section (1/2) -“ ... 26 5-16. Printed Wiring Boards -“ SPEAKER OUT, POWER SUPPLY Section (2/2) -“ ... 27 5-17. Schematic Diagram -“ SPEAKER OUT, POWER SUPPLY Section -“ ............ 28 6. EXPLODED VIEWS 6-1. Cover Section .................................................................. 40 6-2. Chassis Block .................................................................. 41 7. ELECTRICAL PARTS LIST ................................ 42 Notes on chip component replacement - Never reuse a disconnected chip component. - Notice that the minus side of a tantalum capacitor may be damaged by heat. SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PA RT NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. A bout area codes The area code of the receiver you purchased is shown on the lower portion of the rear panel (see the illustration below). Any differences in operation, according to the area c ode, are clearly indicated in the text, for example, Model s of area code AA only. FRONT R-“ + CENTER-“ + FRONT L-“ + SURR R+ -“ SUBWOOFER+ -“ SURR L+ -“ 2-XXX-XXX-XX AA Area code

Page 2

3 STR-KS600PM/KS600PW SECTION 1 SERVICING NOTES NOTES ON REPLACEMENT OF THE DIGITAL BOARD New part of EEPROM (IC1131) on the DIGITAL board cannot be used. Therefore, if the mounted DIGITAL board (A-1097-941-A) is replaced, exchange new microcomputer and new EEPROM with that used before the replacement. UNLEADED SOLDER Boards requiring use of unleaded solder are printed with the lead- free mark (LF) indicating the solder contains no lead. (Caution: Some printed circuit boards may not come printed with the lead free mark due to their particular size) : LEAD FREE MARK Unleaded solder has the following characteristics. - Unleaded solder melts at a temperature about 40 °C higher than ordinary solder. Ordinary soldering irons can be used but the iron tip has to be applied to the solder joint for a slightly longer time. Soldering irons using a temperature regulator should be set to about 350 °C. Caution: The printed pattern (copper foil) may peel away if the heated tip is applied for too long, so be careful! - Strong viscosity Unleaded solder is more viscou-s (sticky, less prone to flow) than ordinary solder so use caution not to let solder bridges occur such as on IC pins, etc. - Usable with ordinary solder It is best to use only unleaded solder but unleaded solder may also be added to ordinary solder.
