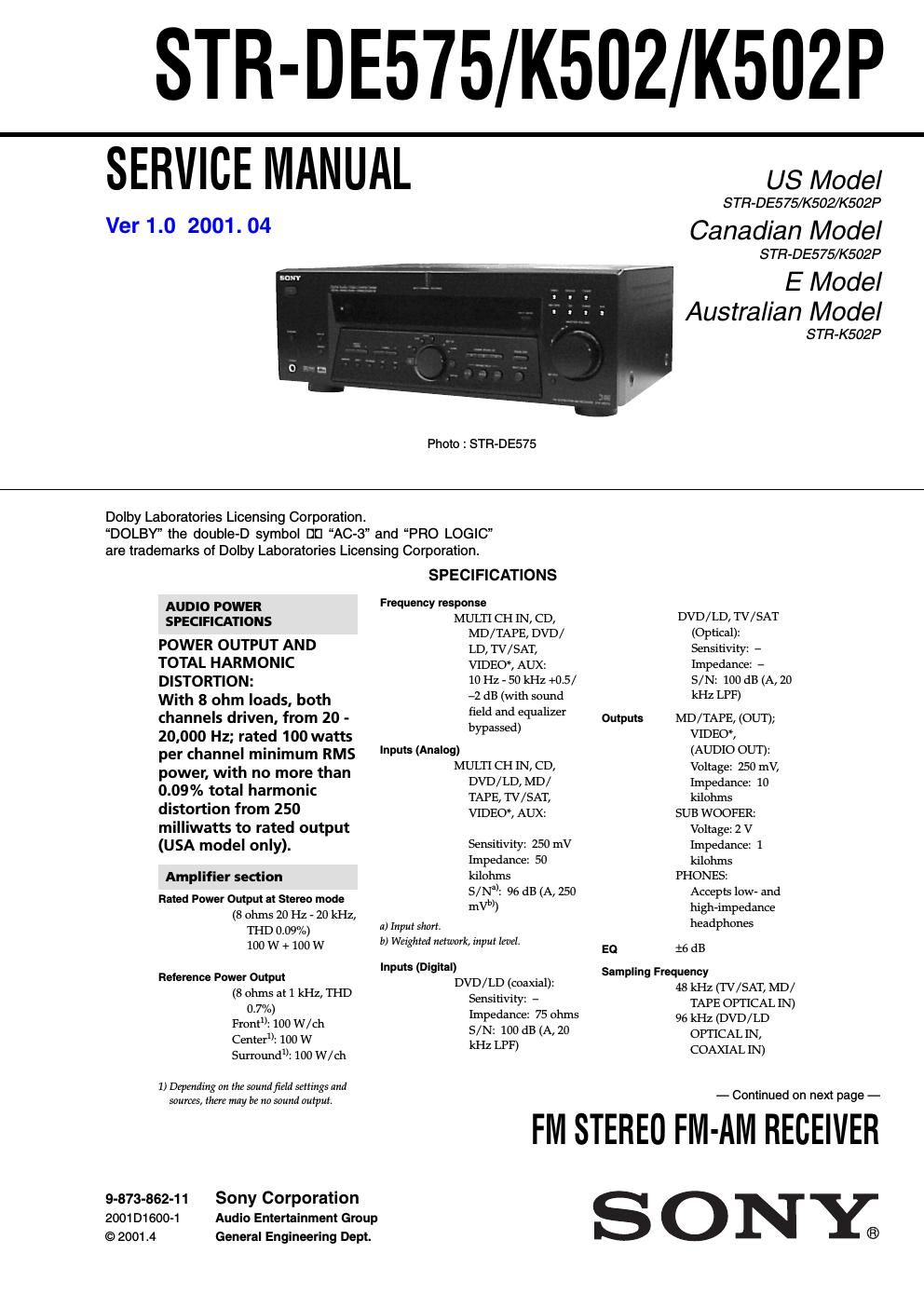

Page 1
2
STR-DE575/K502/K502P
0.5 % (50 mV/m, 400
kHz)
At 9 kHz: 35 dB
At 10 kHz: 40 dB
c) You can change the AM tuning interval to 9
kHz. After tuning in any AM station, turn
off the receiver. Hold down the TUNING +
button and press the ?/1 button. All preset
stations will be erased when you change the
tuning interval. To reset the scale to 10 kHz,
repeat the procedure.
Video section
Video: 1 Vp-p 75 ohms
S-video***:
Y: 1 Vp-p 75 ohms
C: 0.286 Vp-p 75 ohms
Video: 1 Vp-p 75 ohms
S-video***:
Y: 1 Vp-p 75 ohms
C: 0.286 Vp-p 75 ohms
General
Tuner section:
PLL quartz-locked
digital synthesizer
system
Preamplifier section:
Low-noise NF type
equalizer
Power amplifier
section:
Pure-complementary
SEPP
FM tuner section
87.5 - 108.0 MHz
75 ohms, unbalanced
10.7 MHz
Mono: 18.3 dBf,
2.2 µV/75 ohms
Stereo: 38.3 dBf
22.5 µV/75 ohms
11.2 dBf, 1 µV/75 ohms
Mono: 76 dB
Stereo: 70 dB
Mono: 0.3%
Stereo: 0.5%
45 dB at 1 kHz
30 Hz - 15 kHz +0.5/-“2
dB
60 dB at 400 kHz
AM tuner section
With 10-kHz tuning
scale:
530 - 1710 kHz
c)
With 9-kHz tuning
scale:
531 - 1710 kHz
c)
Loop antenna
450 kHz
50 dB/m (at 1,000 kHz
or 999 kHz)54 dB (at 50 mV/m)
120 V AC, 60 Hz
Models of area code U:
220W
In standby condition:
1 W
Models of area code CA:
315 VA
In standby condition:
1 W
1 switched, total
120 W/1A Max
430 × 308.5 × 157.5 mm
(14.5 × 10.4 × 5.3 in.)
including projecting
parts and controls
7.5 kg (16 lbs. 9 oz.)
7.4 kg (16 lbs. 6 oz.)
Design and specifications are subject
to change without notice.-FM wire antenna (1)
-AM loop antenna (1)
-
- STR-DE575 only
- STR-K502 only- Model of area code U only
- Remote commander RM-U305 (remote) (1)
- Model of area code CA only
- Remote commander RM-PP505 (remote) (1)
- Remote commander RM-U305 (remote) (1) R6 (size-AA) batteries (2)
*** STR-DE575 only
Tuning range
Antenna terminals
Intermediate frequency
Sensitivity
Usable sensitivity
S/N
Harmonic distortion at 1 kHz
Separation
Frequency response
Selectivity
Tuning range
Antenna
Intermediate frequency
Usable sensitivityS/N
Harmonic distortion
Selectivity
Inputs
Outputs
SystemSupplied accessories Mass (Approx.) Dimensions AC outlets Power consumption Power requirements
Page 2
3
STR-DE575/K502/K502P
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH
MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS
LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE
COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS
APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS
PUBLISHED BY SONY.
After correcting the original service problem, perform the
following safety checks before releasing the set to the customer:
Check the antenna terminals, metal trim, metallized knobs, screws,
and all other exposed metal parts for AC leakage. Check leakage as
described below.
LEAKAGE
The AC leakage from any exposed metal part to earth ground
and from all exposed metal parts to any exposed metal part having
a return to chassis, must not exceed 0.5 mA (500 microamperes).
Leakage current can be measured by any one of three methods.
1. A commercial leakage tester, such as the Simpson 229 or RCA
WT-540A. Follow the manufacturers instructions to use these
instruments.
2. A battery-operated AC milliammeter. The Data Precision 245
digital multimeter is suitable for this job.
3. Measuring the voltage drop across a resistor by means of a
VOM or battery-operated AC voltmeter. The limit indication
is 0.75 V, so analog meters must have an accurate low-voltage
scale. The Simpson 250 and Sanwa SH-63Trd are examples of
a passive VOM that is suitable. Nearly all battery operated
digital multimeters that have a 2V AC range are suitable. (See
Fig. A)
SAFETY CHECK-OUT
Parts No.
MODEL IDENTIFICATION
- BACK PANEL -
ATTENTION AU COMPOSANT AYANT RAPPORT
Ã- LA SÉCURITÉ!
LES COMPOSANTS IDENTIFÉS PAR UNE MARQUE 0 SUR LES
DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT
CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE
REMPLACER CES COMPOSANTS QUE PAR DES PIÈSES SONY
DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU
DANS LES SUPPÉMENTS PUBLIÉS PAR SONY.
PARTS No.
4-232-240-0s
4-232-240-1s
4-232-240-3s
4-232-240-4s
4-232-240-5s
4-232-240-6s
4-232-240-7s
4-232-240-8s
MODEL
DE575 : US
DE575 : Canadian
K502P : US
K502P : Canadian
K502P : Australian
K502P : Singapore
K502P : Mexican
K502 : US
To Exposed Metal
Parts on Set
0.15 µF
1.5 k-„¦AC
Voltmeter
(0.75 V)
Earth Ground
Fig. A. Using an AC voltmeter to check AC leakage.
