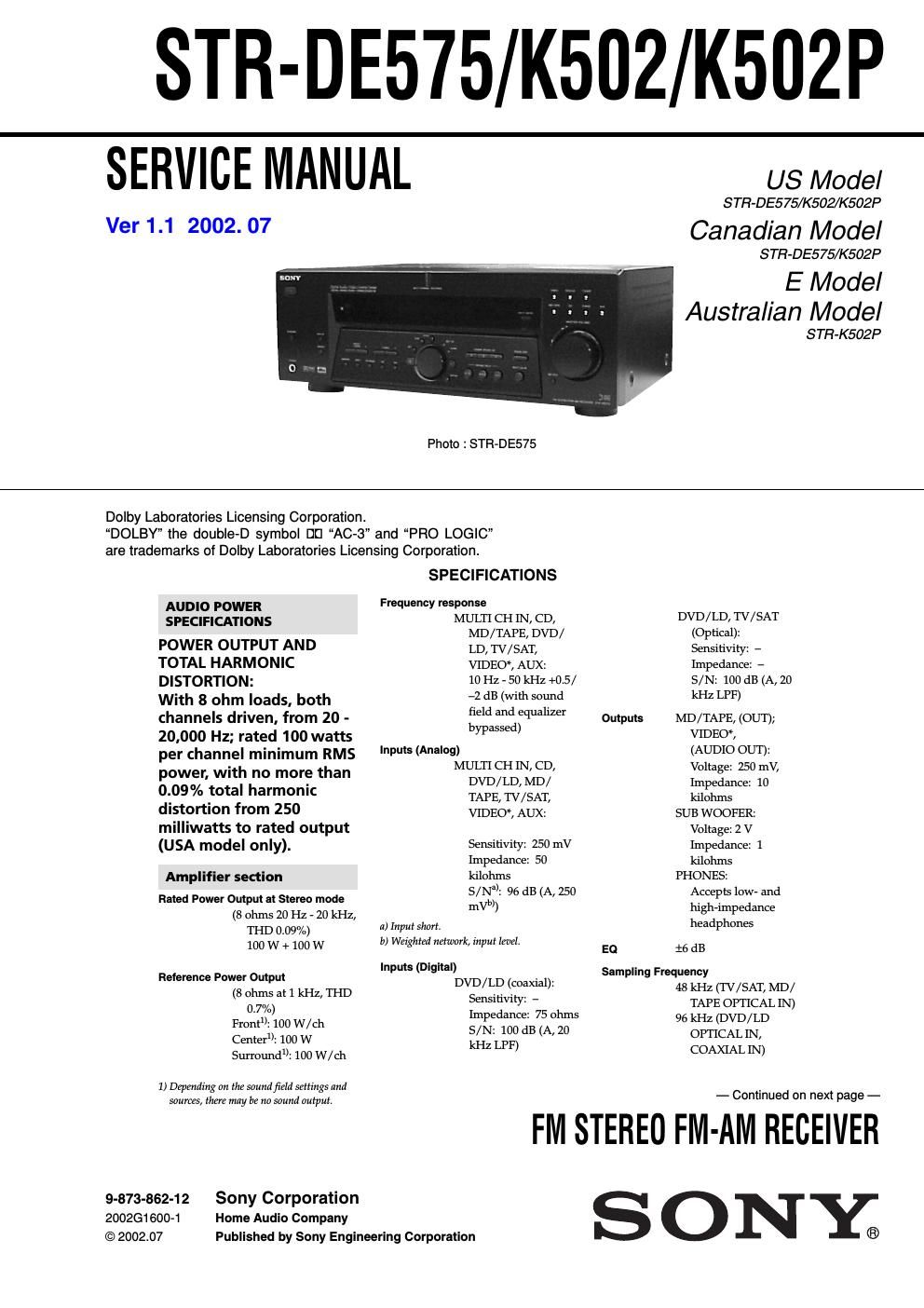

Sony str k 502 p service manual

Page 1

2 STR-DE575/K502/K502P 0.5 % (50 mV/m, 400 kHz) At 9 kHz: 35 dB At 10 kHz: 40 dB c) You can change the AM tuning interval to 9 kHz. After tuning in any AM station, turn off the receiver. Hold down the TUNING + button and press the ?/1 button. All preset stations will be erased when you change the tuning interval. To reset the scale to 10 kHz, repeat the procedure. Video section Video: 1 Vp-p 75 ohms S-video***: Y: 1 Vp-p 75 ohms C: 0.286 Vp-p 75 ohms Video: 1 Vp-p 75 ohms S-video***: Y: 1 Vp-p 75 ohms C: 0.286 Vp-p 75 ohms General Tuner section: PLL quartz-locked digital synthesizer system Preamplifier section: Low-noise NF type equalizer Power amplifier section: Pure-complementary SEPP FM tuner section 87.5 - 108.0 MHz 75 ohms, unbalanced 10.7 MHz Mono: 18.3 dBf, 2.2 µV/75 ohms Stereo: 38.3 dBf 22.5 µV/75 ohms 11.2 dBf, 1 µV/75 ohms Mono: 76 dB Stereo: 70 dB Mono: 0.3% Stereo: 0.5% 45 dB at 1 kHz 30 Hz - 15 kHz +0.5/-“2 dB 60 dB at 400 kHz AM tuner section With 10-kHz tuning scale: 530 - 1710 kHz c) With 9-kHz tuning scale: 531 - 1710 kHz c) Loop antenna 450 kHz 50 dB/m (at 1,000 kHz or 999 kHz)54 dB (at 50 mV/m) 120 V AC, 60 Hz Models of area code U: 220W In standby condition: 1 W Models of area code CA: 315 VA In standby condition: 1 W 1 switched, total 120 W/1A Max 430 × 308.5 × 157.5 mm (14.5 × 10.4 × 5.3 in.) including projecting parts and controls 7.5 kg (16 lbs. 9 oz.) 7.4 kg (16 lbs. 6 oz.) Design and specifications are subject to change without notice.-FM wire antenna (1) -AM loop antenna (1) - - STR-DE575 only - STR-K502 only- Model of area code U only - Remote commander RM-U305 (remote) (1) - Model of area code CA only - Remote commander RM-PP505 (remote) (1) - Remote commander RM-U305 (remote) (1) R6 (size-AA) batteries (2) *** STR-DE575 only Tuning range Antenna terminals Intermediate frequency Sensitivity Usable sensitivity S/N Harmonic distortion at 1 kHz Separation Frequency response Selectivity Tuning range Antenna Intermediate frequency Usable sensitivityS/N Harmonic distortion Selectivity Inputs Outputs SystemSupplied accessories Mass (Approx.) Dimensions AC outlets Power consumption Power requirements

Page 2

3 STR-DE575/K502/K502P SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. After correcting the original service problem, perform the following safety checks before releasing the set to the customer: Check the antenna terminals, metal trim, metallized knobs, screws, and all other exposed metal parts for AC leakage. Check leakage as described below. LEAKAGE The AC leakage from any exposed metal part to earth ground and from all exposed metal parts to any exposed metal part having a return to chassis, must not exceed 0.5 mA (500 microamperes). Leakage current can be measured by any one of three methods. 1. A commercial leakage tester, such as the Simpson 229 or RCA WT-540A. Follow the manufacturers instructions to use these instruments. 2. A battery-operated AC milliammeter. The Data Precision 245 digital multimeter is suitable for this job. 3. Measuring the voltage drop across a resistor by means of a VOM or battery-operated AC voltmeter. The limit indication is 0.75 V, so analog meters must have an accurate low-voltage scale. The Simpson 250 and Sanwa SH-63Trd are examples of a passive VOM that is suitable. Nearly all battery operated digital multimeters that have a 2V AC range are suitable. (See Fig. A) SAFETY CHECK-OUT Parts No. MODEL IDENTIFICATION - BACK PANEL - ATTENTION AU COMPOSANT AYANT RAPPORT Ã- LA SÉCURITÉ! LES COMPOSANTS IDENTIFÉS PAR UNE MARQUE 0 SUR LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE REMPLACER CES COMPOSANTS QUE PAR DES PIÈSES SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU DANS LES SUPPÉMENTS PUBLIÉS PAR SONY. PARTS No. 4-232-240-0s 4-232-240-1s 4-232-240-3s 4-232-240-4s 4-232-240-5s 4-232-240-6s 4-232-240-7s 4-232-240-8s MODEL DE575 : US DE575 : Canadian K502P : US K502P : Canadian K502P : Australian K502P : Singapore K502P : Mexican K502 : US To Exposed Metal Parts on Set 0.15 µF 1.5 k-„¦AC Voltmeter (0.75 V) Earth Ground Fig. A. Using an AC voltmeter to check AC leakage.
